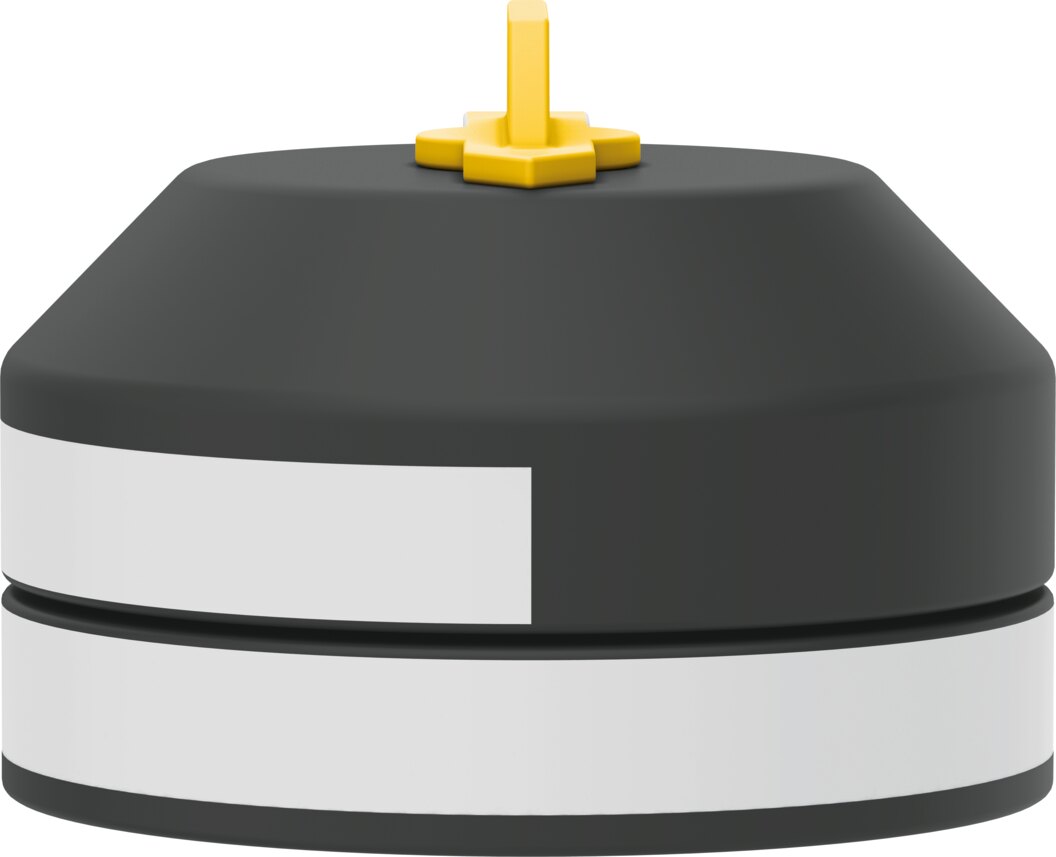

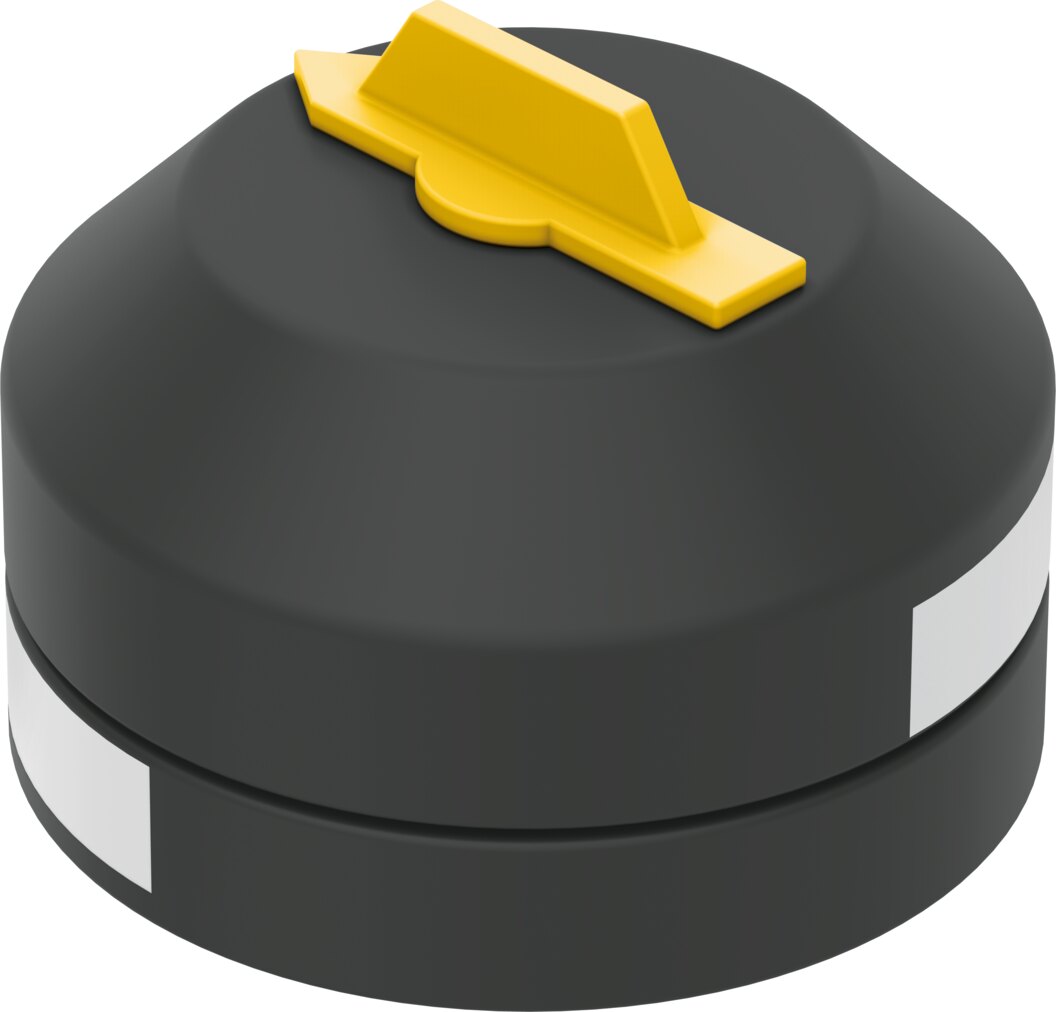

Position indicator PP, high-alloy stainless steel SASF-S2-B-V-A20 - Festo 8140395
Makes the actuator position visible on site from the outside. Festo position indicator SASF-S2-B-V-A20 comes with housing made of PP, high-alloy stainless steel and ambient temperature -25 to 70 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Festo position indicator SASF-S2-B-V-A20: housing made of PP, high-alloy stainless steel, plus ambient temperature -25 to 70 °C. Makes the actuator position visible on site from the outside.
Benefits
- Housing made of PP, high-alloy stainless steel
- Ambient temperature -25 to 70 °C
- LABS (PWIS) conformity VDMA24364 zone III
Applications
For limit switch boxes and quarter-turn actuators where the position must be readable on site. For replacements, compare the order code SASF-S2-B-V-A20 with the installed part.
Technical data
| Feature | Value |
|---|---|
| Type | SASF-S2-B-V-A20 |
| Festo part number | 8140395 |
| Swivel angle adjustment range | 0 to 360° |
| Additional functions | adjustable actuating lug |
| Dimensions W x L x H | Ø 65 x 48.5 |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Ambient temperature | -25 to 70 °C |
| Product weight | 96 g |
| Type of mounting | to VDI/VDE 3845 |
| Housing colour | black |
| Note on materials | RoHS compliant |
| Material spacer | PA |
| Material housing | PP, high-alloy stainless steel |
| Material screws | high-alloy stainless steel |
| Weight | 0.08 kg |
| Manufacturer | Festo |
| Hersteller-Nr | SASF-S2-B-V-A20 |
| EAN | 4052568568573 |
| Zolltarifnummer | 85389099 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Colour | Black |
| Series | SASF |
| Temperature (max.) | 70 |
