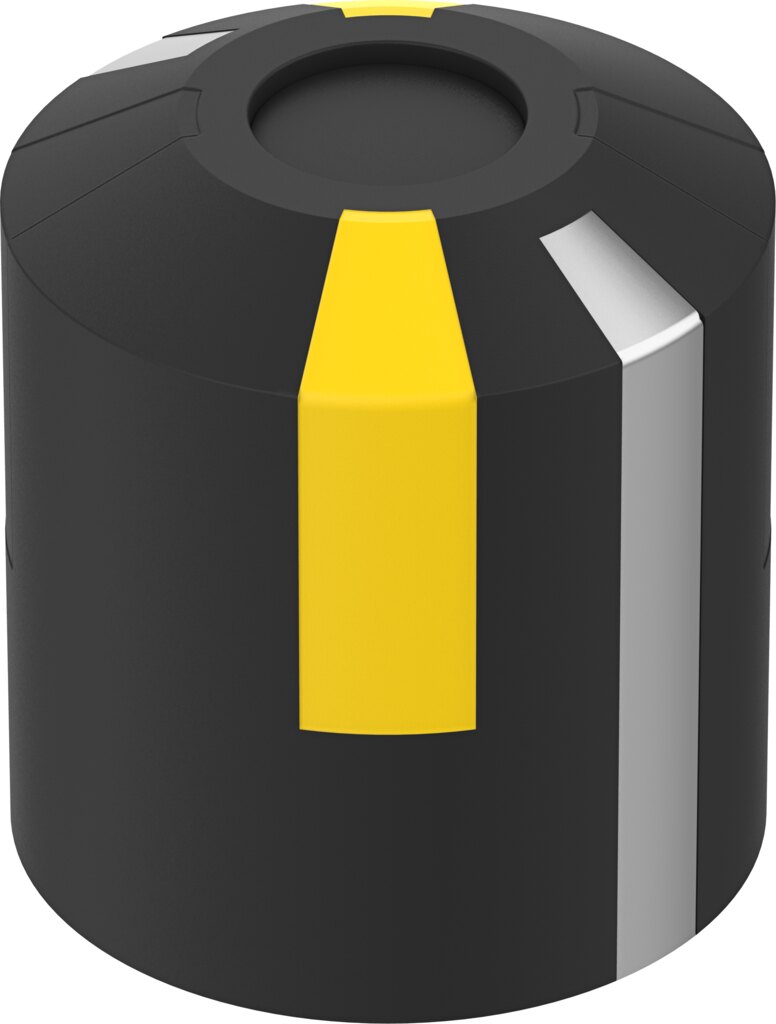

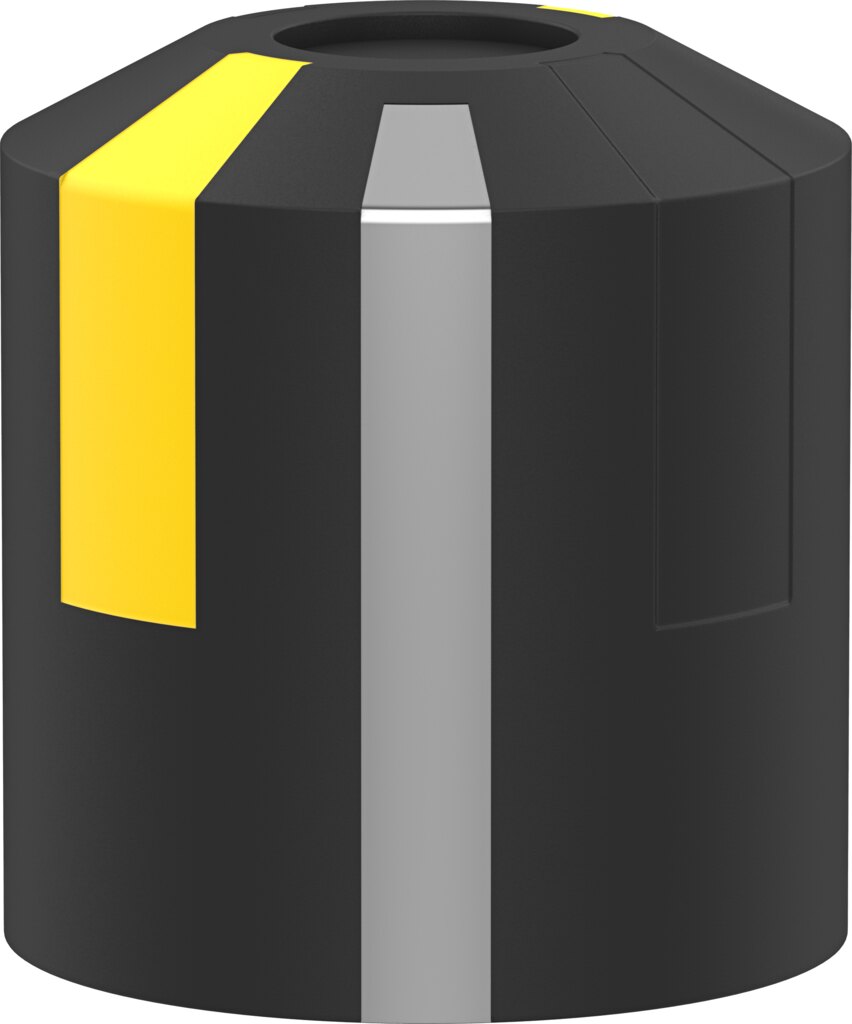

Position indicator PP, high-alloy stainless steel SASF-S3-B-F-A30 - Festo 8140397
Makes the actuator position visible on site from the outside. The Festo position indicator SASF-S3-B-F-A30 comes with housing made of PP, high-alloy stainless steel and operating range -25 to 70 °C ambient temperature.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Makes the actuator position visible on site from the outside. The Festo position indicator SASF-S3-B-F-A30 offers housing made of PP, high-alloy stainless steel as well as operating range -25 to 70 °C ambient temperature.
Benefits
- Housing made of PP, high-alloy stainless steel
- Operating range -25 to 70 °C ambient temperature
- LABS (PWIS) conformity VDMA24364 zone III
Applications
For limit switch boxes and quarter-turn actuators where the position must be readable on site. For replacements, compare the order code SASF-S3-B-F-A30 with the installed part.
Technical data
| Feature | Value |
|---|---|
| Type | SASF-S3-B-F-A30 |
| Festo part number | 8140397 |
| Swivel angle adjustment range | 0 to 180° |
| Interface for positioner and position feedback to standard | VDI/VDE 3845 size AA 2 |
| Dimensions W x L x H | Ø 40 x 43 |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Ambient temperature | -25 to 70 °C |
| Product weight | 26 g |
| Type of mounting | to VDI/VDE 3845 |
| Housing colour | black |
| Note on materials | RoHS compliant |
| Material spacer | PP |
| Material housing | PP, high-alloy stainless steel |
| Material screws | high-alloy stainless steel |
| Weight | 0.026 kg |
| Manufacturer | Festo |
| Hersteller-Nr | SASF-S3-B-F-A30 |
| EAN | 4052568568641 |
| Zolltarifnummer | 85389099 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Colour | Black |
| Series | SASF |
| Temperature (max.) | 70 |
