Diffuse sensor push-pull PNP/NPN range 2 to 1000 mm SOOE-DS-R-PNLK-T - Festo 8075663
Scans objects directly and works without a separate reflector. The Festo diffuse sensor SOOE-DS-R-PNLK-T comes with operating range 2 to 1000 mm, set via IO-Link, potentiometer, teach-in and switching output push-pull, switching function switchable, PNP light switching, NPN dark switching.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Festo diffuse sensor SOOE-DS-R-PNLK-T: operating range 2 to 1000 mm, set via IO-Link, potentiometer, teach-in, plus switching output push-pull, switching function switchable, PNP light switching, NPN dark switching. Scans objects directly and works without a separate reflector.
Benefits
- Operating range 2 to 1000 mm, set via IO-Link, potentiometer, teach-in
- Switching output push-pull, switching function switchable, PNP light switching, NPN dark switching
- Switching frequency up to 1000 Hz
- Light type red, LED, light spot max. 65 mm at sensing distance 1000 mm
- IO-Link Device V 1.1 for parameterisation and diagnostics
- Degree of protection IP65, IP67, IP69K for harsh industrial environments
Applications
Typical tasks are presence checks, counting and positioning on conveyors, in assembly and in packaging. For replacements, compare the order code SOOE-DS-R-PNLK-T with the installed part.
Technical data
| Feature | Value |
|---|---|
| Type | SOOE-DS-R-PNLK-T |
| Festo part number | 8075663 |
| Design | block design |
| Conforms to standard | EN 60947-5-2 |
| Certification | RCM mark, c UL us - Listed (OL) |
| CE marking (see declaration of conformity) | to EU EMC Directive, to EU RoHS Directive |
| UKCA marking (see declaration of conformity) | to UK RoHS regulations |
| Certificate issuing authority | UL E232949 |
| Note on materials | RoHS compliant |
| Measuring principle | optoelectronic |
| Detection method | diffuse sensor |
| Type of light | red, LED |
| Max. light spot | 65 mm at sensing distance 1000 mm |
| Operating range | 2 to 1000 mm |
| Ambient temperature | -40 to 60 °C |
| Reference material | standard white 90%, 100x100 mm |
| Switching output | push-pull |
| Switching element function | switchable, PNP light switching, NPN dark switching |
| Hysteresis | 200 mm |
| Max. switching frequency | 1000 Hz |
| Max. output current | 100 mA |
| Voltage drop | 0 to 1.5 V |
| Timer function | via IO-Link |
| Short-circuit protection | pulsed |
| Protocol | IO-Link |
| IO-Link, protocol version | Device V 1.1 |
| IO-Link, communication mode | COM2 (38.4 kBaud) |
| IO-Link, SIO mode support | yes |
| IO-Link, port class | A |
| IO-Link, process data width OUT | 2 bit |
| IO-Link, process data content OUT | 1 bit (emitter disable), 1 bit (Hold) |
| IO-Link, process data width IN | 1 bit |
| IO-Link, process data content IN | 1 bit SSC (Switching Signal) |
| IO-Link, minimum cycle time | 2.3 ms |
| IO-Link, data storage required | 2000 byte |
| Operating voltage range DC | 10 to 30 V |
| Residual ripple | 10 % |
| No-load supply current | 25 mA |
| Reverse polarity protection | for all electrical connections |

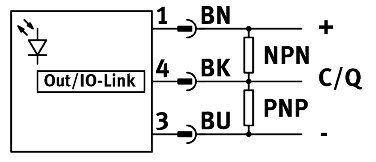

| Electrical connection 1, connection type | plug |
| Electrical connection 1, connection technology | M8x1, A-coded to EN 61076-2-104 |
| Electrical connection 1, number of pins/wires | 3 |
| Electrical connection 1, type of mounting | snap-in lock, screw-type lock, not rotatable |
| Electrical connection 1, compatible type of mounting | compatible with snap-in lock, compatible with rotatable screw-type lock |
| Material plug contacts | brass, gold-plated |
| Type of mounting | via through-hole for M3 screw |
| Tightening torque | 0.8 Nm |
| Mounting position | any |
| Product weight | 10 g |
| Material housing | PC, PMMA |
| Ready status indication | LED green |
| Switching status indication | LED yellow |
| Setting options | IO-Link, potentiometer, teach-in |
| Setting range lower limit | 75 mm |
| Setting range upper limit | 1000 mm |
| Degree of protection | IP65, IP67, IP69K |
| Insulation voltage | 500 V |
| Surge immunity | 1 kV |
| Corrosion resistance class CRC | 1 - low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Pollution degree | 3 |
| Weight | 0.02 kg |
| Manufacturer | Festo |
| Hersteller-Nr | SOOE-DS-R-PNLK-T |
| EAN | 4052568446352 |
| Zolltarifnummer | 85365019 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Bauform | Blockbauweise |
| Norm | DIN EN 60947-5-2 |
| Protection rating | IP65 |
| Temperaturbereich | -40-60 °C |
| Temperature (max.) | 60 |
