Diffuse sensor push-pull PNP/NPN range 5 to 350 mm SOOE-BS-R-PNLK-T - Festo 8075664

Festo ✓ Original product Brand new

Festo diffuse sensor SOOE-BS-R-PNLK-T comes with operating range 5 to 350 mm, set via IO-Link, potentiometer, teach-in and switching output push-pull, switching function switchable, PNP light switching, NPN dark switching.

Net
€113.62
excl. VAT
Item FES-8075664
Manufacturer no. SOOE-BS-R-PNLK-T
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Operating range 5 to 350 mm, set via IO-Link, potentiometer, teach-in and switching output push-pull, switching function switchable, PNP light switching, NPN dark switching: these are the key data of the Festo diffuse sensor SOOE-BS-R-PNLK-T. Scans objects directly and works without a separate reflector. Background suppression ignores interference behind the object.

Benefits

  • Operating range 5 to 350 mm, set via IO-Link, potentiometer, teach-in
  • Switching output push-pull, switching function switchable, PNP light switching, NPN dark switching
  • Switching frequency up to 500 Hz
  • Light type red, LED, light spot max. 20 mm at sensing distance 350 mm
  • IO-Link Device V 1.1 for parameterisation and diagnostics
  • Degree of protection IP65, IP67, IP69K, dust-tight and protected against water jets

Applications

Typical tasks are presence checks, counting and positioning on conveyors, in assembly and in packaging. For replacements, compare the order code SOOE-BS-R-PNLK-T with the installed part.

Technical data

FeatureValue
TypeSOOE-BS-R-PNLK-T
Festo part number8075664
Designblock design
Conforms to standardEN 60947-5-2
CertificationRCM mark, c UL us - Listed (OL)
CE marking (see declaration of conformity)to EU EMC Directive, to EU RoHS Directive
UKCA marking (see declaration of conformity)to UK RoHS regulations
Certificate issuing authorityUL E232949
Note on materialsRoHS compliant
Measuring principleoptoelectronic
Detection methoddiffuse sensor with background suppression
Type of lightred, LED
Max. light spot20 mm at sensing distance 350 mm
Minimum object diameter10 mm
Operating range5 to 350 mm
Ambient temperature-40 to 60 °C
Max. black-white difference15 %
Reference materialstandard white 90%, 100x100 mm
Switching outputpush-pull
Switching element functionswitchable, PNP light switching, NPN dark switching
Hysteresis21 mm
Max. switching frequency500 Hz
Max. output current100 mA
Voltage drop0 to 1.5 V
Timer functionvia IO-Link
Short-circuit protectionpulsed
ProtocolIO-Link
IO-Link, protocol versionDevice V 1.1
IO-Link, profileSmart Sensor Profile
IO-Link, function classesprocess data variable (PDV), identification, diagnostics, teach channel, switching signal channel (SSC)
IO-Link, communication modeCOM2 (38.4 kBaud)
IO-Link, SIO mode supportyes
IO-Link, port classA
IO-Link, process data width OUT2 bit
IO-Link, process data content OUT1 bit (emitter disable), 1 bit (Hold)
IO-Link, process data width IN1 bit
IO-Link, process data content IN1 bit SSC (Switching Signal)
IO-Link, minimum cycle time2.3 ms
IO-Link, data storage required2000 byte
Operating voltage range DC10 to 30 V
Residual ripple10 %
No-load supply current25 mA
Reverse polarity protectionfor all electrical connections

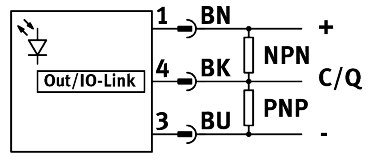

Electrical connection 1, connection typeplug
Electrical connection 1, connection technologyM8x1, A-coded to EN 61076-2-104
Electrical connection 1, number of pins/wires3
Electrical connection 1, type of mountingscrew-type lock
Material plug contactsbrass, gold-plated
Type of mountingvia through-hole for M3 screw
Tightening torque0.8 Nm
Mounting positionany
Product weight10 g
Material housingPC, PMMA
Ready status indicationLED green
Switching status indicationLED yellow
Setting optionsIO-Link, potentiometer, teach-in
Setting range lower limit25 mm
Setting range upper limit350 mm
Degree of protectionIP65, IP67, IP69K
Insulation voltage500 V
Surge immunity1 kV
Corrosion resistance class CRC1 - low corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Pollution degree3
Weight0.02 kg
ManufacturerFesto
Hersteller-NrSOOE-BS-R-PNLK-T
EAN4052568446369
Zolltarifnummer85365019
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
BauformBlockbauweise
NormDIN EN 60947-5-2
Protection ratingIP65
Temperaturbereich-40-60 °C
Temperature (max.)60
