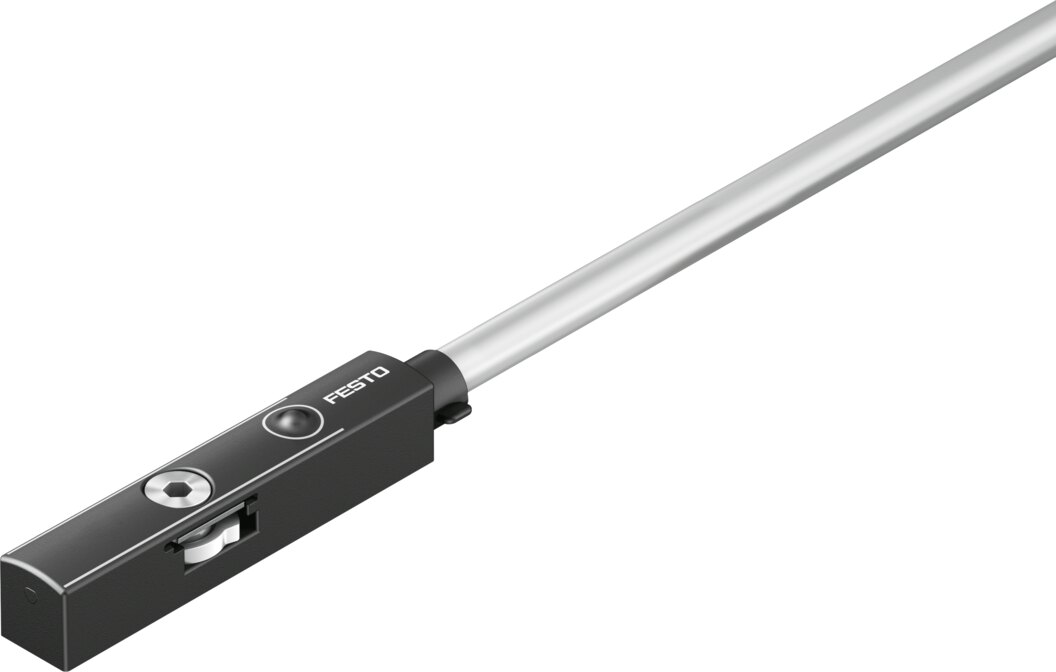

Hall effect proximity sensor for T-slot PNP/NPN switchable N/O or N/C switchable 5 m cable with open end SDBT-MSX-1L-NU-E-5-N-LE - Festo 8059125

Festo ✓ Original product Brand new

Detects the piston magnet without contact using the Hall effect and signals the cylinder position in drives with T-slot. PNP/NPN switchable output, N/O or N/C switchable, 10 to 30 V operating voltage, IP65, IP68, IP69K protection.

Net
€35.19
excl. VAT
Item FES-8059125
Manufacturer no. SDBT-MSX-1L-NU-E-5-N-LE
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo hall effect proximity sensor SDBT-MSX-1L-NU-E-5-N-LE senses end positions and intermediate positions on pneumatic cylinders and grippers and fits into the T-slot.

Benefits

  • 0.1 mm repetition accuracy of the switching point
  • Up to 200 Hz switching frequency
  • Cable suitable for energy chains, suitable for robots, TPE-U(PUR) sheath
  • 100 mA output current
  • In-line cable outlet, 5 m cable with open end

Applications

A common application is end position sensing on cylinders with magnetic pistons in assembly and handling systems. Mounting screwed tight, insertable into the slot from above.

Technical data

FeatureValue
TypeSDBT-MSX-1L-NU-E-5-N-LE
Festo part number8059125
Designfor T-slot
Based on standardEN 60947-5-2
ApprovalRCM mark, c UL us - Listed (OL)
CE mark (see declaration of conformity)to EU EMC Directive, to EU RoHS Directive
UKCA marking (see declaration of conformity)to UK RoHS regulations
Certificate issuing authorityUL E232949
Note on materialsRoHS-compliant, halogen-free
Measured variableposition
Measuring principlemagnetic Hall
Ambient temperature-40 to 85 °C
Max travel speed3 m/s
Repetition accuracy0.1 mm

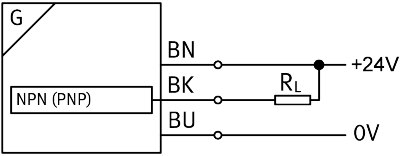

Switching outputPNP/NPN switchable
Switching element functionN/O or N/C, switchable
Hysteresis0.2 mm
Switch-on time2 ms
Switch-off time2 ms
Max switching frequency200 Hz
Max output current100 mA
Max output current in mounting kits100 mA
Max switching capacity DC2.8 W
Max switching capacity DC in mounting kits2.8 W
Voltage drop1.5 V
Min load current0.15 mA
Off-state current0.2 mA
Short circuit protectionyes
Overload protectionyes
Rated operating voltage DC24 V
Operating voltage range DC10 to 30 V
Reverse polarity protectionfor all electrical connections
Electrical connection, connection typecable
Electrical connection, connector systemopen end
Electrical connection, number of pins/wires3
Connection outlet directionin-line
Cable test conditionsbending strength to Festo standard, test conditions on request, torsional strength above 300 000 cycles, ±270°/0.1 m, energy chain above 5 million cycles, bending radius 28 mm
Cable length5 m
Cable characteristicsuitable for energy chains, suitable for robots
Cable sheath colourgrey
Cable sheath materialTPE-U(PUR)
Wire endswire ferrule
Type of mountingscrewed tight, insertable into the slot from above
Max tightening torque0.6 Nm
Mounting positionany
Housing colourblack
Housing materialhigh-alloy stainless steel
Switching status indicationyellow LED
Status indicationgreen LED
Setting optionsauto teach-in, capacitive button
Ambient temperature with moving cable-20 to 85 °C
Degree of protectionIP65, IP68, IP69K
LABS (PWIS) conformityVDMA24364-B2-L
Suitability for the production of Li-ion batteriessuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability to ISO 14644-14statically installed element, no meaningful evaluation possible to ISO 14644-1
Weight0.075 kg
ManufacturerFesto
Hersteller-NrSDBT-MSX-1L-NU-E-5-N-LE
EAN4052568300494
Zolltarifnummer85365019
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ColourBlack
NormDIN EN 60947-5-2
Operating voltage24 V DC
SeriesSDBT
Protection ratingIP65
Temperature (max.)85
