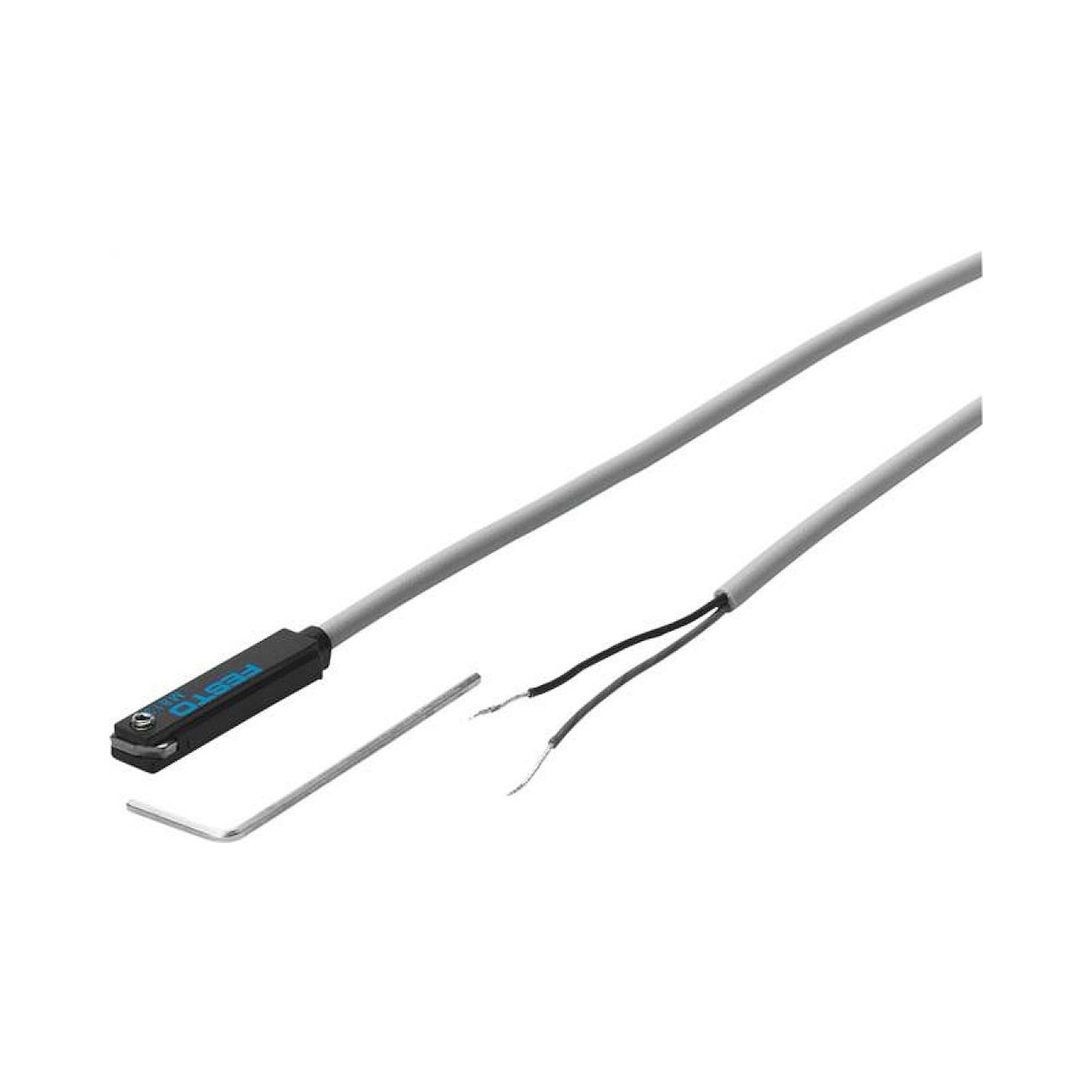

Reed proximity sensor contacting N/O 5 m cable with open end in-line outlet SME-8M-ZS-24V-K-5-OE - Festo 578249

Festo ✓ Original product Brand new

The reed contact switches as soon as the piston magnet passes it, signalling the cylinder position. Contacting switch, N/O, 24 V operating voltage.

Net
€32.63
excl. VAT
Item FES-578249
Manufacturer no. SME-8M-ZS-24V-K-5-OE
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo reed proximity sensor SME-8M-ZS-24V-K-5-OE senses end positions and intermediate positions on pneumatic cylinders and grippers. The data below is taken from the Festo type code.

Benefits

  • Cable standard and drag chain
  • In-line cable outlet, 5 m cable with open end
  • Contacting switching output, N/O

Applications

A common application is end position sensing on cylinders with magnetic pistons in assembly and handling systems.

Technical data

FeatureValue
TypeSME-8M-ZS-24V-K-5-OE
Festo part number578249
Measuring principlemagnetic reed
Switching outputcontacting, bipolar
Switching element functionN/O contact
Rated operating voltage DC24 V
Electrical connection, connection typecable
Electrical connection, connector systemopen end
Cable length5 m
Connection outlet directionin-line
Cable characteristicstandard and drag chain
Weight0.06 kg
ManufacturerFesto
Hersteller-NrSME-8M-ZS-24V-K-5-OE
Zolltarifnummer85365019
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Operating voltage24 V DC
SeriesSME
