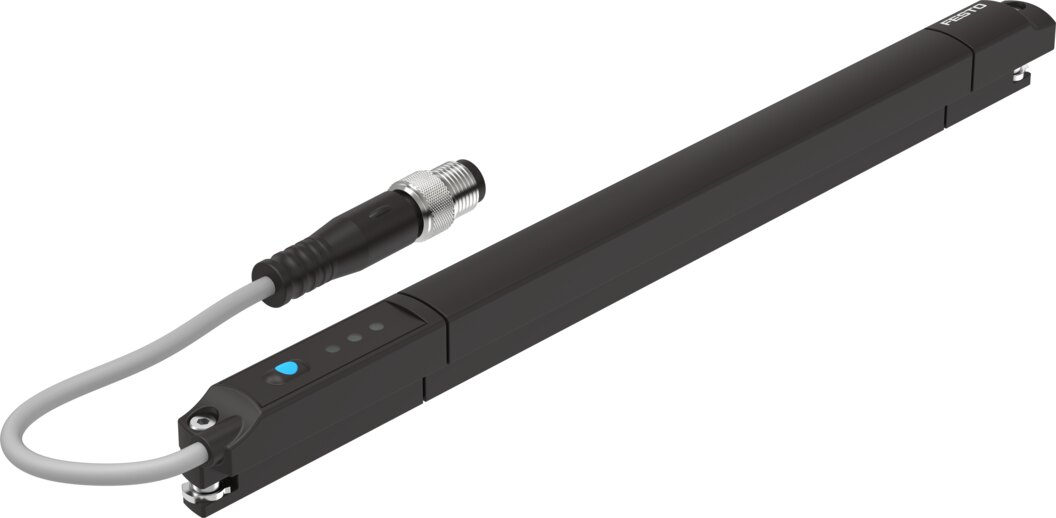

Position transmitter measuring range 0 to 160 mm analogue output 4-20 mA for T-slot SDAP-MHS-M160-1L-A-E-0.3-M8 - Festo 8050122
Measures the position steplessly across the whole range. Output as analogue signal 4 - 20 mA. The Festo position transmitter SDAP-MHS-M160-1L-A-E-0.3-M8 comes with measuring range 0 to 160 mm and analogue output 4 - 20 mA, typical linearity error ±0.25 mm.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Measuring range 0 to 160 mm and analogue output 4 - 20 mA, typical linearity error ±0.25 mm: these are the key data of the Festo position transmitter SDAP-MHS-M160-1L-A-E-0.3-M8. Measures the position steplessly across the whole range. Output as analogue signal 4 - 20 mA.
Benefits
- Measuring range 0 to 160 mm
- Analogue output 4 - 20 mA, typical linearity error ±0.25 mm
- Resolution 0.05 mm
- Travel speed up to 3 m/s
- Electrical connection M8x1, A-coded to EN 61076-2-104
- Degree of protection IP65, IP68, dust-tight and protected against water jets
Applications
Suitable for actuators with a T-slot where intermediate positions are monitored or strokes are measured. To reorder, the type SDAP-MHS-M160-1L-A-E-0.3-M8 or Festo number 8050122 is sufficient.
Technical data
| Feature | Value |
|---|---|
| Type | SDAP-MHS-M160-1L-A-E-0.3-M8 |
| Festo part number | 8050122 |
| Design | for T-slot |
| Certification | RCM mark, c UL us - Listed (OL) |
| CE marking (see declaration of conformity) | to EU EMC Directive, to EU RoHS Directive |
| UKCA marking (see declaration of conformity) | to UK RoHS regulations |
| Note on materials | RoHS compliant, halogen-free |
| Measured variable | position |
| Measuring principle | magnetic Hall |
| Sensing range | 0 to 160 mm |
| Ambient temperature | -25 to 70 °C |
| Typical sampling interval | 1 ms |
| Max. travel speed | 3 m/s |
| Displacement resolution | 0.05 mm |
| Analogue output | 4 - 20 mA |
| Sensitivity | 0.1 mA/mm |
| Typical linearity error | ±0.25 mm |
| Max. load resistance current output | 500 Ohm |
| Short-circuit protection | yes |
| Overload protection | available |
| Operating voltage range DC | 15 to 30 V |
| Residual ripple | 10 % |
| Reverse polarity protection | for all electrical connections |
| Electrical connection 1, connection type | cable with plug |
| Electrical connection 1, connection technology | M8x1, A-coded to EN 61076-2-104 |
| Electrical connection 1, number of pins/wires | 4 |
| Electrical connection 1, type of mounting | screw-type lock |
| Connection outlet direction | in-line |
| Material plug contacts | copper alloy, gold-plated |
| Cable test conditions | Bending strength: to Festo standard, Torsional strength: > 300.000 cycles, ±270°/0.1 m, Energy chain: > 5 million cycles, bending radius 28 mm |
| Cable length | 0.3 m |
| Cable characteristics | suitable for energy chains and robots |
| Cable sheath colour | grey |
| Material cable sheath | TPE-U(PUR) |
| Type of mounting | screwed tight, insertable into the slot from above |
| Mounting position | any |
| Product weight | 35 g |
| Material housing | polyester, high-alloy stainless steel |
| Material union nut | brass, nickel-plated |
| Material foil | polyester |
| Ready status indication | LED green |
| Status indication | LED red |
| Ambient temperature with flexible cable installation | -20 to 70 °C |
| Degree of protection | IP65, IP68 |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability, measured to ISO 14644-14 | class 4 to ISO 14644-1 |
| Weight | 0.11 kg |
| Manufacturer | Festo |
| Hersteller-Nr | SDAP-MHS-M160-1L-A-E-0.3-M8 |
| EAN | 4052568288792 |
| Zolltarifnummer | 90318020 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Bauform | für T-Nut |
| Protection rating | IP65 |
| Temperature (max.) | 70 |
