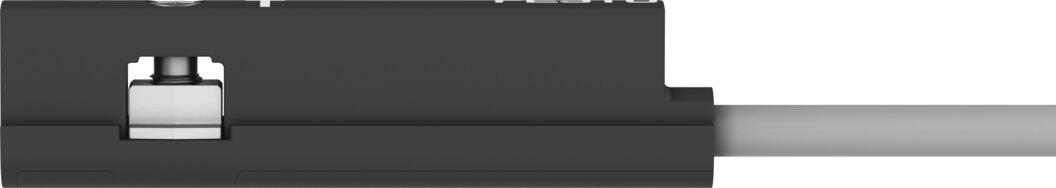

Position transmitter SDAC-MHS-M20-1L-V-E-0.3-M8 - Festo 8128402
Net
excl. VAT
€115.23
Item
FES-8128402
Manufacturer no.
SDAC-MHS-M20-1L-V-E-0.3-M8
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Design | For C-slot |
|---|---|
| Approval | RCM |
| CE mark (see declaration of conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| Note on materials | RoHS compliant, Free of halogen |
| Instructions on use | Support / actuator-sensor overview "The right sensor for the actuator" |
| Measured variable | Position |
| Measuring principle | Magnetic Hall |
| Sensing range | 25000 µm |
| Ambient temperature | -40 ... 80 °C |
| Typical sampling interval | 2 ms |
| Max. travel speed | 4 m/s |
| Displacement resolution | 0.047 mm |
| Repetition accuracy | 0.2 mm |
| Analogue output | 0 - 10 V |
| Sensitivity | 0.45 V/mm |
| Typical linearity error | ±2 mm |
| Min. load resistance voltage output | 10 kOhm |
| Short circuit current rating | Yes |
| Overload protection | Available |
| Output signal | Analogue |
| Operational voltage range DC | 15 ... 30 V |
| Residual ripple | 10% |
| No-load supply current | 12 mA |
| Reverse polarity protection | Yes |

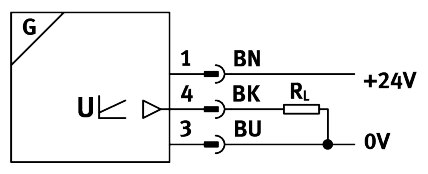

| Electrical connection 1, connection type | Cable with plug |
| Electrical connection 1, connector system | M8x1, A-coded, to EN 61076-2-104 |
| Electrical connection 1, number of connections/cores | 3 |
| Electrical connection 1, type of mounting | Screw-type lock with hexagon A/F 9 mm and longitudinal knurl |
| Electrical connection 1, connection pattern | 00991155 |
| Connection outlet orientation | In-line |
| Material electrical contact | Brass, nickel-plated and gold-plated |
| Test conditions cable | Bending strength: to Festo standard, Torsional strength: > 300,000 cycles, ±270°/0.1 m, Energy chain: > 5 million cycles, bending radius 28 mm |
| Cable length | 0.3 m |
| Cable characteristic | Suitable for energy chains/robot applications |
| Cable sheath colour | Grey |
| Material cable sheath | TPE-U(PUR) |
| Type of mounting | Screw-clamped, Inserted into the slot lengthwise |
| Mounting position | Any |
| Product weight | 9 g |
| Material housing | High-alloy stainless steel |
| Material union nut | Nickel-plated brass |
| Status indication | Red, green LED |
| Ambient temperature with moving cable | -20 ... 70 °C |
| Degree of protection | IP65, IP68 |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 4 according to ISO 14644-1 |
| Weight | 0.014 kg |
| Manufacturer | Festo |
| Hersteller-Nr | SDAC-MHS-M20-1L-V-E-0.3-M8 |
| EAN | 4052568627454 |
| Zolltarifnummer | 90318020 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
