Position transmitter measuring range 52 mm analogue output 0-10 V for T-slot SMAT-8M-U-E-2,5-OE - Festo 8200152
Delivers the position continuously, not only at the end positions. Output as analogue signal 0 - 10 V. The Festo position transmitter SMAT-8M-U-E-2,5-OE comes with measuring range 52 mm and analogue output 0 - 10 V, typical linearity error ±1 mm.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Delivers the position continuously, not only at the end positions. Output as analogue signal 0 - 10 V. The Festo position transmitter SMAT-8M-U-E-2,5-OE offers measuring range 52 mm as well as analogue output 0 - 10 V, typical linearity error ±1 mm.
Benefits
- Measuring range 52 mm
- Analogue output 0 - 10 V, typical linearity error ±1 mm
- Resolution 0.02 mm, repetition accuracy 0.2 mm
- Travel speed up to 3 m/s
- Electrical connection open end
- Degree of protection IP65, IP68, dust-tight and protected against water jets
Applications
Suitable for actuators with a T-slot where intermediate positions are monitored or strokes are measured. For replacements, compare the order code SMAT-8M-U-E-2,5-OE with the installed part.
Technical data
| Feature | Value |
|---|---|
| Type | SMAT-8M-U-E-2,5-OE |
| Festo part number | 8200152 |
| Design | for T-slot |
| Certification | RCM mark, c UL us - Listed (OL) |
| CE marking (see declaration of conformity) | to EU EMC Directive, to EU RoHS Directive |
| UKCA marking (see declaration of conformity) | to UK RoHS regulations |
| Certificate issuing authority | UL E232949 |
| Note on materials | RoHS compliant, halogen-free |
| Measured variable | position |
| Measuring principle | magnetic Hall |
| Sensing range | 52 mm |
| Ambient temperature | -40 to 80 °C |
| Typical sampling interval | 2 ms |
| Max. travel speed | 3 m/s |
| Displacement resolution | 0.02 mm |
| Repetition accuracy | 0.2 mm |
| Analogue output | 0 - 10 V |
| Typical linearity error | ±1 mm |
| Short-circuit protection | yes |
| Overload protection | available |
| Output signal | analogue |
| Operating voltage range DC | 15 to 30 V |
| Residual ripple | 10 % |
| No-load supply current | 12 mA |
| Reverse polarity protection | for all electrical connections |

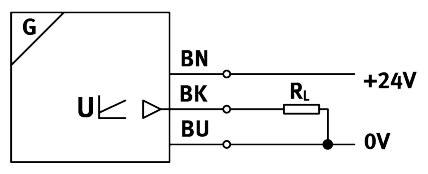

| Electrical connection 1, connection type | cable |
| Electrical connection 1, connection technology | open end |
| Electrical connection 1, number of pins/wires | 3 |
| Connection outlet direction | in-line |
| Cable test conditions | Bending strength: to Festo standard, Torsional strength: > 300.000 cycles, ±270°/0.1 m, Energy chain: > 5 million cycles, bending radius 28 mm |
| Cable length | 2.5 m |
| Cable characteristics | suitable for energy chains and robots |
| Cable sheath colour | grey |
| Material cable sheath | TPE-U(PUR) |
| Type of mounting | screwed tight, insertable into the slot from above |
| Mounting position | any |
| Product weight | 29 g |
| Material housing | high-alloy stainless steel |
| Status indication | LED red, green |
| Ambient temperature with flexible cable installation | -20 to 70 °C |
| Degree of protection | IP65, IP68 |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability, measured to ISO 14644-14 | statically installed element, no meaningful assessment possible to ISO 14644-1 |
| Weight | 0.043 kg |
| Manufacturer | Festo |
| Hersteller-Nr | SMAT-8M-U-E-2,5-OE |
| EAN | 4052568647308 |
| Zolltarifnummer | 90318020 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Bauform | für T-Nut |
| Protection rating | IP65 |
| Temperaturbereich | -40-80 °C |
| Temperature (max.) | 80 |
