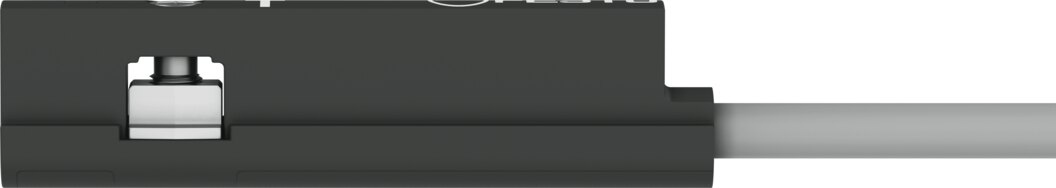

Position transmitter measuring range 35 mm IO-Link for round slot SDAC-MHS-M30-1L-PNLK-PN-E-2.5-LE - Festo 8128405
Detects the position continuously. Output via IO-Link. Festo position transmitter SDAC-MHS-M30-1L-PNLK-PN-E-2.5-LE comes with measuring range 35 mm and IO-Link for parameterisation and diagnostics.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Festo position transmitter SDAC-MHS-M30-1L-PNLK-PN-E-2.5-LE: measuring range 35 mm, plus IO-Link for parameterisation and diagnostics. Detects the position continuously. Output via IO-Link.
Benefits
- Measuring range 35 mm
- IO-Link for parameterisation and diagnostics
- Resolution 0.012 mm, repetition accuracy 0.2 mm
- Travel speed up to 4 m/s
- Electrical connection open end
- Degree of protection IP65, IP68 for harsh industrial environments
Applications
Suitable for actuators with a round slot where intermediate positions are monitored or strokes are measured. The order code SDAC-MHS-M30-1L-PNLK-PN-E-2.5-LE defines the version unambiguously.
Technical data
| Feature | Value |
|---|---|
| Type | SDAC-MHS-M30-1L-PNLK-PN-E-2.5-LE |
| Festo part number | 8128405 |
| Design | for round slot |
| Certification | RCM mark |
| CE marking (see declaration of conformity) | to EU EMC Directive, to EU RoHS Directive |
| UKCA marking (see declaration of conformity) | to UK RoHS regulations |
| Note on materials | RoHS compliant, halogen-free |
| Application note | Support / drive-sensor overview "The right sensor for the drive" |
| Measured variable | position |
| Measuring principle | magnetic Hall |
| Sensing range | 35 mm |
| Ambient temperature | -40 to 80 °C |
| Typical sampling interval | 2 ms |
| Max. travel speed | 4 m/s |
| Displacement resolution | 0.012 mm |
| Repetition accuracy | 0.2 mm |
| Switching output | 2x PNP or 2x NPN, adjustable |
| Switching element function | N/C or N/O, switchable |
| Switch-on time | 3 ms |
| Switch-off time | 3 ms |
| Max. switching frequency | 166 Hz |
| Max. switching output voltage DC | 30 V |
| Max. output current | 50 mA |
| Max. switching capacity DC | 1.5 W |
| Voltage drop | 0.4 V |
| Typical linearity error | ±2 mm |
| Short-circuit protection | yes |
| Overload protection | available |
| Protocol | IO-Link |
| IO-Link, revision ID | V1.1 |
| IO-Link, device profile | Function locator, Identification and diagnostics, Measuring and switching sensor, Smart Sensor - SSP 4.1.1 |
| IO-Link, transmission rate | COM2 |
| IO-Link, SIO mode support | yes |
| IO-Link, port type | Class A |
| IO-Link, process data length input | 32 bit |
| IO-Link, process data content IN | Position value 16-bit MDC, Monitoring 4-bit SSC |
| IO-Link, minimum cycle time | 3 ms |
| Operating voltage range DC | 10 to 30 V |
| Residual ripple | 10% |
| No-load supply current | 19 mA |
| Reverse polarity protection | yes |

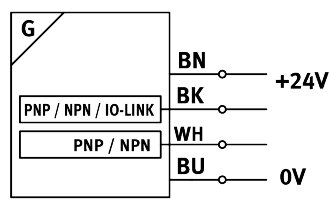

| Electrical connection 1, connection type | cable |
| Electrical connection 1, connection technology | open end |
| Electrical connection 1, number of pins/wires | 4 |
| Connection outlet direction | in-line |
| Cable test conditions | Bending strength: to Festo standard, Torsional strength: > 300.000 cycles, ±270°/0.1 m, Energy chain: > 5 million cycles, bending radius 28 mm |
| Cable length | 2.5 m |
| Cable characteristics | suitable for energy chains and robots |
| Cable sheath colour | grey |
| Material cable sheath | TPE-U(PUR) |
| Type of mounting | screwed tight, insertable into the slot lengthwise |
| Mounting position | any |
| Product weight | 21 g |
| Material housing | high-alloy stainless steel |
| Switching status indication | LED yellow |
| Status indication | LED red |
| Setting options | IO-Link, capacitive button |
| Ambient temperature with flexible cable installation | -20 to 70 °C |
| Degree of protection | IP65, IP68 |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability, measured to ISO 14644-14 | class 4 to ISO 14644-1 |
| Weight | 0.031 kg |
| Manufacturer | Festo |
| Hersteller-Nr | SDAC-MHS-M30-1L-PNLK-PN-E-2.5-LE |
| EAN | 4052568627485 |
| Zolltarifnummer | 90318020 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Bauform | für Rundnut |
| Protection rating | IP65 |
| Temperaturbereich | -40-80 °C |
| Temperature (max.) | 80 |
