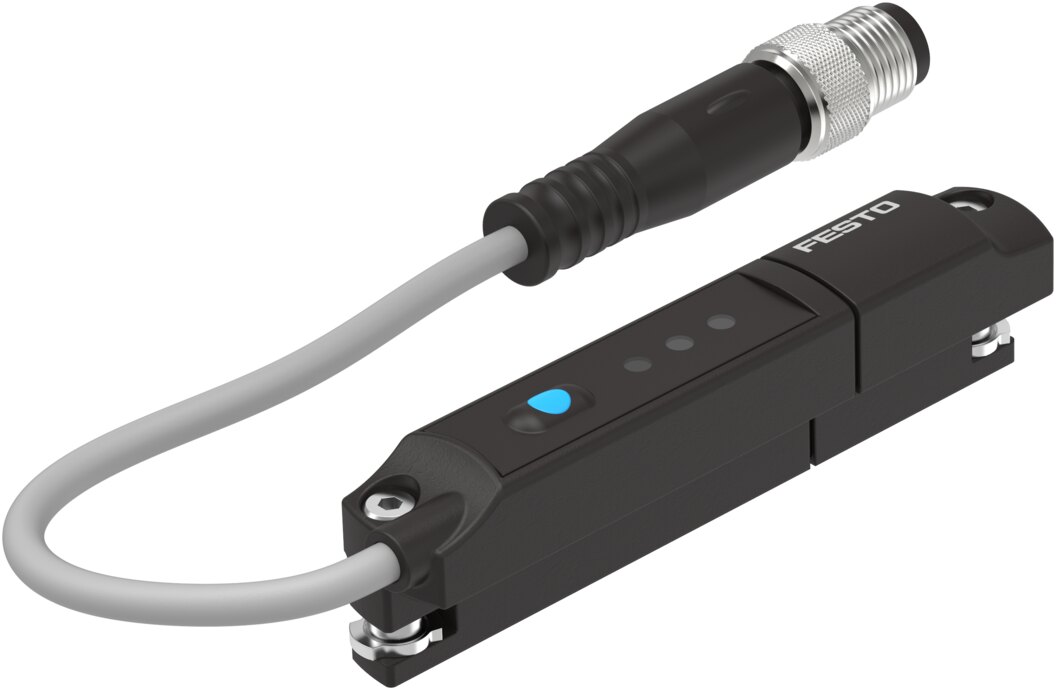

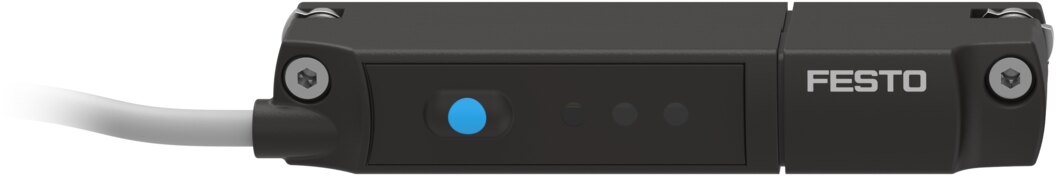

Position transmitter measuring range 0 to 50 mm analogue output 4-20 mA for T-slot SDAP-MHS-M50-1L-A-E-0.3-M8 - Festo 8050120

Festo ✓ Original product Brand new

Detects the position continuously. Output as analogue signal 4 - 20 mA. Festo position transmitter SDAP-MHS-M50-1L-A-E-0.3-M8 comes with measuring range 0 to 50 mm and analogue output 4 - 20 mA, typical linearity error ±0.25 mm.

Net
€178.17
excl. VAT
Item FES-8050120
Manufacturer no. SDAP-MHS-M50-1L-A-E-0.3-M8
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Festo position transmitter SDAP-MHS-M50-1L-A-E-0.3-M8: measuring range 0 to 50 mm, plus analogue output 4 - 20 mA, typical linearity error ±0.25 mm. Detects the position continuously. Output as analogue signal 4 - 20 mA.

Benefits

  • Measuring range 0 to 50 mm
  • Analogue output 4 - 20 mA, typical linearity error ±0.25 mm
  • Resolution 0.05 mm
  • Travel speed up to 3 m/s
  • Electrical connection M8x1, A-coded to EN 61076-2-104
  • Degree of protection IP65, IP68 for harsh industrial environments

Applications

Suitable for actuators with a T-slot where intermediate positions are monitored or strokes are measured. The order code SDAP-MHS-M50-1L-A-E-0.3-M8 defines the version unambiguously.

Technical data

FeatureValue
TypeSDAP-MHS-M50-1L-A-E-0.3-M8
Festo part number8050120
Designfor T-slot
CertificationRCM mark, c UL us - Listed (OL)
CE marking (see declaration of conformity)to EU EMC Directive, to EU RoHS Directive
UKCA marking (see declaration of conformity)to UK RoHS regulations
Note on materialsRoHS compliant, halogen-free
Measured variableposition
Measuring principlemagnetic Hall
Sensing range0 to 50 mm
Ambient temperature-25 to 70 °C
Typical sampling interval1 ms
Max. travel speed3 m/s
Displacement resolution0.05 mm
Analogue output4 - 20 mA
Sensitivity0.32 mA/mm
Typical linearity error±0.25 mm
Max. load resistance current output500 Ohm
Short-circuit protectionyes
Overload protectionavailable
Operating voltage range DC15 to 30 V
Residual ripple10 %
Reverse polarity protectionfor all electrical connections

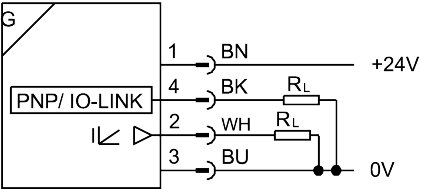

Electrical connection 1, connection typecable with plug
Electrical connection 1, connection technologyM8x1, A-coded to EN 61076-2-104
Electrical connection 1, number of pins/wires4
Electrical connection 1, type of mountingscrew-type lock
Connection outlet directionin-line
Material plug contactscopper alloy, gold-plated
Cable test conditionsBending strength: to Festo standard, Torsional strength: > 300.000 cycles, ±270°/0.1 m, Energy chain: > 5 million cycles, bending radius 28 mm
Cable length0.3 m
Cable characteristicssuitable for energy chains and robots
Cable sheath colourgrey
Material cable sheathTPE-U(PUR)
Type of mountingscrewed tight, insertable into the slot from above
Mounting positionany
Product weight19 g
Material housingpolyester, high-alloy stainless steel
Material union nutbrass, nickel-plated
Material foilpolyester
Ready status indicationLED green
Status indicationLED red
Ambient temperature with flexible cable installation-20 to 70 °C
Degree of protectionIP65, IP68
LABS (PWIS) conformityVDMA24364-B2-L
Suitability for the production of Li-ion batteriessuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured to ISO 14644-14class 4 to ISO 14644-1
Weight0.07 kg
ManufacturerFesto
Hersteller-NrSDAP-MHS-M50-1L-A-E-0.3-M8
EAN4052568288778
Zolltarifnummer90318020
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Bauformfür T-Nut
Protection ratingIP65
Temperature (max.)70
