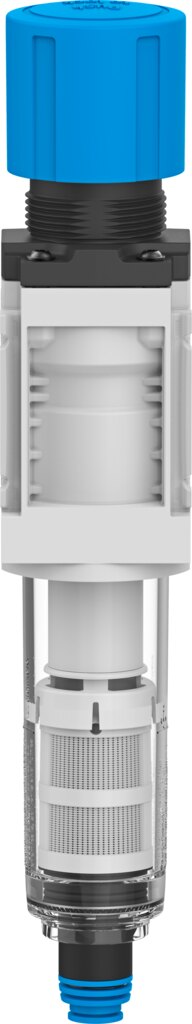

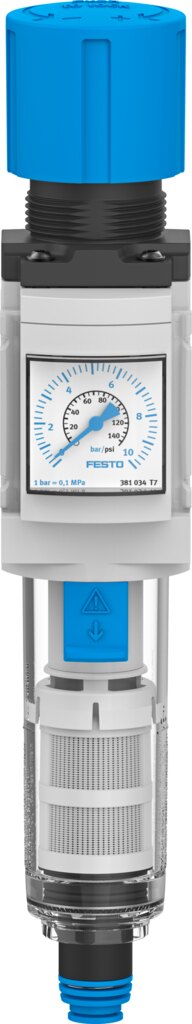

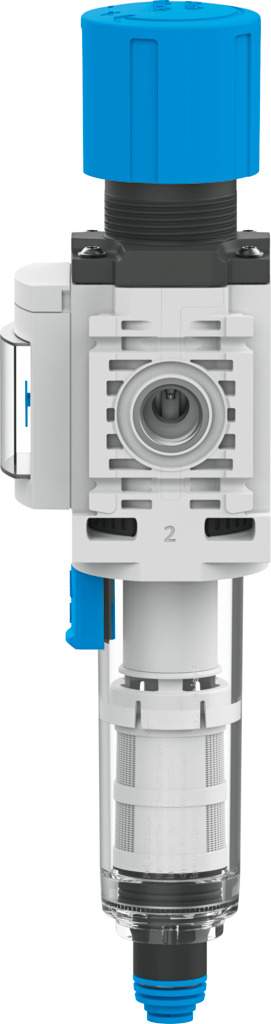

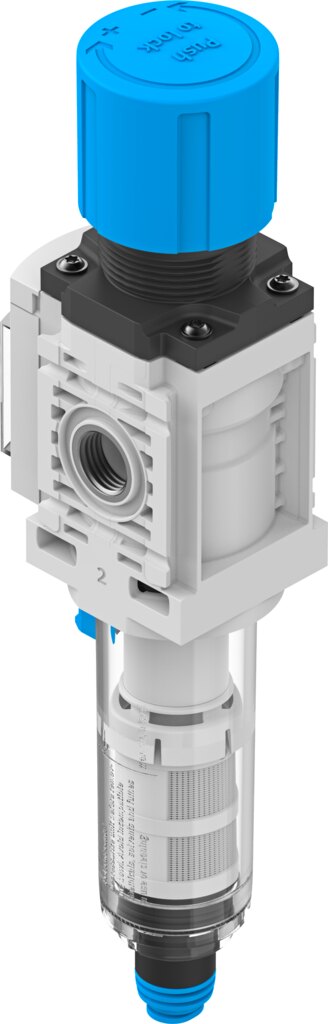

Filter regulator G1/4, 40 µm, 0.3 to 7 bar MS4-LFR-1/4-D6-E-P-VC-AG-BAR-B - Festo 8098264
The filter regulator MS4-LFR-1/4-D6-E-P-VC-AG-BAR-B cleans the compressed air and keeps the output pressure constant, regulation range 0.3 to 7 bar. Key data: 40 µm grade of filtration, 1700 l/min standard nominal flow rate and G1/4 ports. Condensate drain: manual, non-detenting.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The MS4-LFR-1/4-D6-E-P-VC-AG-BAR-B combines a 40 µm filter with a pressure regulator covering 0.3 to 7 bar. Standard nominal flow rate is 1700 l/min, operating pressure 2 to 10 bar.
At a glance
- 1700 l/min standard nominal flow rate to DIN 1343
- Grade of filtration 40 µm, condensate separation 75 %
- Pressure regulation range 0.3 to 7 bar, hysteresis max. 0.5 bar
- Operating pressure 2 to 10 bar
- Condensate volume up to 16.5 ml, drain manual, non-detenting
- Air purity at output: Compressed air to ISO 8573-1:2010 [7:4:4]
Applications
A typical location for the MS4-LFR-1/4-D6-E-P-VC-AG-BAR-B is the inlet of a machine or valve terminal, where particles and condensate are retained and the pressure is set. Permissible media temperature 5 to 50 °C. Mounting of the MS4-LFR-1/4-D6-E-P-VC-AG-BAR-B: with accessories.
Technical data
| Type | MS4-LFR-1/4-D6-E-P-VC-AG-BAR-B |
|---|---|
| Festo part number | 8098264 |
| Size | 4 |
| Series | MS |
| Actuator lock | Rotary knob with detent |
| Mounting position | Vertical ±5° |
| Grade of filtration | 40 µm |
| Condensate drain | Manual, non-detenting |

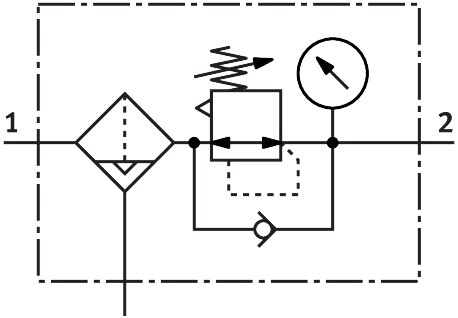

| Design | Filter regulator with pressure gauge, directly actuated piston regulator |
| Maximum condensate volume | 16.5 ml |
| Controller function | Output pressure constant, with secondary exhausting, with return flow function |
| Degree of condensate separation | 75 % |
| Displayable units | bar, psi |
| Pressure indicator | With pressure gauge |
| Operating pressure | 2 to 10 bar |
| Pressure regulation range | 0.3 to 7 bar |
| Maximum pressure hysteresis | 0.5 bar |
| Standard nominal flow rate (standardised to DIN 1343) | 1700 l/min |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4], inert gas |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 7 according to ISO 14644-1 |
| Storage temperature | -5 to 50 °C |
| Air purity class at output | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Media temperature | 5 to 50 °C |
| Ambient temperature | 5 to 50 °C |
| Pore size | 40 µm |
| Product weight | 216 g |
| Type of mounting | With accessories |
| Pneumatic connection, port 1 | G1/4 |
| Pneumatic connection, port 2 | G1/4 |
| Note on materials | RoHS compliant |
| Material seals | NBR |
| Material rotary knob | POM |
| Material spring | High-alloy steel, galvanised steel |
| Material filter | PE |
| Material housing | Reinforced PA |
| Material bowl | PC |
| Material valve stem | POM |
| Weight | 0.27 kg |
| Manufacturer | Festo |
| Hersteller-Nr | MS4-LFR-1/4-D6-E-P-VC-AG-BAR-B |
| EAN | 4052568569938 |
| Zolltarifnummer | 84811005 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/4 |
| Size BG | 4 |
| Control range max. [bar] | 7 |
| Seal material | NBR |
| Medium | Compressed air, neutral gases |
| Flow rate [l/min] | 1700 |
| Filter grade [µm] | 40 |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | G1/4 |
| Temperature (max.) | 50 |
