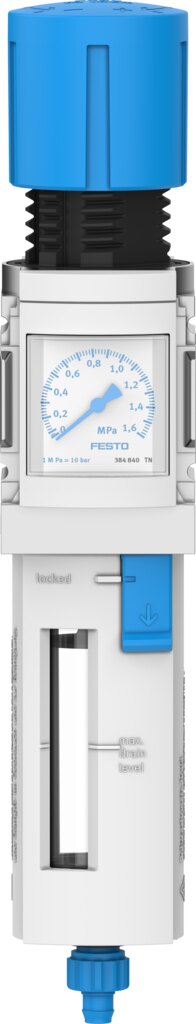

Filter regulator G1/4, 40 µm, 0.5 to 12 bar MS4-LFR-1/4-D7-E-R-M-A8-AS - Festo 589871
The filter regulator MS4-LFR-1/4-D7-E-R-M-A8-AS combines filter and pressure regulator in one housing, regulation range 0.5 to 12 bar. Key data: 40 µm grade of filtration and G1/4 ports. Condensate drain: manual, rotating.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
One unit instead of two: the MS4-LFR-1/4-D7-E-R-M-A8-AS filters to 40 µm and regulates within 0.5 to 12 bar.
Benefits
- Grade of filtration 40 µm
- Pressure regulation range 0.5 to 12 bar
Applications
The MS4-LFR-1/4-D7-E-R-M-A8-AS sits in the supply line upstream of cylinders and valves and protects them from dirt and water.
Technical data
| Type | MS4-LFR-1/4-D7-E-R-M-A8-AS |
|---|---|
| Festo part number | 589871 |
| Size | 4 |
| Series | MS |
| Pneumatic connection, port 1 | G1/4 |
| Pressure regulation range | 0.5 to 12 bar |
| Grade of filtration | 40 µm |
| Condensate drain | Manual, rotating |
| Pressure indicator | Prepared for G1/8 |
| Weight (price list) | 0.39 kg |
| Weight | 0.39 kg |
| Manufacturer | Festo |
| Hersteller-Nr | MS4-LFR-1/4-D7-E-R-M-A8-AS |
| Zolltarifnummer | 84811005 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/4 |
| Size BG | 4 |
| Control range max. [bar] | 12 |
| Filter grade [µm] | 40 |
| Pneumatic connection | G1/4 |
