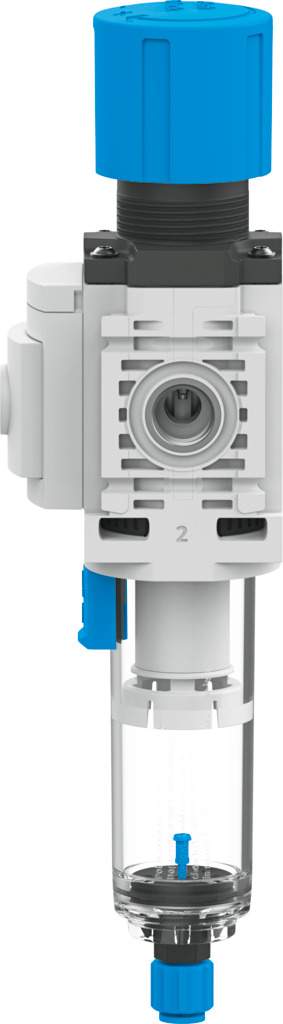

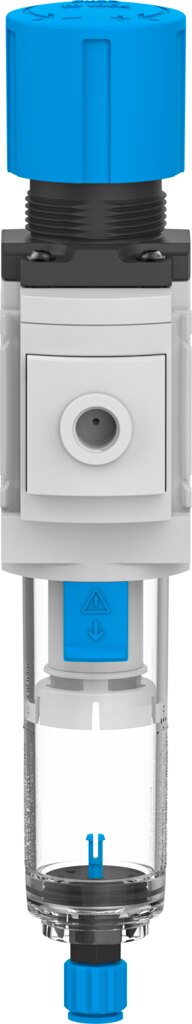

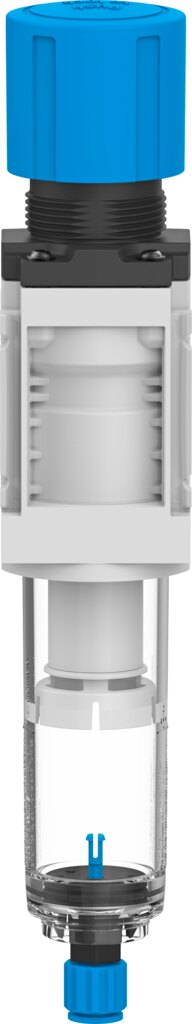

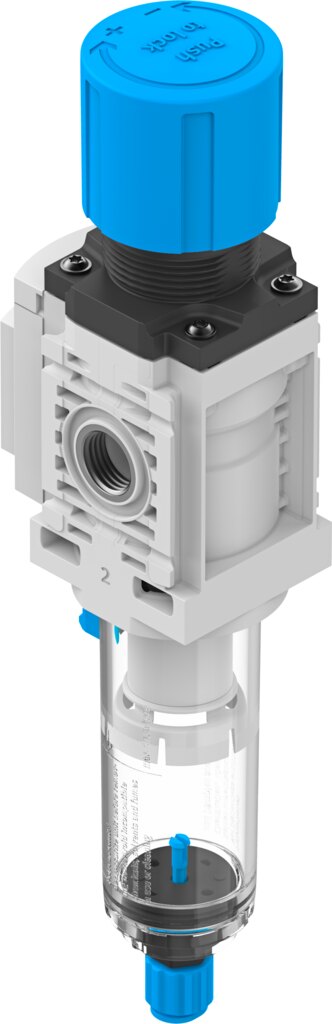

Filter regulator G1/4, 5 µm, 0.3 to 7 bar MS4-LFR-1/4-D6-C-R-M-RG-AS - Festo 578882
The filter regulator MS4-LFR-1/4-D6-C-R-M-RG-AS filters the compressed air and regulates it to a constant output pressure, regulation range 0.3 to 7 bar. Further data: 5 µm grade of filtration and G1/4 ports. Condensate drain: manual, rotating.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

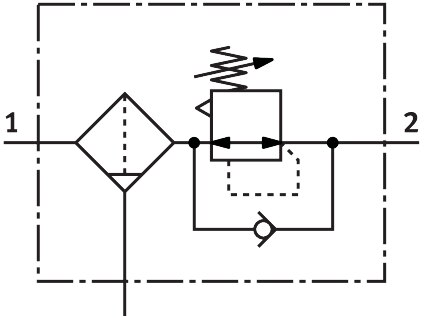

The MS4-LFR-1/4-D6-C-R-M-RG-AS combines a 5 µm filter with a pressure regulator covering 0.3 to 7 bar.
Why it pays off
- Grade of filtration 5 µm
- Pressure regulation range 0.3 to 7 bar
Applications
A typical location for the MS4-LFR-1/4-D6-C-R-M-RG-AS is the inlet of a machine or valve terminal, where particles and condensate are retained and the pressure is set.
Technical data
| Type | MS4-LFR-1/4-D6-C-R-M-RG-AS |
|---|---|
| Festo part number | 578882 |
| Size | 4 |
| Series | MS |
| Pneumatic connection, port 1 | G1/4 |
| Pressure regulation range | 0.3 to 7 bar |
| Grade of filtration | 5 µm |
| Condensate drain | Manual, rotating |
| Weight (price list) | 0.39 kg |
| Weight | 0.4 kg |
| Manufacturer | Festo |
| Hersteller-Nr | MS4-LFR-1/4-D6-C-R-M-RG-AS |
| Zolltarifnummer | 84811005 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/4 |
| Size BG | 4 |
| Control range max. [bar] | 7 |
| Filter grade [µm] | 5 |
| Pneumatic connection | G1/4 |
