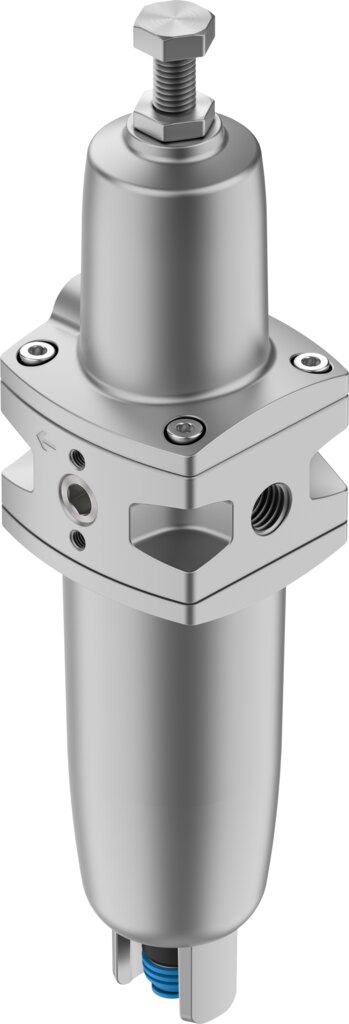

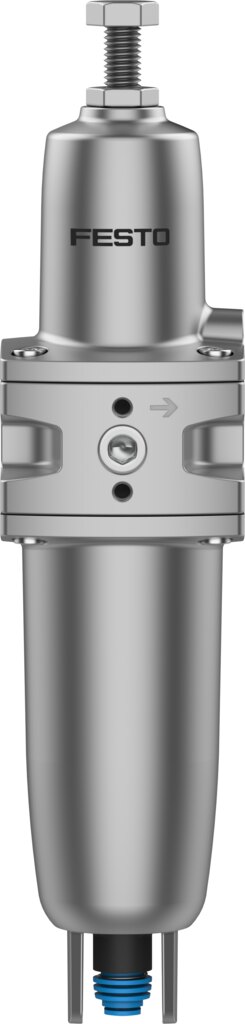

Filter regulator PCRP-64-N14-12-C-R1-VC-T31 - Festo 8195731
Net
excl. VAT
€403.82
Item
FES-8195731
Manufacturer no.
PCRP-64-N14-12-C-R1-VC-T31
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Size | 64 |
|---|---|
| Series | P |
| Actuator lock | Adjusting screw with lock |
| Mounting position | Vertical +/-5° |
| Grade of filtration | 5 µm |
| Condensate drain | Fully automatic |
| Design | Filter regulator with pressure gauge |
| Conforms to standard | NACE MR0175/ISO 15156 (housing and bowl) |
| Max. condensate volume | 30 ml |

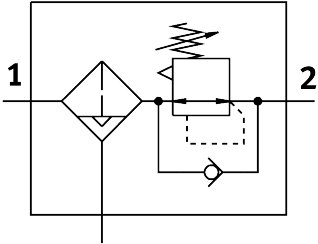

| Controller function | With primary pressure compensation, With secondary exhausting |
| Pressure gauge (ANALOG) or Pressure display (DIGITAL) | Prepared for G1/4 |
| Operating pressure | 2 ... 12 bar |
| Pressure regulation range | 0.5 ... 12 bar |
| Max. pressure hysteresis | 0.2 bar |
| Max. standard flow rate | 2400 l/min |
| Standard nominal flow rate (standardised to DIN 1343) | 1920 l/min |
| Explosion protection | The information in the certificate must be observed!, Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| Operating medium | Inert gas |
| Note on operating and pilot medium | Lubricated operation possible |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -10 ... 60 °C |
| Air purity class at output | Compressed air to ISO 8573-1:2010 [6:4:4] |
| Media temperature | 0 ... 60 °C |
| Ambient temperature | 0 ... 60 °C |
| Product weight | 2285 g |
| Type of mounting | Inline installation |
| Pressure gauge connection | G1/4 |
| Pneumatic connection, port 1 | 1/4 NPT |
| Pneumatic connection, port 2 | 1/4 NPT |
| Pneumatic connection, port 3 | 1/8 NPT |
| Material filter carrier | POM |
| Note on materials | RoHS compliant |
| Material mounting bracket | High-alloy stainless steel |
| Material seals | NBR |
| Material spring | High-alloy stainless steel |
| Material filter | Packaging unit |
| Material housing | Cast stainless steel |
| Material number housing | 1.4409/CF3M(316L) |
| Material adjusting screw | High-alloy stainless steel |
| Material bowl | High-alloy stainless steel |
| Material number of bowl | 1.4409/CF3M (316L) |
| Weight | 2.5 kg |
| Manufacturer | Festo |
| Hersteller-Nr | PCRP-64-N14-12-C-R1-VC-T31 |
| EAN | 4052568643751 |
| Zolltarifnummer | 84811005 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
