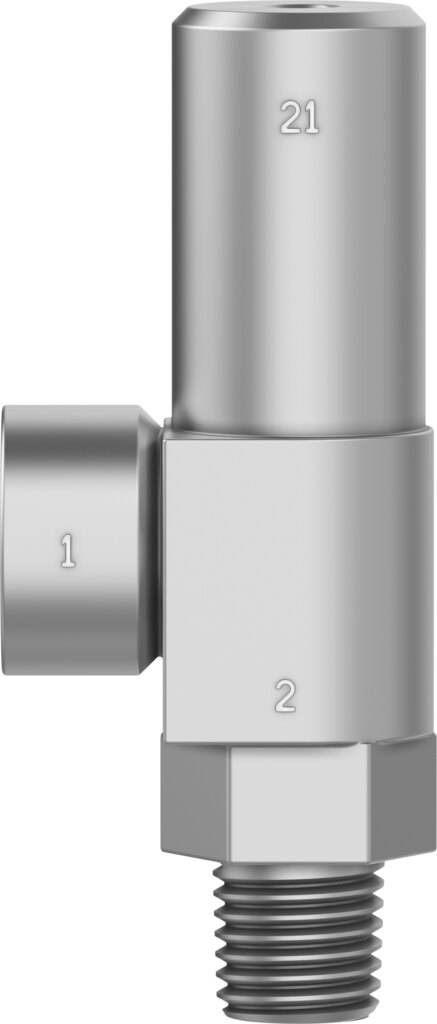

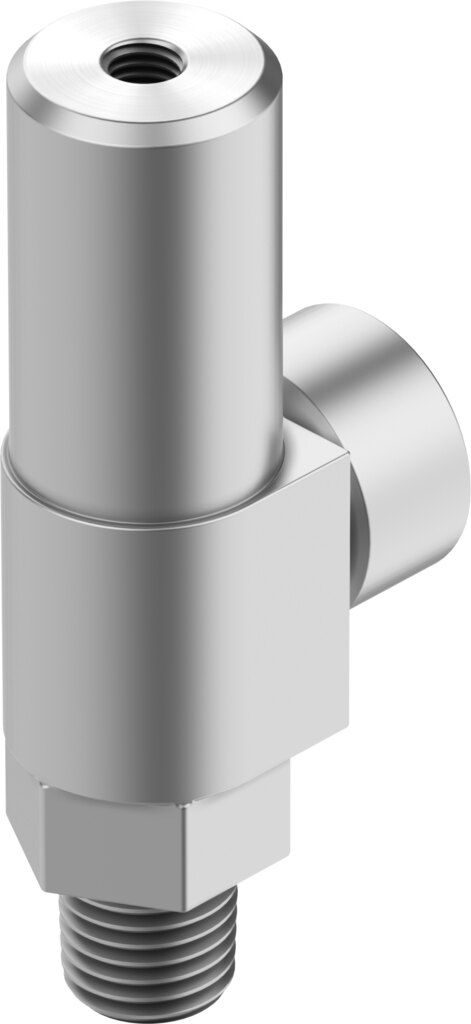

Piloted check valve 1/8 NPT, 0 to 260 l/min HGL-1/8-NPT - Festo 34877
The HGL-1/8-NPT piloted check valve keeps the line closed until a pneumatic pilot signal releases it. At a glance: port 1/8 NPT, nominal flow 0 to 260 l/min, operating pressure 0.3 to 10 bar, pilot pressure 2 to 10 bar. This allows a cylinder to be held in its position. Weight 36 g.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
0 to 260 l/min standard nominal flow rate: the HGL-1/8-NPT piloted check valve keeps the line closed until a pneumatic pilot signal releases it. This allows a cylinder to be held in its position.
Benefits
- Flow rate: standard nominal flow rate 0 to 260 l/min
- Pressure range: 0.3 to 10 bar operating pressure, pilot pressure 2 to 10 bar
- Connections: 1/8 NPT
- Paint compatibility: LABS conformity VDMA24364-B1/B2-L
- Temperature: -20 to 80 °C ambient temperature
Applications
Used between directional valve and cylinder when the actuator must be held during pressure loss or in intermediate positions. Operating medium: compressed air to ISO 8573-1:2010 [7:4:4]. Mounting: screw-in. Lubricated operation possible, then required.
Technical data
| Type | HGL-1/8-NPT |
|---|---|
| Festo part number | 34877 |
| Valve function | Piloted non-return function |
| Pneumatic connection, port 1 | 1/8 NPT |
| Pneumatic connection, port 2 | 1/8 NPT |
| Type of mounting | Screw-in |
| Standard nominal flow rate | 0 to 260 l/min |
| Operating pressure | 0.3 to 10 bar |
| Pilot pressure | 2 to 10 bar |
| Ambient temperature | -20 to 80 °C |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (then required for further operation) |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Medium temperature | -20 to 80 °C |
| Note on materials | RoHS-compliant |
| Weight (shipping) | 36 g |
| Weight | 0.036 kg |
| Manufacturer | Festo |
| Hersteller-Nr | HGL-1/8-NPT |
| EAN | 4052568305840 |
| Zolltarifnummer | 84813099 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | NPT 1/8 |
| Medium | Compressed air |
| Function | pilot-operated check valve function |
| Series | HGL |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | NPT 1/8 |
| Temperaturbereich | -20-80 °C |
| Temperature (max.) | 80 |
