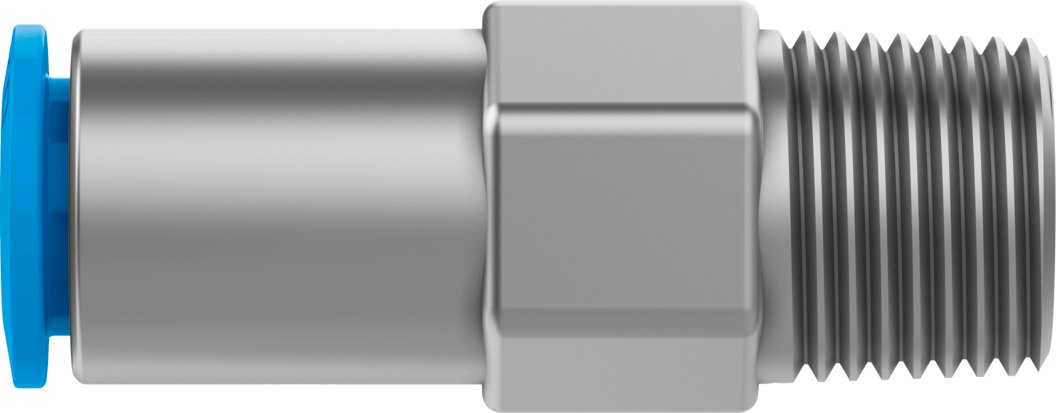

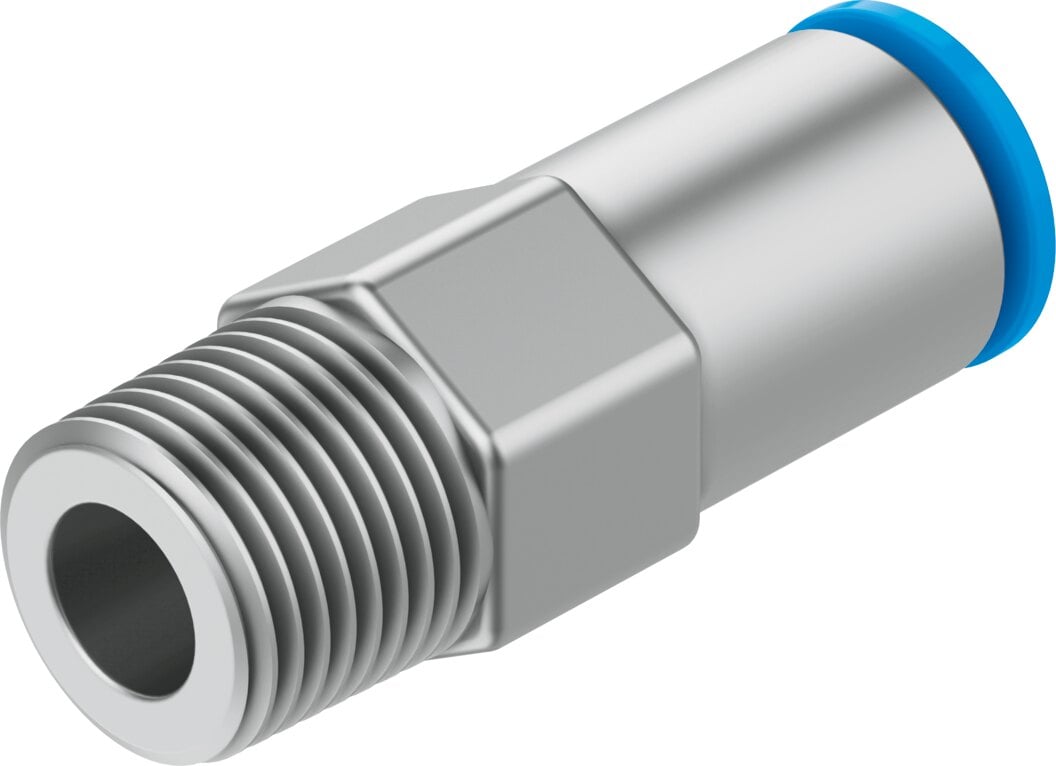

Check valve HA-1/4-QS-5/16-U - Festo 190854
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Valve function | With non-return function |
|---|---|
| Pneumatic connection, port 1 | 1/4 NPT |
| Pneumatic connection, port 2 | QS-5/16 |
| Type of mounting | Screw-in |
| Standard nominal flow rate (standardised to DIN 1343) | 766 l/min |
| Operating pressure | -1 ... 10 bar |
| Ambient temperature | 0 ... 60 °C |
| Material housing | Brass |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Min. diff. pressure, opening | 0.1 bar |
| Min. diff. pressure, closing | 0.2 bar |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Product weight | 24 g |
| Note on materials | RoHS compliant |
| Weight | 0.024 kg |
| Manufacturer | Festo |
| Hersteller-Nr | HA-1/4-QS-5/16-U |
| EAN | 4052568324308 |
| Zolltarifnummer | 84813099 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
