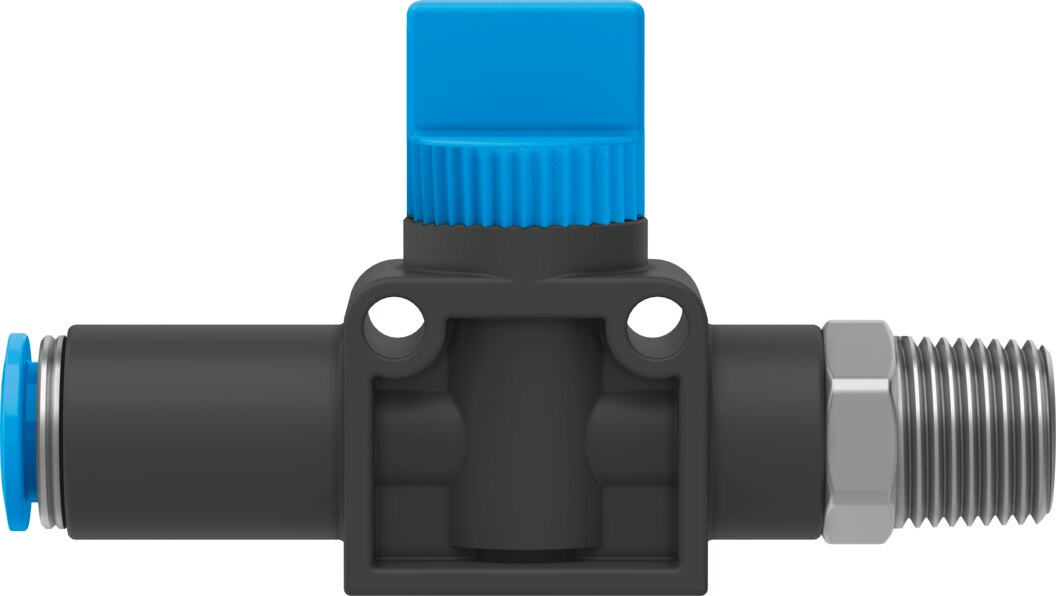

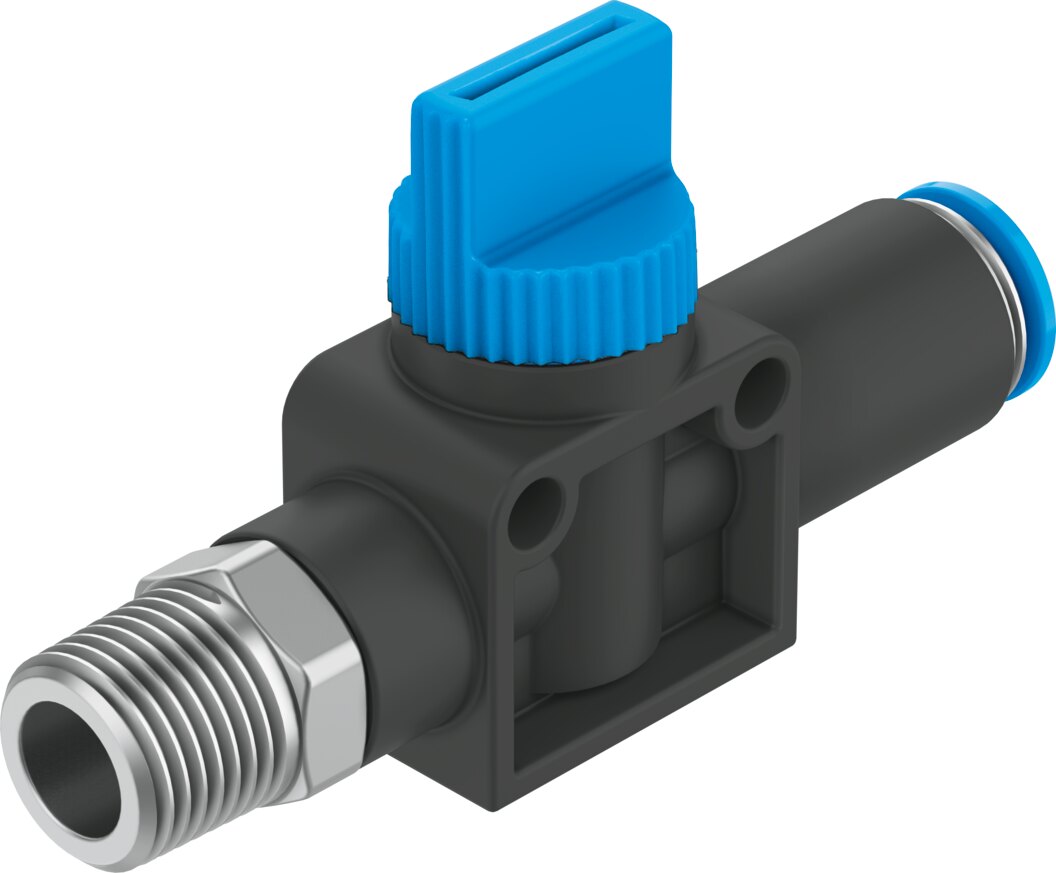

Shut-off valve HE-2-1/4-QS-1/4-U - Festo 153990
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Valve function | 2/2-way, double solenoid |
|---|---|
| Pneumatic connection, port 1 | 1/4 NPT |
| Pneumatic connection, port 2 | QS-1/4 |
| Type of actuation | Manual |
| Type of mounting | Direct mounting via through-hole, Direct mounting via thread |
| Standard nominal flow rate (standardised to DIN 1343) | 340.2 l/min |
| Nominal size | 3.2 mm |
| Operating pressure | -0.95 ... 10 bar |
| Ambient temperature | 0 ... 60 °C |
| Material housing | Reinforced PBT |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Sealing principle | Soft |
| Mounting position | Any |
| Design | Piston gate valve |
| Type of piloting | Direct |
| Flow direction | Reversible |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 4 according to ISO 14644-1 |
| Media temperature | 0 ... 60 °C |
| Product weight | 35 g |
| Material screwed plug | Nickel-plated brass |
| Note on materials | RoHS compliant |
| Material seals | NBR |
| Weight | 0.04 kg |
| Manufacturer | Festo |
| Hersteller-Nr | HE-2-1/4-QS-1/4-U |
| EAN | 4052568311452 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
