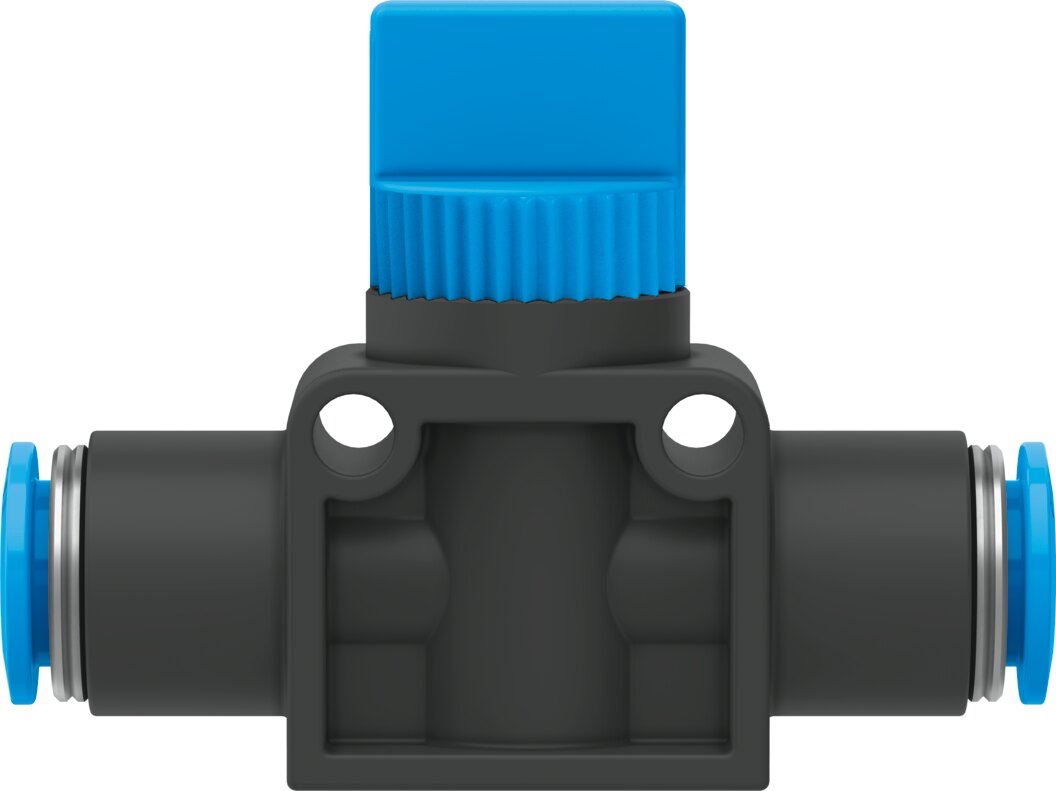

Shut-off valve HE-3-QS-1/2-U - Festo 153979
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Valve function | 3/2-way, double solenoid |
|---|---|
| Selection of additional functions | With exhaust function |
| Pneumatic connection, port 1 | QS-1/2 |
| Pneumatic connection, port 2 | QS-1/2 |
| Type of actuation | Manual |
| Type of mounting | Inline installation |
| Standard nominal flow rate (standardised to DIN 1343) | 777.6 l/min |
| Nominal size | 4.7 mm |
| Operating pressure | -0.95 ... 10 bar |
| Ambient temperature | 0 ... 60 °C |
| Material housing | Reinforced PBT |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Exhaust-air function | Cannot be throttled |
| Sealing principle | Soft |
| Mounting position | Any |
| Design | Piston gate valve |
| Type of piloting | Direct |
| Flow direction | Non-reversible |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 4 according to ISO 14644-1 |
| Media temperature | 0 ... 60 °C |
| Product weight | 46 g |
| Pneumatic connection, port 3 | Not ducted |
| Note on materials | RoHS compliant |
| Material seals | NBR |
| Weight | 0.05 kg |
| Manufacturer | Festo |
| Hersteller-Nr | HE-3-QS-1/2-U |
| EAN | 4052568311346 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
