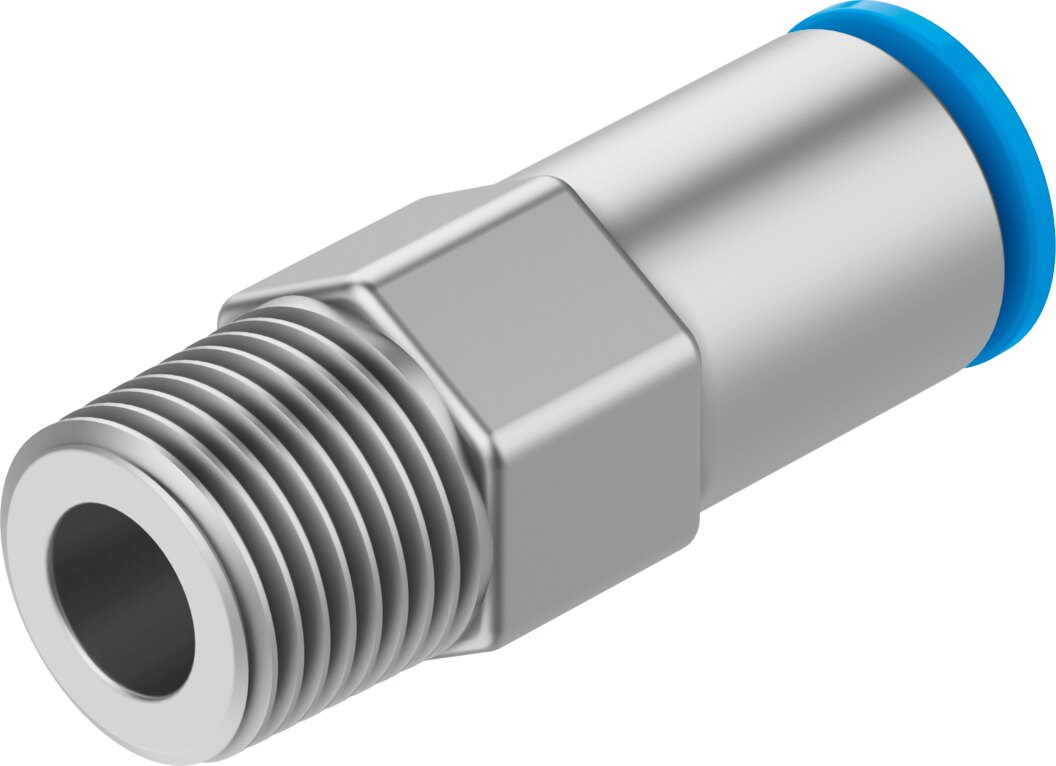

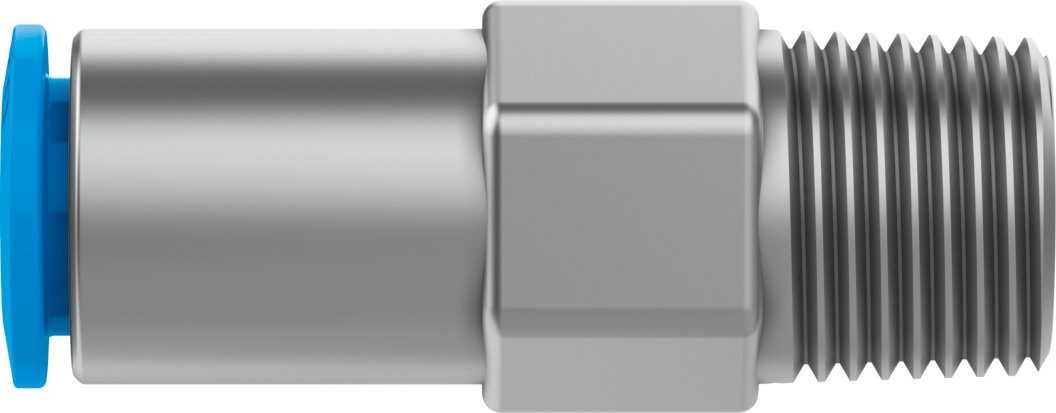

Check valve 1/2 NPT and QS-3/8, 1800 l/min HA-1/2-QS-3/8-U - Festo 190856
The HA-1/2-QS-3/8-U check valve lets compressed air pass in one direction only and blocks the return flow automatically. Main values: ports 1/2 NPT and QS-3/8, nominal flow 1800 l/min, operating pressure -1 to 10 bar. Housing made of brass, ambient temperature 0 to 60 °C. Weight 70 g.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
1800 l/min standard nominal flow rate: the HA-1/2-QS-3/8-U check valve lets compressed air pass in one direction only and blocks the return flow automatically.
Benefits
- Flow rate: standard nominal flow rate 1800 l/min
- Pressure range: -1 to 10 bar operating pressure, opens from 0.1 bar differential pressure
- Connections: 1/2 NPT, QS-3/8
- Paint compatibility: LABS conformity VDMA24364-B1/B2-L
- Materials: housing brass
- Temperature: 0 to 60 °C ambient temperature
Applications
Used in compressed air lines where flow may only pass in one direction, for example to protect reservoirs or sub-circuits. Operating medium: compressed air to ISO 8573-1:2010 [7:-:-]. Mounting: screw-in. Lubricated operation possible, then required.
Technical data
| Type | HA-1/2-QS-3/8-U |
|---|---|
| Festo part number | 190856 |
| Valve function | Non-return function |
| Pneumatic connection, port 1 | 1/2 NPT |
| Pneumatic connection, port 2 | QS-3/8 |
| Type of mounting | Screw-in |
| Standard nominal flow rate | 1800 l/min |
| Operating pressure | -1 to 10 bar |
| Ambient temperature | 0 to 60 °C |
| Material housing | Brass |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Min. differential pressure, opening | 0.1 bar |
| Min. differential pressure, closing | 0.2 bar |
| Note on operating and pilot medium | Lubricated operation possible (then required for further operation) |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Product weight | 67 g |
| Note on materials | RoHS-compliant |
| Weight (shipping) | 70 g |
| Weight | 0.07 kg |
| Manufacturer | Festo |
| Hersteller-Nr | HA-1/2-QS-3/8-U |
| EAN | 4052568324322 |
| Zolltarifnummer | 84813099 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Brass |
| Thread | NPT 1/2 |
| Housing material | Brass |
| Medium | Compressed air |
| Function | Check function |
| Flow rate [l/min] | 1800 |
| Series | HA |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | NPT 1/2 |
| Temperaturbereich | 0-60 °C |
| Temperature (max.) | 60 |
