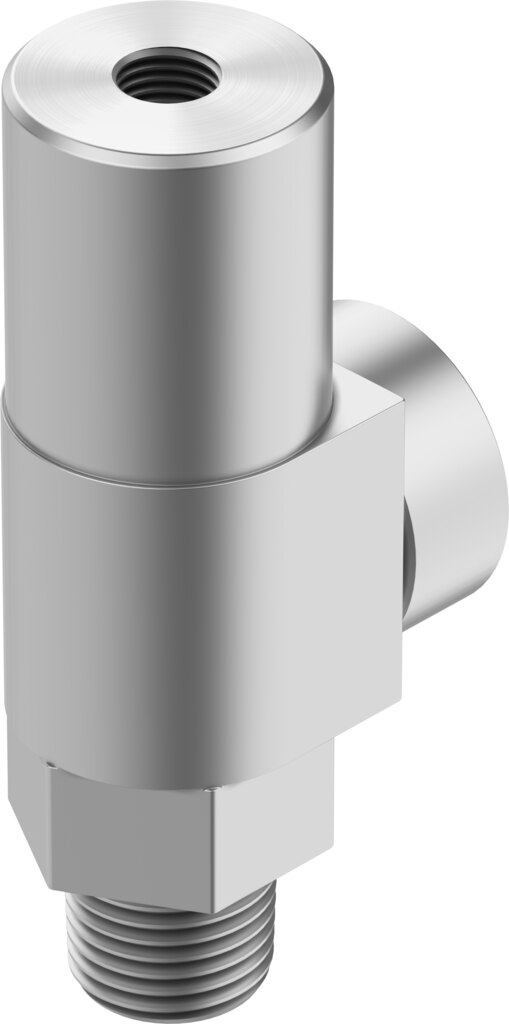

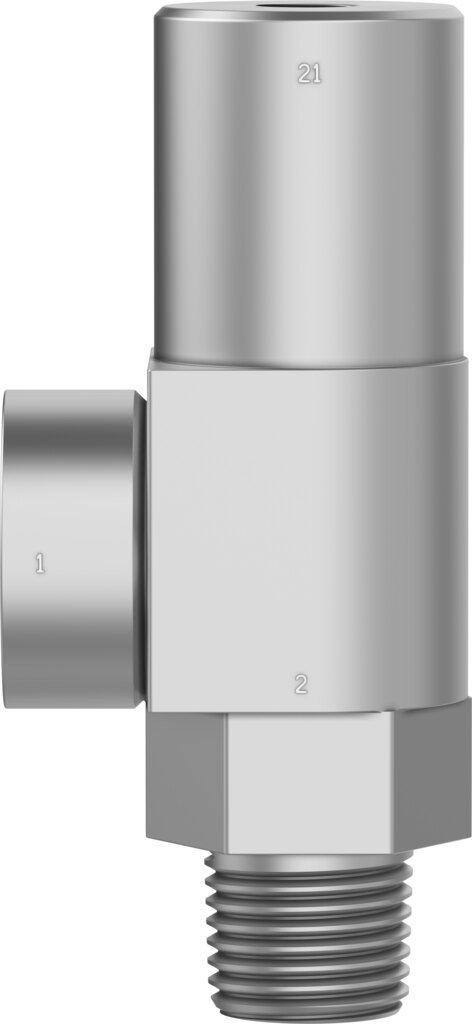

Piloted check valve HGL-1/2-NPT - Festo 34880
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Valve function | Piloted non-return function |
|---|---|
| Pneumatic connection, port 1 | 1/2 NPT |
| Pneumatic connection, port 2 | 1/2 NPT |
| Type of mounting | Screw-in |
| Standard nominal flow rate (standardised to DIN 1343) | 0 ... 1600 l/min |
| Operating pressure | 0.2 ... 10 bar |
| Pilot pressure | 1 ... 10 bar |
| Ambient temperature | -20 ... 80 °C |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -20 ... 80 °C |
| Note on materials | RoHS compliant |
| Weight | 0.24 kg |
| Manufacturer | Festo |
| Hersteller-Nr | HGL-1/2-NPT |
| EAN | 4052568305871 |
| Zolltarifnummer | 84813099 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
Downloads
Questions about this item
Any other question?
Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
