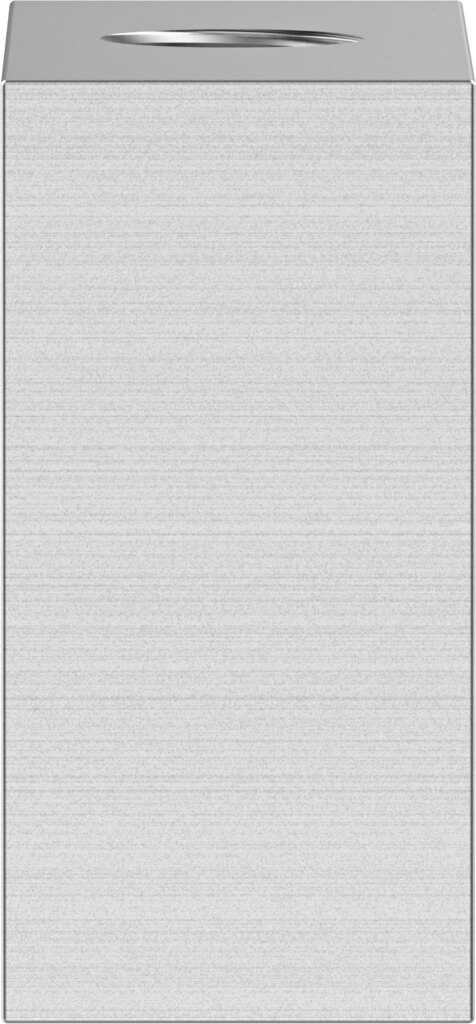

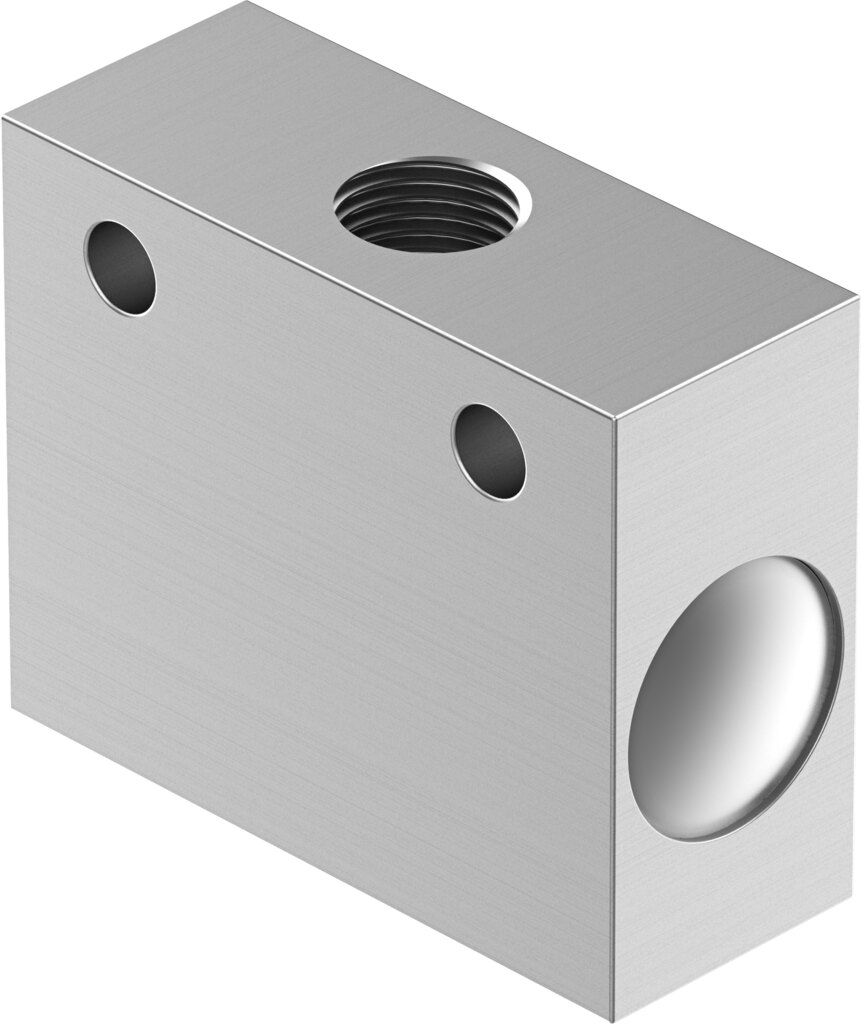

OR gate 1/8 NPT, 500 l/min, operating pressure 1 to 10 bar OS-1/8-NPT - Festo 10412

Festo ✓ Original product Brand new

The OS-1/8-NPT OR gate passes on a pressure signal as soon as pressure is applied to either of its two inputs. Key data: port 1/8 NPT, nominal flow 500 l/min, operating pressure 1 to 10 bar. Housing made of wrought aluminium alloy, seals made of NBR, ambient temperature -10 to 60 °C. Weight 45 g.

Net
€36.16
excl. VAT
Item FES-10412
Manufacturer no. OS-1/8-NPT
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

500 l/min standard nominal flow rate: the OS-1/8-NPT OR gate passes on a pressure signal as soon as pressure is applied to either of its two inputs.

Benefits

  • Flow rate: standard nominal flow rate 500 l/min
  • Pressure range: 1 to 10 bar operating pressure
  • Connections: 1/8 NPT
  • Paint compatibility: LABS conformity VDMA24364-B1/B2-L
  • Materials: housing wrought aluminium alloy, seals NBR
  • Temperature: -10 to 60 °C ambient temperature

Applications

Used in pneumatic control systems where a signal is to be triggered from two locations. Operating medium: compressed air to ISO 8573-1:2010 [7:-:-]. Mounting: with through-hole. Once lubricated, lubrication must continue.

Technical data

TypeOS-1/8-NPT
Festo part number10412
Valve functionOR function
Pneumatic connection, port 11/8 NPT
Pneumatic connection, port 21/8 NPT
Type of mountingWith through-hole
Standard nominal flow rate500 l/min
Operating pressure1 to 10 bar
Ambient temperature-10 to 60 °C
Material housingWrought aluminium alloy
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Nominal size4 mm
Mounting positionAny
Note on operating and pilot mediumLubricated operation possible (then required for further operation)
LABS (PWIS) conformityVDMA24364-B1/B2-L
Medium temperature-10 to 60 °C
Product weight45 g
Pneumatic connection, port 31/8 NPT
Note on materialsRoHS-compliant
Material sealsNBR
Weight (shipping)45 g
Weight0.045 kg
ManufacturerFesto
Hersteller-NrOS-1/8-NPT
EAN4052568303600
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadNPT 1/8
Nominal size DN [mm]4
Seal materialNBR
MediumCompressed air
FunctionOR function
Flow rate [l/min]500
SeriesOS
Betriebsdruck max [bar]10
Pneumatic connectionNPT 1/8
Temperaturbereich-10-60 °C
Temperature (max.)60
