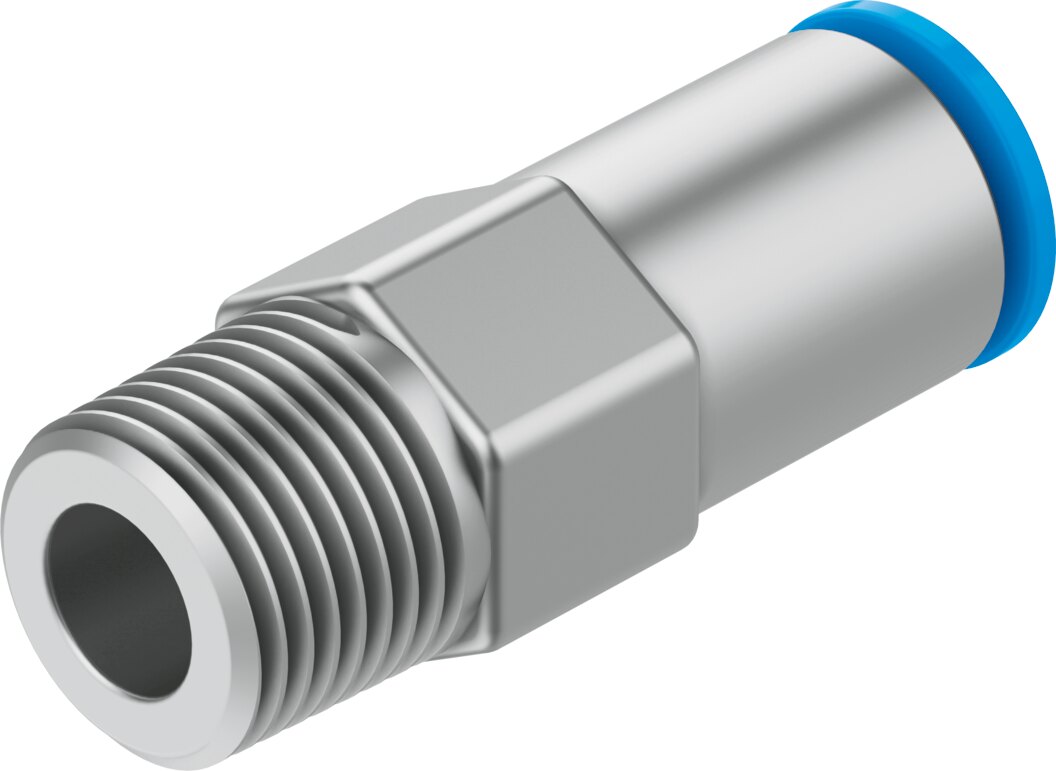

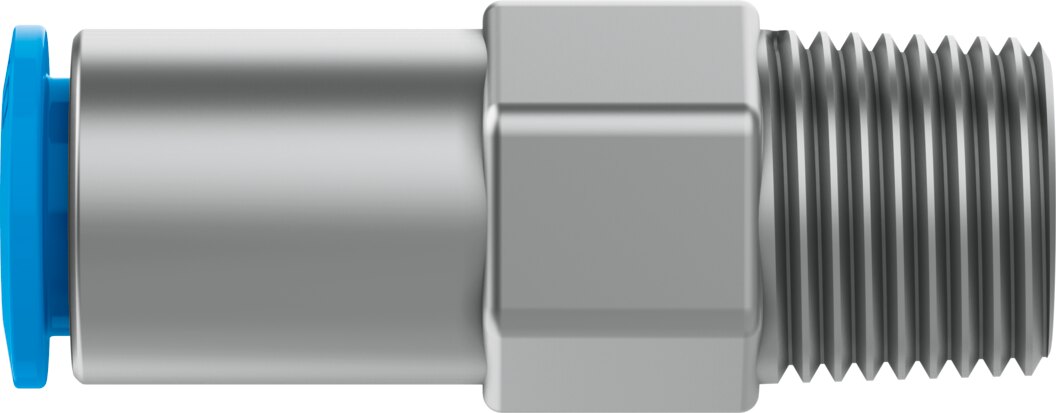

Check valve 1/8 NPT and QS-5/16, 330 l/min HB-1/8-QS-5/16-U - Festo 190861

Festo ✓ Original product Brand new

HB-1/8-QS-5/16-U blocks the reverse direction automatically, while compressed air flows freely in the flow direction. Key data: ports 1/8 NPT and QS-5/16, nominal flow 330 l/min, operating pressure -1 to 10 bar. Housing made of brass, ambient temperature 0 to 60 °C. Weight 22 g.

Net
€23.84
excl. VAT
Item FES-190861
Manufacturer no. HB-1/8-QS-5/16-U
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

330 l/min standard nominal flow rate: HB-1/8-QS-5/16-U blocks the reverse direction automatically, while compressed air flows freely in the flow direction.

Benefits

  • Flow rate: standard nominal flow rate 330 l/min
  • Pressure range: -1 to 10 bar operating pressure, opens from 0.1 bar differential pressure
  • Connections: QS-5/16, 1/8 NPT
  • Paint compatibility: LABS conformity VDMA24364-B1/B2-L
  • Materials: housing brass
  • Temperature: 0 to 60 °C ambient temperature

Applications

Used in compressed air lines where flow may only pass in one direction, for example to protect reservoirs or sub-circuits. Operating medium: compressed air to ISO 8573-1:2010 [7:-:-]. Mounting: screw-in. Lubricated operation possible, then required.

Technical data

TypeHB-1/8-QS-5/16-U
Festo part number190861
Valve functionNon-return function
Pneumatic connection, port 1QS-5/16
Pneumatic connection, port 21/8 NPT
Type of mountingScrew-in
Standard nominal flow rate330 l/min
Operating pressure-1 to 10 bar
Ambient temperature0 to 60 °C
Material housingBrass
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Min. differential pressure, opening0.1 bar
Min. differential pressure, closing0.2 bar
Note on operating and pilot mediumLubricated operation possible (then required for further operation)
LABS (PWIS) conformityVDMA24364-B1/B2-L
Product weight22 g
Note on materialsRoHS-compliant
Weight (shipping)22 g
Weight0.022 kg
ManufacturerFesto
Hersteller-NrHB-1/8-QS-5/16-U
EAN4052568324377
Zolltarifnummer84813099
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialBrass
ThreadNPT 1/8
Housing materialBrass
MediumCompressed air
FunctionCheck function
Flow rate [l/min]330
SeriesHB
Betriebsdruck max [bar]10
Temperaturbereich0-60 °C
Temperature (max.)60
