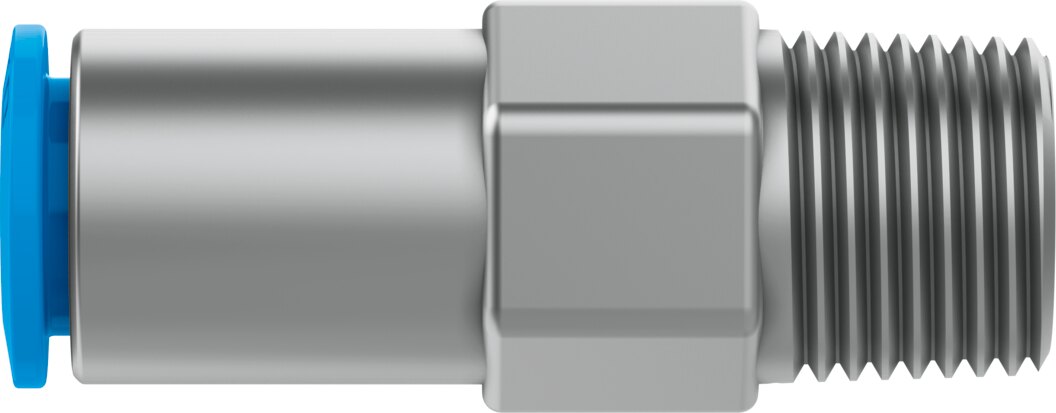

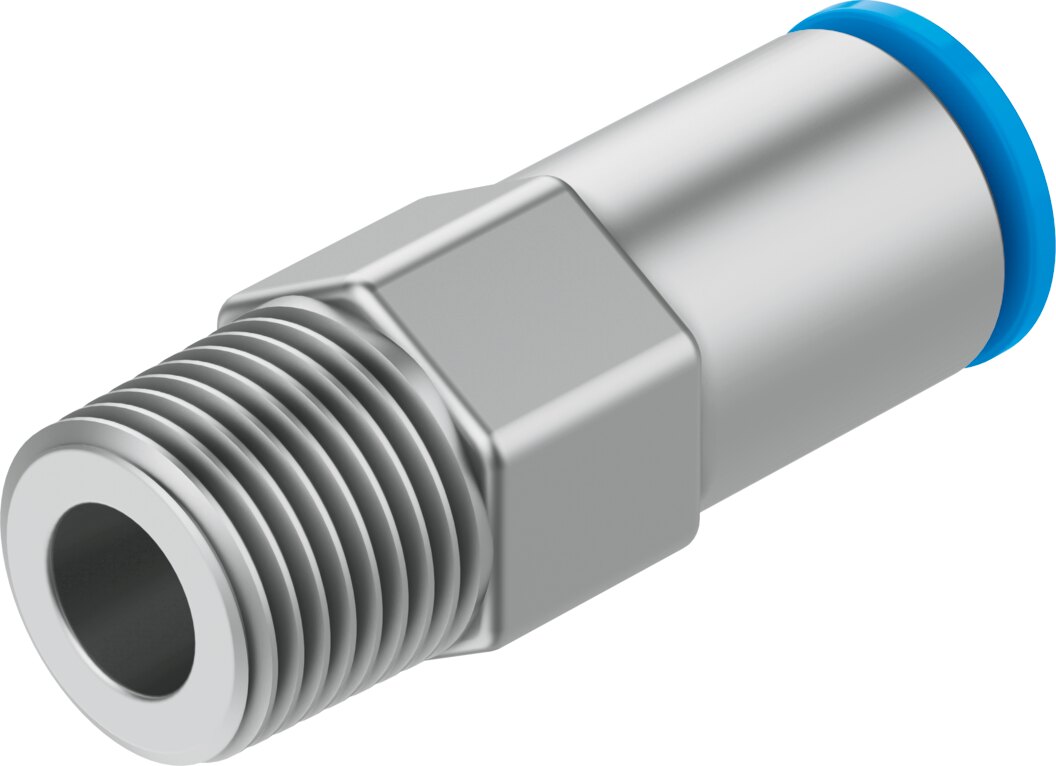

Check valve 3/8 NPT and QS-3/8, 1700 l/min HA-3/8-QS-3/8-U - Festo 190855

Festo ✓ Original product Brand new

The HA-3/8-QS-3/8-U check valve lets compressed air pass in one direction only and blocks the return flow automatically. At a glance: ports 3/8 NPT and QS-3/8, nominal flow 1700 l/min, operating pressure -1 to 10 bar. Housing made of brass, ambient temperature 0 to 60 °C. Weight 48 g.

Net
€53.18
excl. VAT
Item FES-190855
Manufacturer no. HA-3/8-QS-3/8-U
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

1700 l/min standard nominal flow rate: the HA-3/8-QS-3/8-U check valve lets compressed air pass in one direction only and blocks the return flow automatically.

Benefits

  • Flow rate: standard nominal flow rate 1700 l/min
  • Pressure range: -1 to 10 bar operating pressure, opens from 0.1 bar differential pressure
  • Connections: 3/8 NPT, QS-3/8
  • Paint compatibility: LABS conformity VDMA24364-B1/B2-L
  • Materials: housing brass
  • Temperature: 0 to 60 °C ambient temperature

Applications

Used in compressed air lines where flow may only pass in one direction, for example to protect reservoirs or sub-circuits. Operating medium: compressed air to ISO 8573-1:2010 [7:-:-]. Mounting: screw-in. Lubricated operation possible, then required.

Technical data

TypeHA-3/8-QS-3/8-U
Festo part number190855
Valve functionNon-return function
Pneumatic connection, port 13/8 NPT
Pneumatic connection, port 2QS-3/8
Type of mountingScrew-in
Standard nominal flow rate1700 l/min
Operating pressure-1 to 10 bar
Ambient temperature0 to 60 °C
Material housingBrass
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Min. differential pressure, opening0.1 bar
Min. differential pressure, closing0.2 bar
Note on operating and pilot mediumLubricated operation possible (then required for further operation)
LABS (PWIS) conformityVDMA24364-B1/B2-L
Product weight48 g
Note on materialsRoHS-compliant
Weight (shipping)48 g
Weight0.048 kg
ManufacturerFesto
Hersteller-NrHA-3/8-QS-3/8-U
EAN4052568324315
Zolltarifnummer84813099
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialBrass
ThreadNPT 3/8
Housing materialBrass
MediumCompressed air
FunctionCheck function
Flow rate [l/min]1700
SeriesHA
Betriebsdruck max [bar]10
Pneumatic connectionNPT 3/8
Temperaturbereich0-60 °C
Temperature (max.)60
