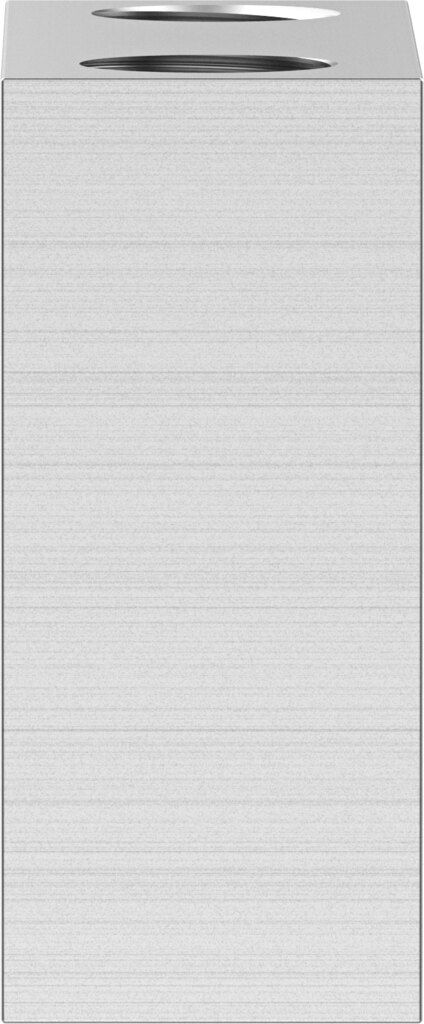

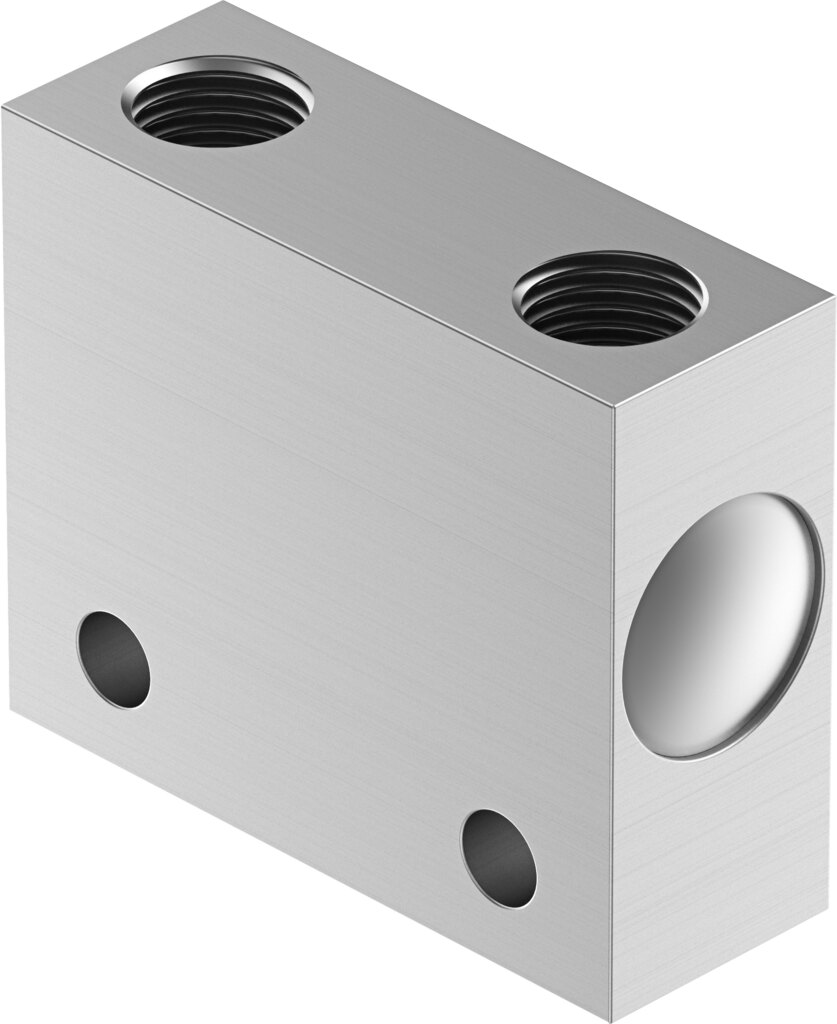

OR gate 1/4 NPT, 1170 l/min, operating pressure 1 to 10 bar OS-1/4-NPT - Festo 10413
The OS-1/4-NPT OR gate passes on a pressure signal as soon as pressure is applied to either of its two inputs. Main values: port 1/4 NPT, nominal flow 1170 l/min, operating pressure 1 to 10 bar. Housing made of wrought aluminium alloy, seals made of NBR, ambient temperature -10 to 60 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
1170 l/min standard nominal flow rate: the OS-1/4-NPT OR gate passes on a pressure signal as soon as pressure is applied to either of its two inputs.
Benefits
- Flow rate: standard nominal flow rate 1170 l/min
- Pressure range: 1 to 10 bar operating pressure
- Connections: 1/4 NPT
- Paint compatibility: LABS conformity VDMA24364-B1/B2-L
- Materials: housing wrought aluminium alloy, seals NBR
- Temperature: -10 to 60 °C ambient temperature
Applications
Used in pneumatic control systems where a signal is to be triggered from two locations. Operating medium: compressed air to ISO 8573-1:2010 [7:-:-]. Mounting: with through-hole. Lubricated operation possible, then required.
Technical data
| Type | OS-1/4-NPT |
|---|---|
| Festo part number | 10413 |
| Valve function | OR function |
| Pneumatic connection, port 1 | 1/4 NPT |
| Pneumatic connection, port 2 | 1/4 NPT |
| Type of mounting | With through-hole |
| Standard nominal flow rate | 1170 l/min |
| Operating pressure | 1 to 10 bar |
| Ambient temperature | -10 to 60 °C |
| Material housing | Wrought aluminium alloy |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Nominal size | 6.5 mm |
| Mounting position | Any |
| Note on operating and pilot medium | Lubricated operation possible (then required for further operation) |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Medium temperature | -10 to 60 °C |
| Product weight | 110 g |
| Pneumatic connection, port 3 | 1/4 NPT |
| Note on materials | RoHS-compliant |
| Material seals | NBR |
| Weight (shipping) | 100 g |
| Weight | 0.1 kg |
| Manufacturer | Festo |
| Hersteller-Nr | OS-1/4-NPT |
| EAN | 4052568303617 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium |
| Thread | NPT 1/4 |
| Nominal size DN [mm] | 6,5 |
| Seal material | NBR |
| Medium | Compressed air |
| Function | OR function |
| Flow rate [l/min] | 1170 |
| Series | OS |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | NPT 1/4 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
