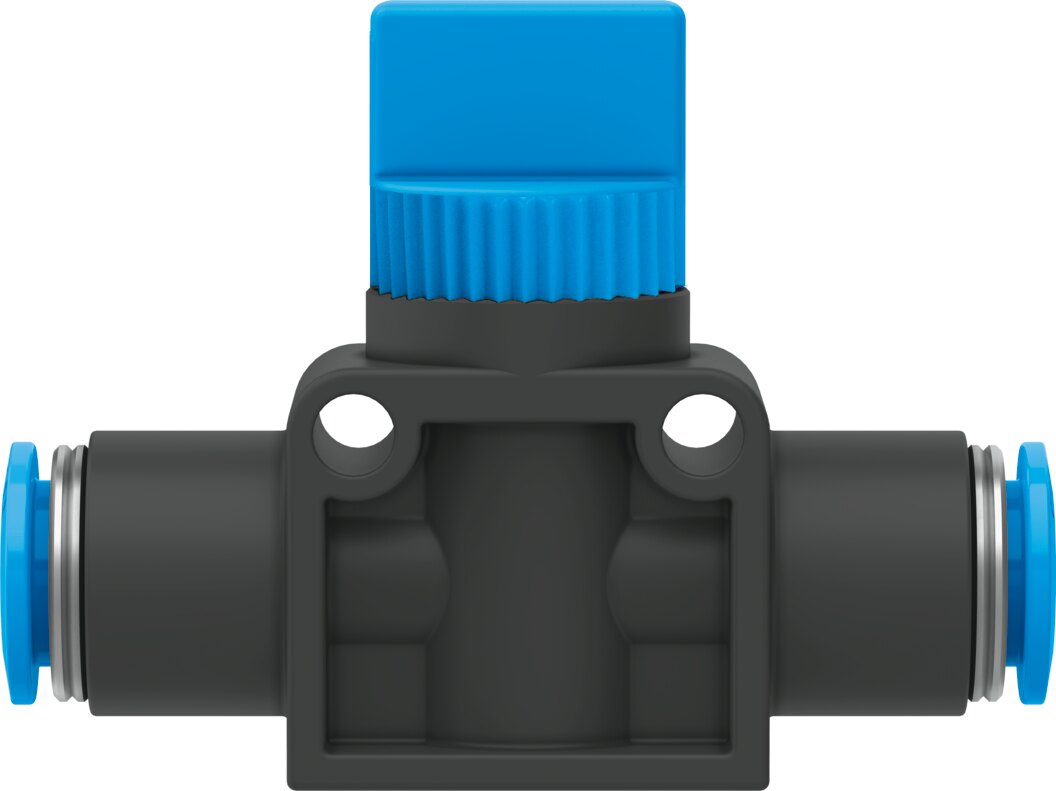

Shut-off valve 2/2-way, QS-5/16, 415.8 l/min HE-2-QS-5/16-U - Festo 153982
The manually operated HE-2-QS-5/16-U shut-off valve opens and blocks the air supply directly in the line. Key data: port QS-5/16, nominal flow 415.8 l/min, operating pressure -0.95 to 10 bar. Housing made of reinforced PBT, seals made of NBR, ambient temperature 0 to 60 °C. Weight 29 g.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
415.8 l/min standard nominal flow rate: the manually operated HE-2-QS-5/16-U shut-off valve opens and blocks the air supply directly in the line.
Benefits
- Flow rate: standard nominal flow rate 415.8 l/min
- Pressure range: -0.95 to 10 bar operating pressure
- Connections: QS-5/16
- Cleanroom and paint compatibility: class 4 to ISO 14644-1, LABS conformity VDMA24364-B1/B2-L
- Corrosion protection: CRC 2 - moderate corrosion stress
- Materials: housing reinforced PBT, seals NBR
Applications
Used to shut off individual consumers or sub-circuits, for example during maintenance or changeover. Operating medium: compressed air to ISO 8573-1:2010 [7:-:-]. Mounting: inline installation. Lubricated operation possible, then required.
Technical data
| Type | HE-2-QS-5/16-U |
|---|---|
| Festo part number | 153982 |
| Valve function | 2/2-way, bistable |
| Pneumatic connection, port 1 | QS-5/16 |
| Pneumatic connection, port 2 | QS-5/16 |
| Type of actuation | Manual |
| Type of mounting | Inline installation |
| Standard nominal flow rate | 415.8 l/min |
| Nominal size | 3.5 mm |
| Operating pressure | -0.95 to 10 bar |
| Ambient temperature | 0 to 60 °C |
| Material housing | Reinforced PBT |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Sealing principle | Soft |
| Mounting position | Any |
| Design | Piston spool |
| Type of piloting | Direct |
| Flow direction | Reversible |
| Note on operating and pilot medium | Lubricated operation possible (then required for further operation) |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom suitability (measured to ISO 14644-14) | Class 4 to ISO 14644-1 |
| Medium temperature | 0 to 60 °C |
| Product weight | 26 g |
| Note on materials | RoHS-compliant |
| Material seals | NBR |
| Weight (shipping) | 29 g |
| Weight | 0.029 kg |
| Manufacturer | Festo |
| Hersteller-Nr | HE-2-QS-5/16-U |
| EAN | 4052568311377 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | PBT |
| Nominal size DN [mm] | 3,5 |
| Seal material | NBR |
| Medium | Compressed air |
| Function | 2/2 bistable |
| Flow rate [l/min] | 415,8 |
| Actuation type | Manually |
| Series | HE |
| Betriebsdruck max [bar] | 10 |
| Temperaturbereich | 0-60 °C |
| Temperature (max.) | 60 |
