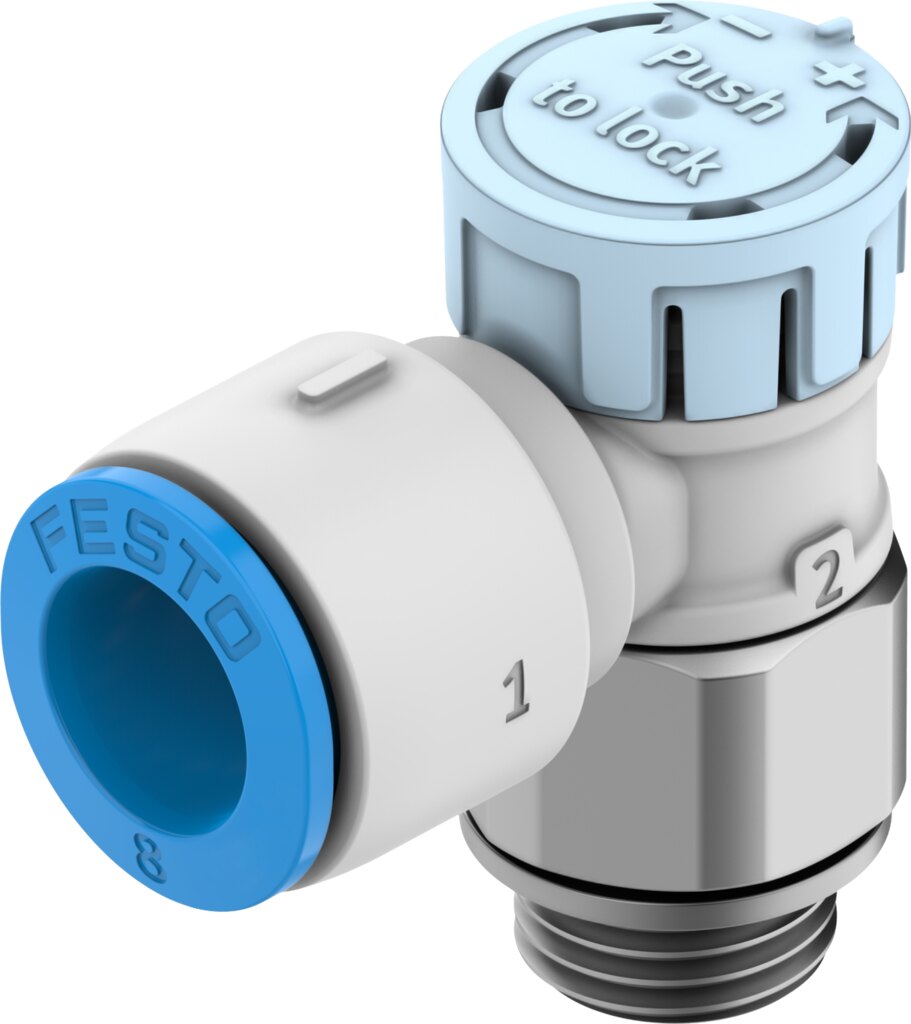

One-way flow control valve for exhaust air, 1/2 NPT and QB-3/8, 5313.56 l/min GRLA-1/2-QB-3/8-U - Festo 564846
The GRLA-1/2-QB-3/8-U one-way flow control valve sets the speed of a cylinder via the exhaust air. Main values: ports 1/2 NPT and QB-3/8, nominal flow in flow control direction 5313.56 l/min, operating pressure -0.951 to 7.998 bar. Seals made of NBR, ambient temperature 0 to 60 °C. Weight 110 g.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
5313.56 l/min standard nominal flow rate in flow control direction: the GRLA-1/2-QB-3/8-U one-way flow control valve sets the speed of a cylinder via the exhaust air. The return flow of 4093.22 to 5427.966 l/min passes freely through the check valve.
Benefits
- Flow rate: standard nominal flow rate in flow control direction 5313.56 l/min, in non-return direction 4093.22 to 5427.966 l/min
- Pressure range: -0.951 to 7.998 bar operating pressure
- Connections: QB-3/8, 1/2 NPT
- Paint compatibility: LABS conformity VDMA24364 zone III
- Materials: seals NBR
- Temperature: 0 to 60 °C ambient temperature
Applications
Used on double-acting cylinders, usually directly in the cylinder port. Operating medium: compressed air to ISO 8573-1:2010 [7:4:4]. Mounting: screw-in, with male thread. Once lubricated, lubrication must continue.
Technical data
| Type | GRLA-1/2-QB-3/8-U |
|---|---|
| Festo part number | 564846 |
| Valve function | Exhaust air one-way flow control function |
| Pneumatic connection, port 1 | QB-3/8 |
| Pneumatic connection, port 2 | 1/2 NPT |
| Type of actuation | Manual |
| Adjustment component | Slotted screw |
| Type of mounting | Screw-in, with male thread |
| Standard nominal flow rate in flow control direction | 5313.56 l/min |
| Standard nominal flow rate in non-return direction | 4093.22 to 5427.966 l/min |
| Ambient temperature | 0 to 60 °C |
| Mounting position | Any |
| Operating pressure, full temperature range | -0.951 to 7.998 bar |
| Standard flow rate in flow control direction (6 to 0 bar) | 7589 l/min |
| Standard flow rate in non-return direction (6 to 0 bar) | 7588.983 to 7894.068 l/min |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (then required for further operation) |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Medium temperature | 0 to 60 °C |
| Max. tightening torque | 28.065 Nm |
| Product weight | 109.147 g |
| Material screw-in stud | Nickel-plated brass |
| Note on materials | RoHS-compliant |
| Material seals | NBR |
| Material banjo bolt | Nickel-plated brass |
| Material release ring | POM |
| Material knurled head | Nickel-plated brass |
| Material adjusting screw | Nickel-plated brass |
| Material swivel fitting | Reinforced PBT |
| Weight (shipping) | 110 g |
| Weight | 0.11 kg |
| Manufacturer | Festo |
| Hersteller-Nr | GRLA-1/2-QB-3/8-U |
| EAN | 4052568367190 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | NPT 1/2 |
| Seal material | NBR |
| Medium | Compressed air |
| Function | Exhaust air throttle check valve function |
| Actuation type | Manually |
| Series | GRLA |
| Betriebsdruck max [bar] | 7 |
| Temperaturbereich | 0-60 °C |
| Temperature (max.) | 60 |
