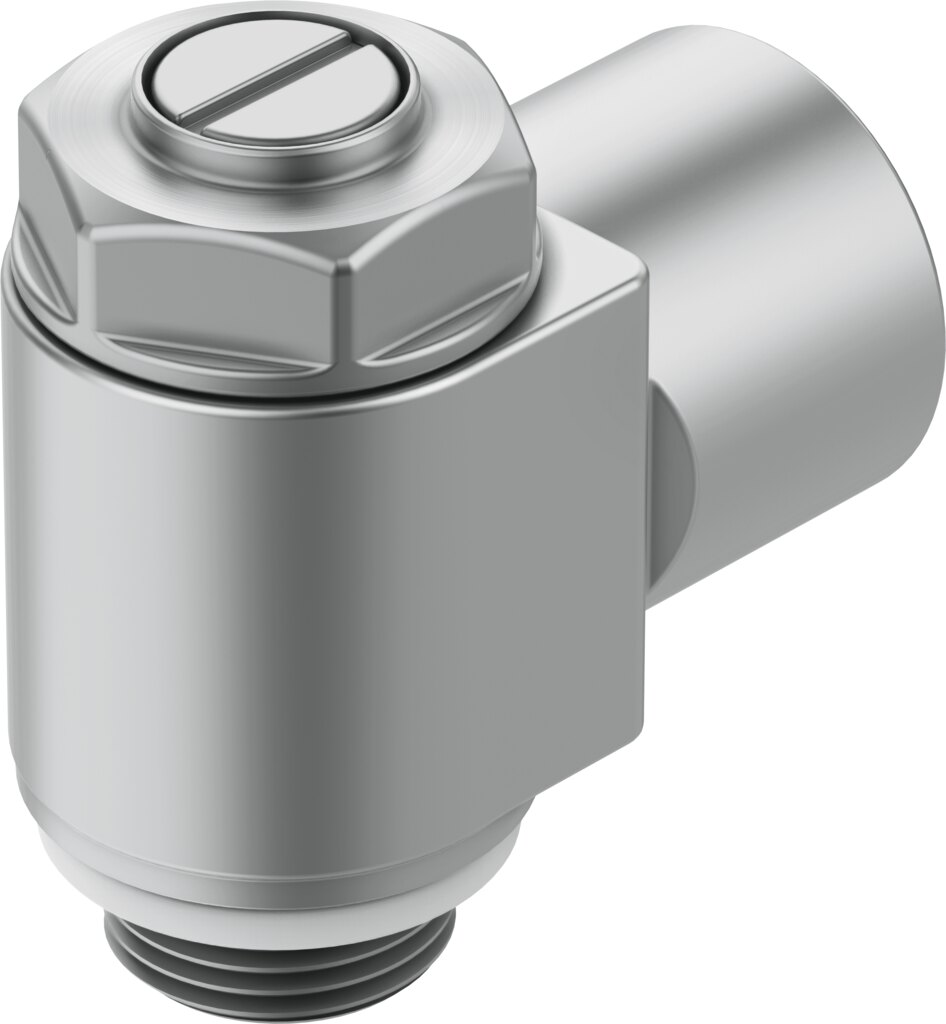

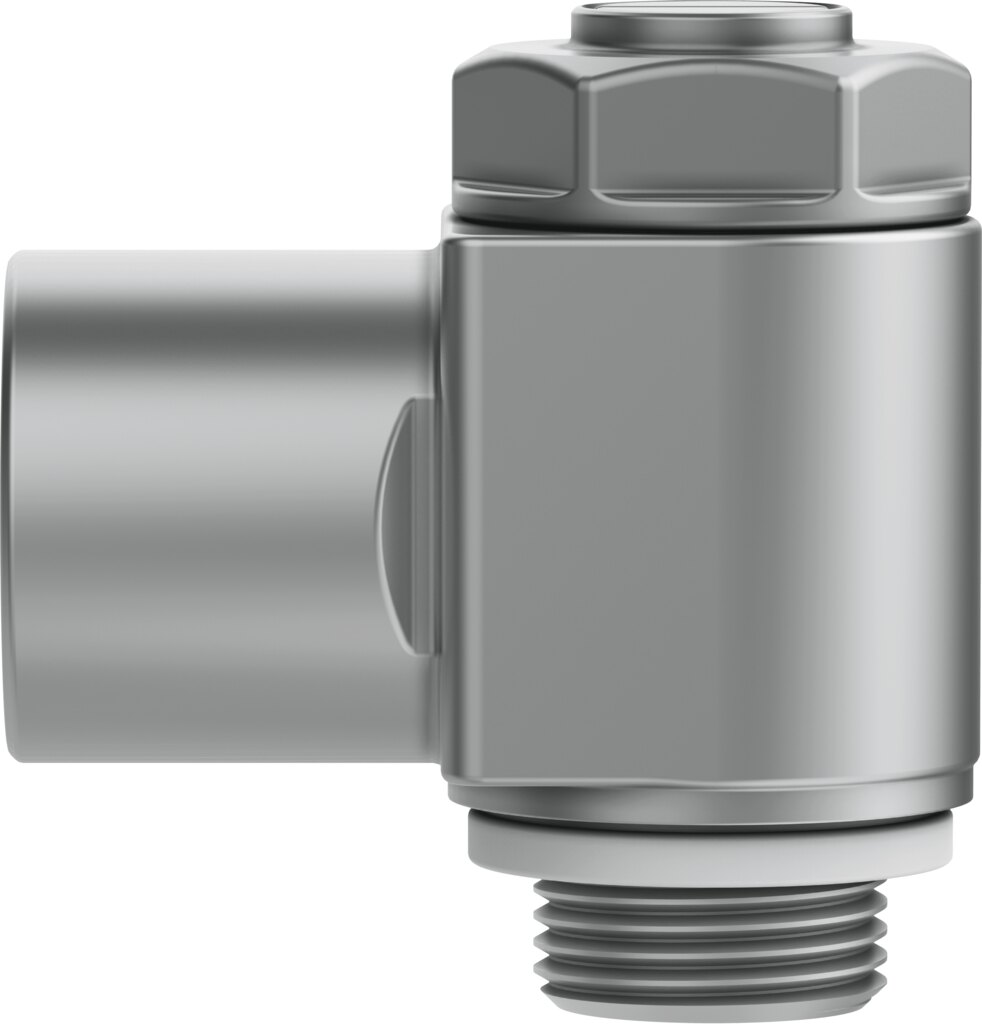

One-way flow control valve for exhaust air, 1/4 NPT, 610 l/min GRLA-1/4-NPT-B - Festo 151547
GRLA-1/4-NPT-B throttles the exhaust air of a cylinder and so determines its speed. At a glance: port 1/4 NPT, nominal flow in flow control direction 610 l/min, operating pressure 0.3 to 10 bar. In the non-return direction, 450 to 820 l/min pass unthrottled. Weight 60 g.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
610 l/min standard nominal flow rate in flow control direction: GRLA-1/4-NPT-B throttles the exhaust air of a cylinder and so determines its speed. In the non-return direction, 450 to 820 l/min pass unthrottled.
Benefits
- Flow rate: standard nominal flow rate in flow control direction 610 l/min, in non-return direction 450 to 820 l/min
- Pressure range: 0.3 to 10 bar operating pressure
- Connections: Female thread 1/4 NPT, Male thread 1/4 NPT
- Cleanroom and paint compatibility: class 4 to ISO 14644-1, LABS conformity VDMA24364-B2-L
- Materials: seals NBR
- Temperature: -10 to 60 °C ambient temperature
Applications
It is typically installed directly in the port of a double-acting cylinder. Operating medium: compressed air to ISO 8573-1:2010 [7:4:4]. Mounting: screw-in. Lubricated operation possible, then required.
Technical data
| Type | GRLA-1/4-NPT-B |
|---|---|
| Festo part number | 151547 |
| Valve function | Exhaust air one-way flow control function |
| Pneumatic connection, port 1 | Female thread 1/4 NPT |
| Pneumatic connection, port 2 | Male thread 1/4 NPT |
| Adjustment component | Slotted screw |
| Type of mounting | Screw-in |
| Standard nominal flow rate in flow control direction | 610 l/min |
| Standard nominal flow rate in non-return direction | 450 to 820 l/min |
| Ambient temperature | -10 to 60 °C |
| Mounting position | Any |
| Operating pressure, full temperature range | 0.3 to 10 bar |
| Standard flow rate in flow control direction (6 to 0 bar) | 1200 l/min |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (then required for further operation) |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Cleanroom suitability (measured to ISO 14644-14) | Class 4 to ISO 14644-1 |
| Medium temperature | -10 to 60 °C |
| Nominal size | 6 mm |
| Max. tightening torque | 11 Nm |
| Material screw-in stud | Wrought aluminium alloy |
| Note on materials | RoHS-compliant |
| Material seals | NBR |
| Material adjusting screw | Brass |
| Material swivel fitting | Die-cast zinc |
| Weight (shipping) | 60 g |
| Weight | 0.06 kg |
| Manufacturer | Festo |
| Hersteller-Nr | GRLA-1/4-NPT-B |
| EAN | 4052568310103 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | NPT 1/4 |
| Nominal size DN [mm] | 6 |
| Seal material | NBR |
| Medium | Compressed air |
| Function | Exhaust air throttle check valve function |
| Flow rate [l/min] | 610 |
| Series | GRLA |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | NPT 1/4 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
