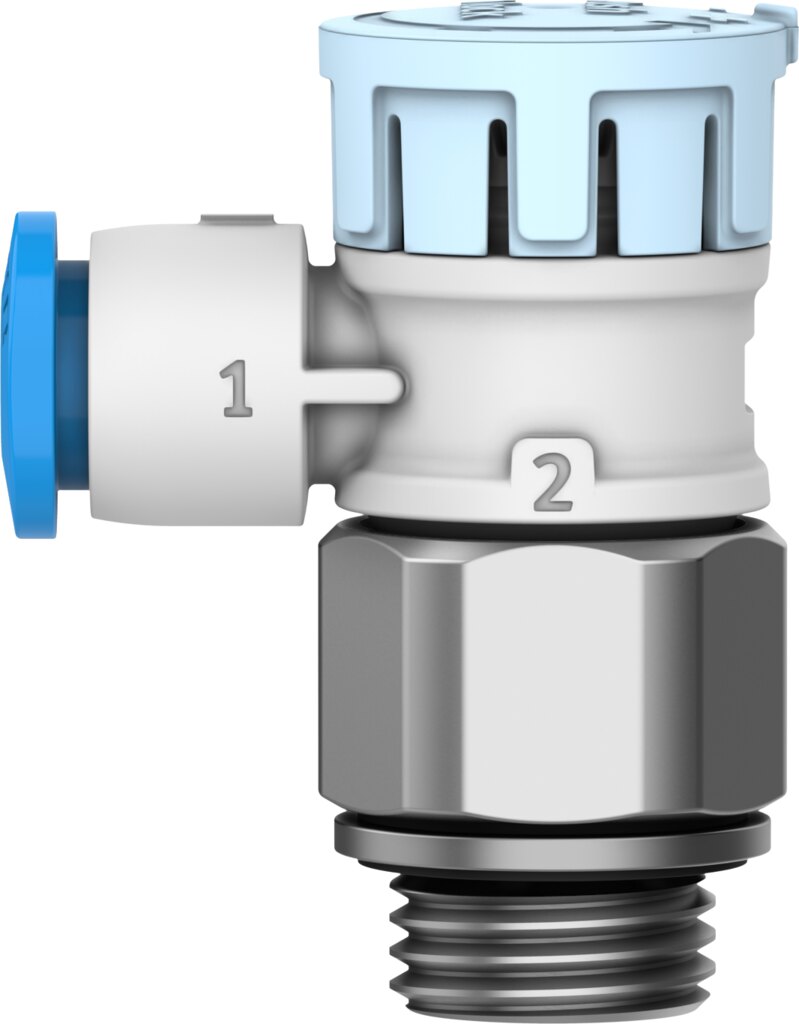

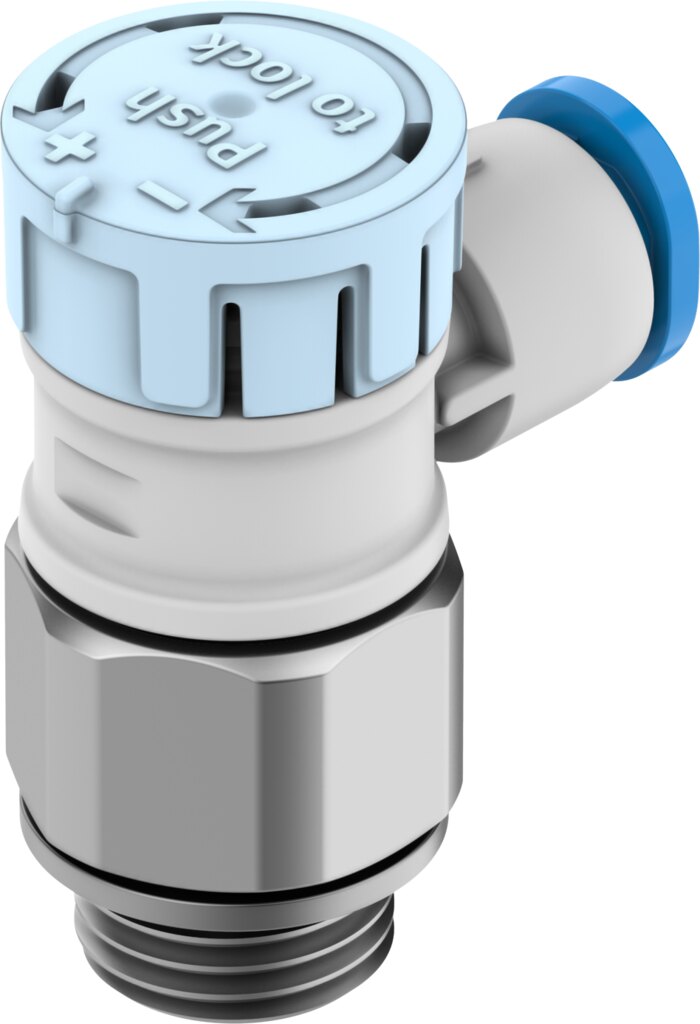

One-way flow control valve for supply air, G1/8 and QS-4, 165 l/min VFOE-LS-T-G18-Q4-F1A - Festo 8224003
The VFOE-LS-T-G18-Q4-F1A one-way flow control valve sets the speed of an actuator via the supply air. At a glance: ports G1/8 and QS-4, nominal flow in flow control direction 165 l/min, operating pressure 0.2 to 10 bar. In the non-return direction, 90 to 165 l/min pass unthrottled. Weight 11 g.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
165 l/min standard nominal flow rate in flow control direction: the VFOE-LS-T-G18-Q4-F1A one-way flow control valve sets the speed of an actuator via the supply air. In the non-return direction, 90 to 165 l/min pass unthrottled.
Benefits
- Flow rate: standard nominal flow rate in flow control direction 165 l/min, in non-return direction 90 to 165 l/min
- Pressure range: 0.2 to 10 bar operating pressure
- Connections: QS-4, G1/8
- Cleanroom and paint compatibility: class 4 to ISO 14644-1, LABS conformity VDMA24364 zone III
- Explosion protection: Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
- Battery production: suitable with reduced Cu/Zn/Ni values (F1a)
Applications
Used where motion is to be controlled via the supply air. Operating medium: compressed air to ISO 8573-1:2010 [7:4:4]. Mounting: screw-in. Lubricated operation possible, then required.
Technical data
| Type | VFOE-LS-T-G18-Q4-F1A |
|---|---|
| Festo part number | 8224003 |
| Valve function | Supply air one-way flow control function |
| Pneumatic connection, port 1 | QS-4 |
| Pneumatic connection, port 2 | G1/8 |
| Type of actuation | Manual |
| Adjustment component | Rotary knob with lock |
| Type of mounting | Screw-in |
| Standard nominal flow rate in flow control direction | 165 l/min |
| Standard nominal flow rate in non-return direction | 90 to 165 l/min |
| Ambient temperature | -10 to 60 °C |
| Material housing | PBT |
| Explosion protection | Observe the note in the certificate, Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| Mounting position | Any |
| Width across flats | 13 mm |
| Rotatability | 360°, no continuous swivelling permitted |
| Operating pressure, full temperature range | 0.2 to 10 bar |
| Standard flow rate in flow control direction (6 to 0 bar) | 260 l/min |
| Standard flow rate in non-return direction (6 to 0 bar) | 240 to 300 l/min |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (then required for further operation) |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Suitability for Li-ion battery production | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability (measured to ISO 14644-14) | Class 4 to ISO 14644-1 |
| Medium temperature | -10 to 60 °C |
| Max. tightening torque | 6 Nm |
| Nominal tightening torque | 5 Nm |
| Tolerance for nominal tightening torque | ± 20 % |
| Product weight | 9.5 g |
| Note on materials | RoHS-compliant |
| Material cover | PBT |
| Material dynamic seals | HNBR |
| Material threaded bolt | Electroless nickel-plated steel |
| Material release ring | PBT |
| Material static seals | NBR |
| Weight (shipping) | 11 g |
| Weight | 0.011 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VFOE-LS-T-G18-Q4-F1A |
| EAN | 4052568771812 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | PBT |
| Thread | G 1/8 |
| For hose OD [mm] | 4 |
| Medium | Compressed air |
| Function | Supply air throttle check valve function |
| Actuation type | Manually |
| Schlüsselweite [mm] | 13 |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | QS-4 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
