One-way flow control valve for exhaust air, QS-4, 120 l/min VFOF-CE-BAH-Q4-Q4 - Festo 8193268
VFOF-CE-BAH-Q4-Q4 controls the piston speed by throttling the exhaust air. At a glance: port QS-4, nominal flow in flow control direction 120 l/min, operating pressure 10 bar, pilot pressure 2 to 10 bar. Housing made of PBT, seals made of NBR, ambient temperature -10 to 60 °C. Weight 24 g.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer

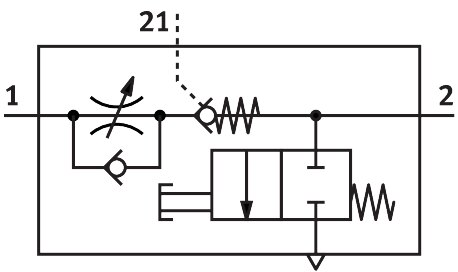

Description
120 l/min standard nominal flow rate in flow control direction: VFOF-CE-BAH-Q4-Q4 controls the piston speed by throttling the exhaust air. In the non-return direction, 210 l/min pass unthrottled. A piloted check valve is integrated as well.
Benefits
- Flow rate: standard nominal flow rate in flow control direction 120 l/min, in non-return direction 210 l/min
- Pressure range: 10 bar operating pressure, pilot pressure 2 to 10 bar
- Connections: QS-4, pilot air 21: QS-4
- Switching times: on 6 ms, off 9 ms
- Paint compatibility: LABS conformity VDMA24364-B1/B2-L
- Explosion protection: Zone 2 (ATEX), Zone 22 (ATEX)
Applications
It is typically installed directly in the port of a double-acting cylinder. Operating medium: compressed air to ISO 8573-1:2010 [7:4:4]. Lubricated operation is possible.
Technical data
| Type | VFOF-CE-BAH-Q4-Q4 |
|---|---|
| Festo part number | 8193268 |
| Valve function | Exhaust air one-way flow control function |
| Additional function | Piloted check valve |
| Pneumatic connection, port 1 | QS-4 |
| Pneumatic connection, port 2 | QS-4 |
| Type of actuation | Manual |
| Pilot air port 21 | QS-4 |
| Standard nominal flow rate in flow control direction | 120 l/min |
| Standard nominal flow rate in non-return direction | 210 l/min |
| Operating pressure | 10 bar |
| Pilot pressure | 2 to 10 bar |
| Ambient temperature | -10 to 60 °C |
| Material housing | PBT |
| Explosion protection | Zone 2 (ATEX), Zone 22 (ATEX) |
| Mounting position | Any |
| Actuation of piloted non-return function | Pneumatic |
| Manual exhaust function | Non-detenting |
| Operating pressure, full temperature range | 0.2 to 10 bar |
| Standard flow rate in flow control direction (6 to 0 bar) | 200 l/min |
| Standard flow rate in non-return direction (6 to 0 bar), actuated | 210 l/min |
| Standard flow rate in non-return direction (6 to 0 bar), unactuated | 210 l/min |
| Standard nominal flow rate in non-return direction, actuated | 125 l/min |
| Standard nominal flow rate in non-return direction, unactuated | 115 l/min |
| Switch-off time | 9 ms |
| Switch-on time | 6 ms |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -20 to 70 °C |
| Medium temperature | -10 to 60 °C |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Permissible actuating torque, adjusting screw | 1 Nm |
| Product weight | 25.1 g |
| Material covering | ES-BE |
| Note on materials | RoHS-compliant |
| Material cover | PBT |
| Material seals | NBR |
| Material sleeve | Wrought aluminium alloy |
| Material release ring | POM |
| Material adjusting screw | Brass |
| Weight (shipping) | 24 g |
| Weight | 0.024 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VFOF-CE-BAH-Q4-Q4 |
| EAN | 4052568641337 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | PBT |
| For hose OD [mm] | 4 |
| Seal material | NBR |
| Medium | Compressed air |
| Function | Exhaust air throttle check valve function |
| Flow rate [l/min] | 120 |
| Actuation type | Manually |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | QS-4 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
