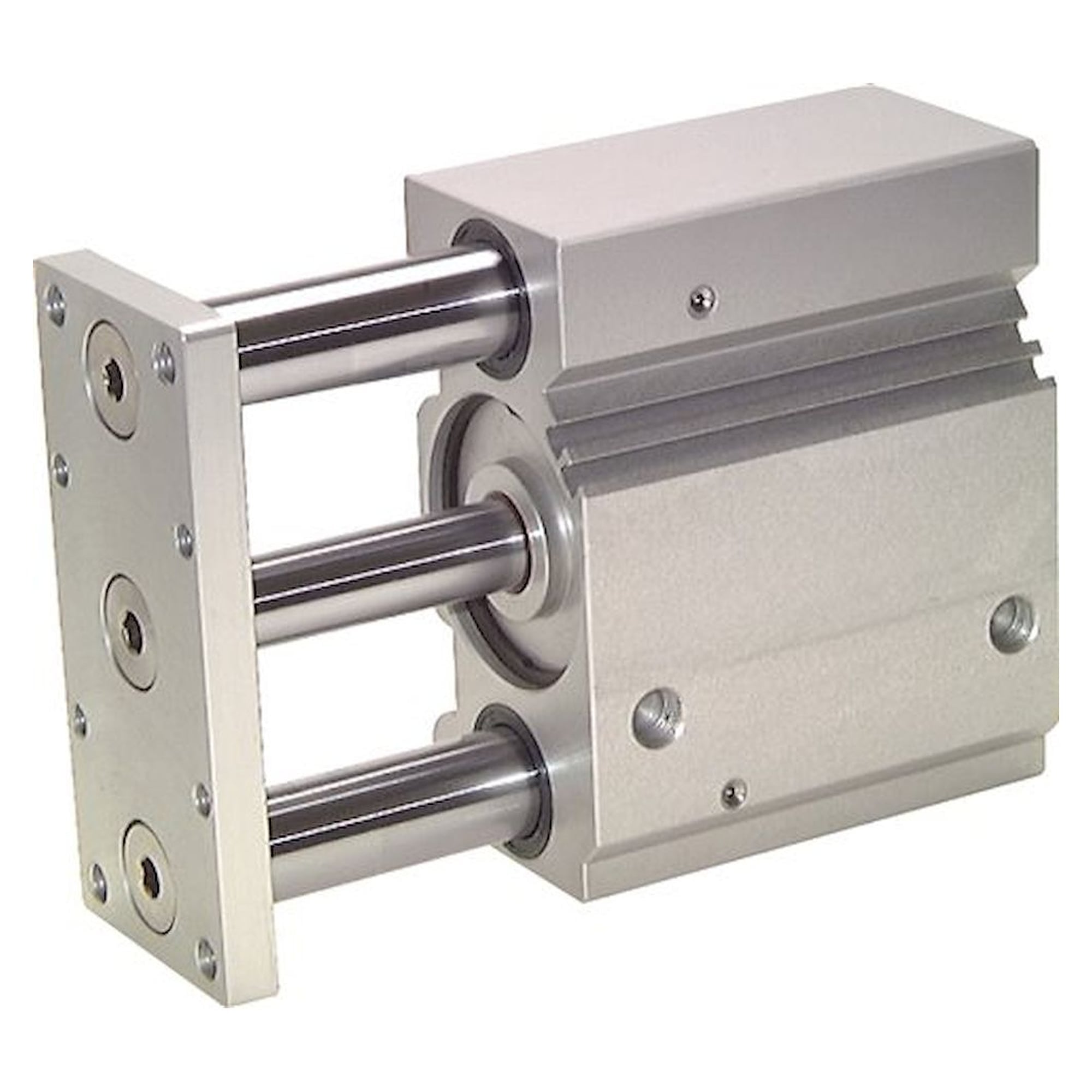

Guide cylinder, with ball bushing, pistons 80mm,stroke 75mm

Images are examples, some edited with AI. The technical data are authoritative. AI notice

Guided cylinder Ø 80 mm, stroke 75 mm, ball bushing guide, magnetic piston, G 1/4 port - Fluidics equipment

Name: Guided cylinder Ø 80 mm, stroke 75 mm, ball bushing guide, magnetic piston, G 1/4 port - Fluidics equipment
Brand: Fluidics equipment
SKU: FL-045919
Price: 1045.31 EUR
Availability: InStock

Fluidics equipment ✓ Original product Brand new

Guided cylinder Ø 80 mm with 75 mm stroke and ball bushing guide for lateral loads up to 864 N. Magnetic piston, end plate torque up to 31.38 Nm, max. 10 bar.

Net

€1,045.31

excl. VAT

Item FL-045919

Manufacturer no. ZDFM 80/75 K

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

With a ball bushing guide and 75 mm stroke this Ø 80 mm cylinder guides its end plate anti-rotation and withstands 864 N lateral force.

Benefits

Permissible lateral force 864 N, torque at end plate 31.38 Nm
Ball bushing guide with hard chrome-plated guide rods
Magnetic piston for end-position sensing with cylinder switches
Numerous mounting options on body and end plate
G 1/4 compressed air port, operating pressure up to 10 bar

Applications

For lifting, pushing and positioning workpieces in automation. Tools and grippers are screwed directly onto the end plate, 75 mm stroke.

Technical data

Type	guided cylinder with magnetic piston
Piston diameter	80 mm
Stroke	75 mm
Guide	ball bushing guide
Compressed air port	G 1/4
Permissible lateral force	864 N
Permissible torque at end plate	31.38 Nm
Body and plate	anodised aluminium
Guide rods and piston rod	hard chrome-plated steel
Piston	aluminium
Seals	NBR / PUR
Operating pressure	max. 10 bar
Temperature range	-20 to +80 °C
Weight	6 kg
Customs tariff number	84123100
Manufacturer	Fluidics equipment
Hersteller-Nr	ZDFM 80/75 K
EAN	4050571811136
Zolltarifnummer	84123100
GPSR Herstellerdaten	A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment
Artikelzustand	New
Artikel-Authentizität	Original product
Thread	G 1/4
Piston Ø [mm]	80
Stroke [mm]	75
Seal material	NBR, PUR
Housing material	Aluminium, anodised
Betriebsdruck max [bar]	10
Temperaturbereich	-20-80 °C
Temperature (max.)	80
