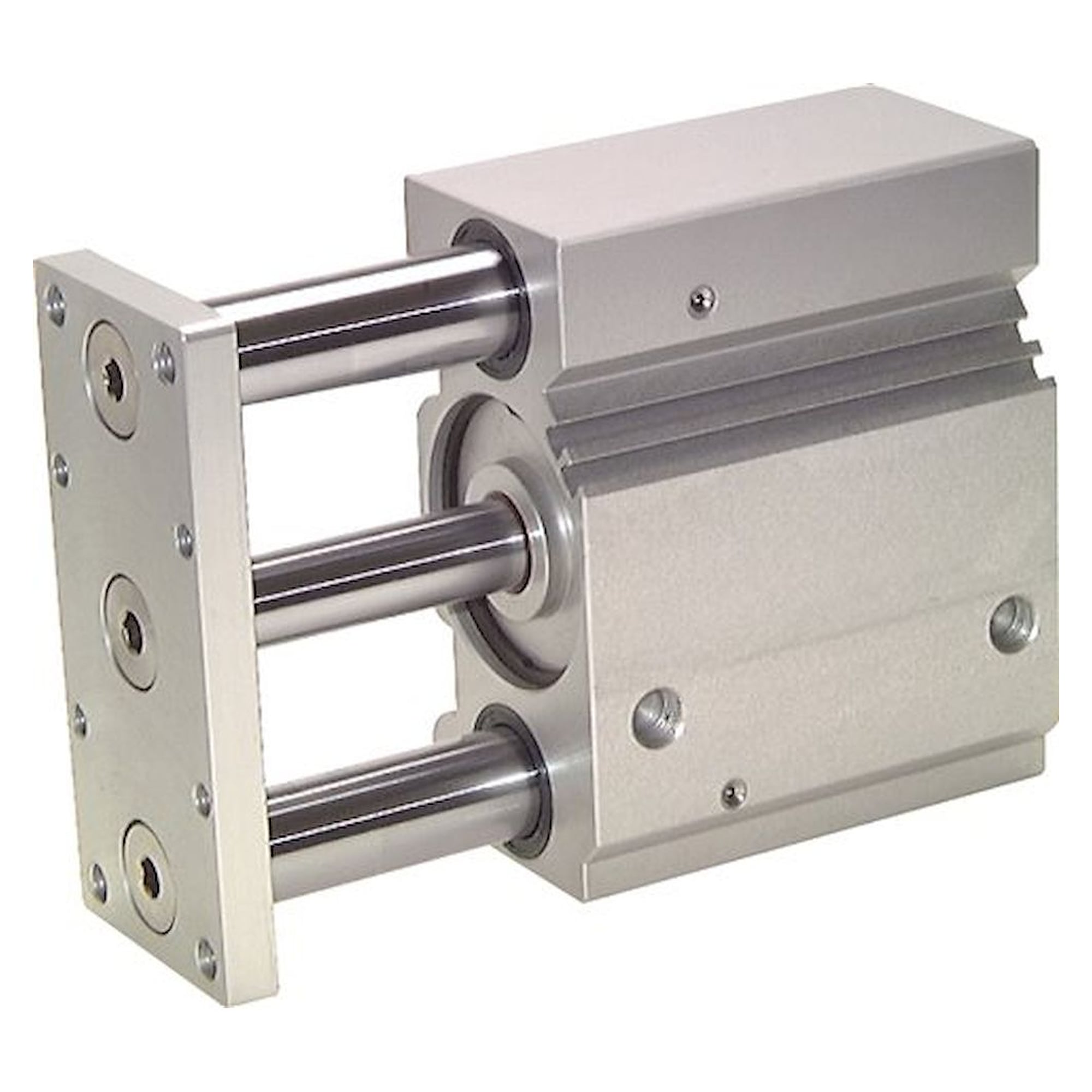

Guide cylinder, with slide bearing, pistons 100mm,stroke 75mm
Guide cylinder, with slide bearing, pistons 100mm,stroke 75mm
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€869.00
Item
FL-045900
Manufacturer no.
ZDFM 100/75 G
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.ZDFM 100/75 G
EAN4050571809997
Customs tariff number84123100
ConditionNew
Artikel
FL-045900
Frequently Bought Together
-
This Item:
€869.00
-
Guide cylinder, with slide bearing, pistons 32mm,stroke 100mm
€430.54
-
EMC SGM 25/100. Führungszylinder, mit Gleitlager, Kolben 25mm,Hub 100mm
€168.44
Total price
Materials:
Body and plate: Anodized aluminium, guide rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gasket: NBR / PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Advantages:
•ideal for accepting large transverse loads,
•numerous mounting options
Body and plate: Anodized aluminium, guide rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gasket: NBR / PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Advantages:
•ideal for accepting large transverse loads,
•numerous mounting options
| Piston diameter [mm] | 100 |
| Stroke [mm] | 75 |
| Version | with slide bearing |
| F (compressed air port) | G 1/4" |
| lateral force permissible [N] | 413 |
| permissible torque at the end-plate [Nm] | 16,68 |
| A [mm] | 16 |
| B [mm] | 21,0 |
| C [mm] | 35 |
| D [mm] | 32 |
| E1 [mm] | 190 |
| E2 [mm] | 80 |
| E3 [mm] | 89,0 |
| F1 [mm] | 21,0 |
| F2 [mm] | 19 |
| F3 [mm] | 40 |
| G1 [mm] | 221 |
| G2 [mm] | 108 |
| H [mm] | 170 |
| H1 [mm] | 170 |
| L1 [mm] | 66,0 |
| L2 [mm] | 84,0 |
| L3 [mm] | 105,0 |
| M1 [mm] | 224 |
| M2 [mm] | 112 |
| N [mm] | 62 |
| O1 [mm] | 25 |
| O2 [mm] | 15 |
| O3 [mm] | 200 |
| P1 | M 14 |
| P2 | M 10 |
| Q [mm] | 35 |
| R [mm] | 21,0 |
| T1 [mm] | 2,0 |
| T2 [mm] | 2,0 |
| Hersteller-Nr | ZDFM 100/75 G |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571809997 |
| Weight | 1.000000 |
| Zolltarifnummer | 84123100 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikel-Authentizität | Original product |
| Artikelzustand | New |
| Position sensing | No |
