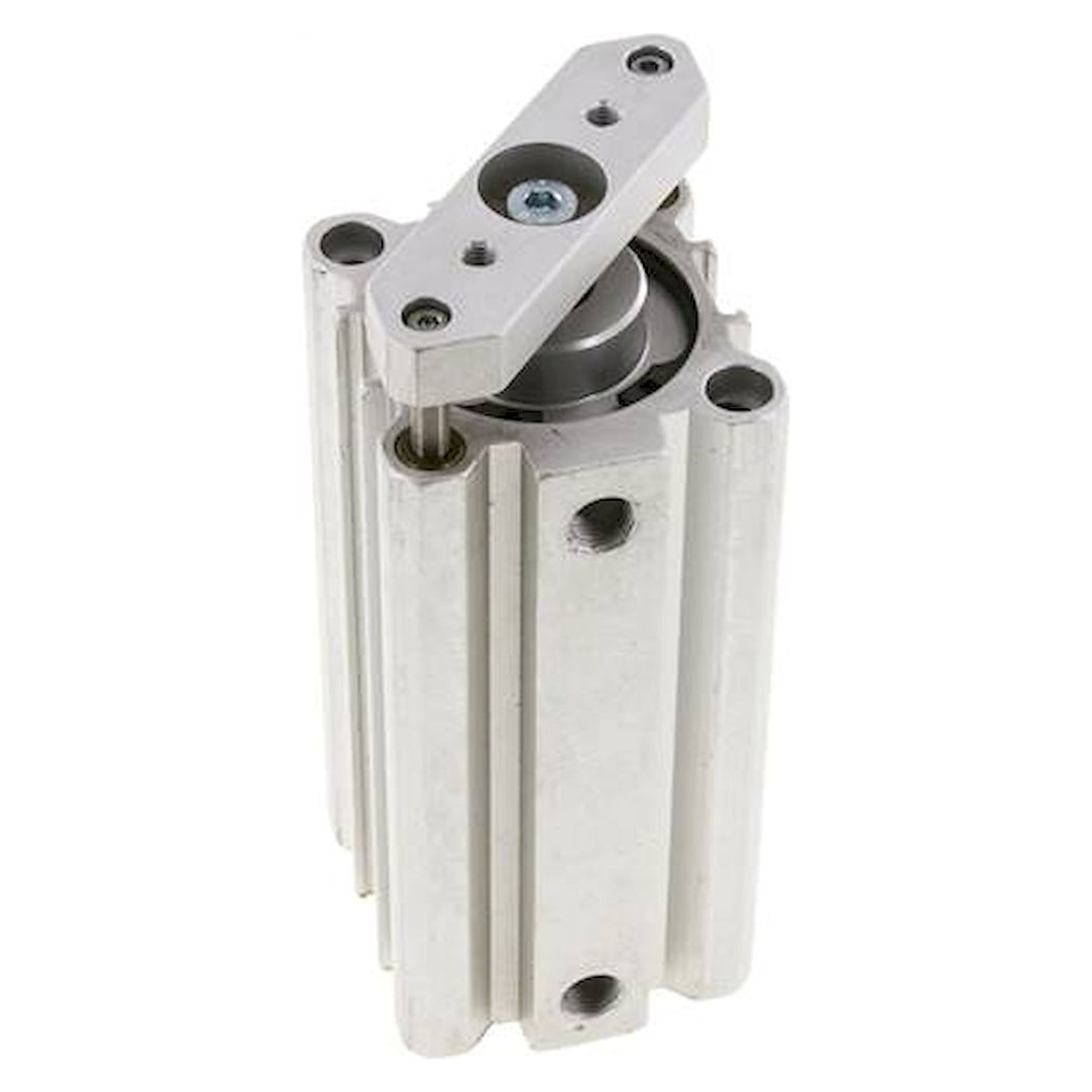

Name: Short stroke cylinder, non-rotating, 40, stroke 80mm
Brand: Fluidics equipment
SKU: FL-247696
Price: 219.793001 EUR
Availability: InStock

Skip to the end of the images gallery

Short stroke cylinder, non-rotating, 40, stroke 80mm

Skip to the beginning of the images gallery

Datasheet (PDF)

Pictures are for reference and may not be accurate, actual product may differ

Short stroke cylinder, non-rotating, 40, stroke 80mm

FLUIDICS EQUIPMENT Original product

Net price (excl. VAT)

€219.79 €184.70

excl. Shipping Cost

Available Fast shipping

Item FL-247696

Manufacturer no. NDM 40/80 A

Personal expert advice

Brand new Specialist dealer since 2009 Original product Worldwide shipping

Product data

Manufacturer no.NDM 40/80 A

EAN4050571524623

Customs tariff number84799070

ConditionNeu

Artikel

FL-247696

Frequently Bought Together

This Item: Short stroke cylinder, non-rotating, 40, stroke 80mm
€219.79 €184.70
excl. Shipping Cost

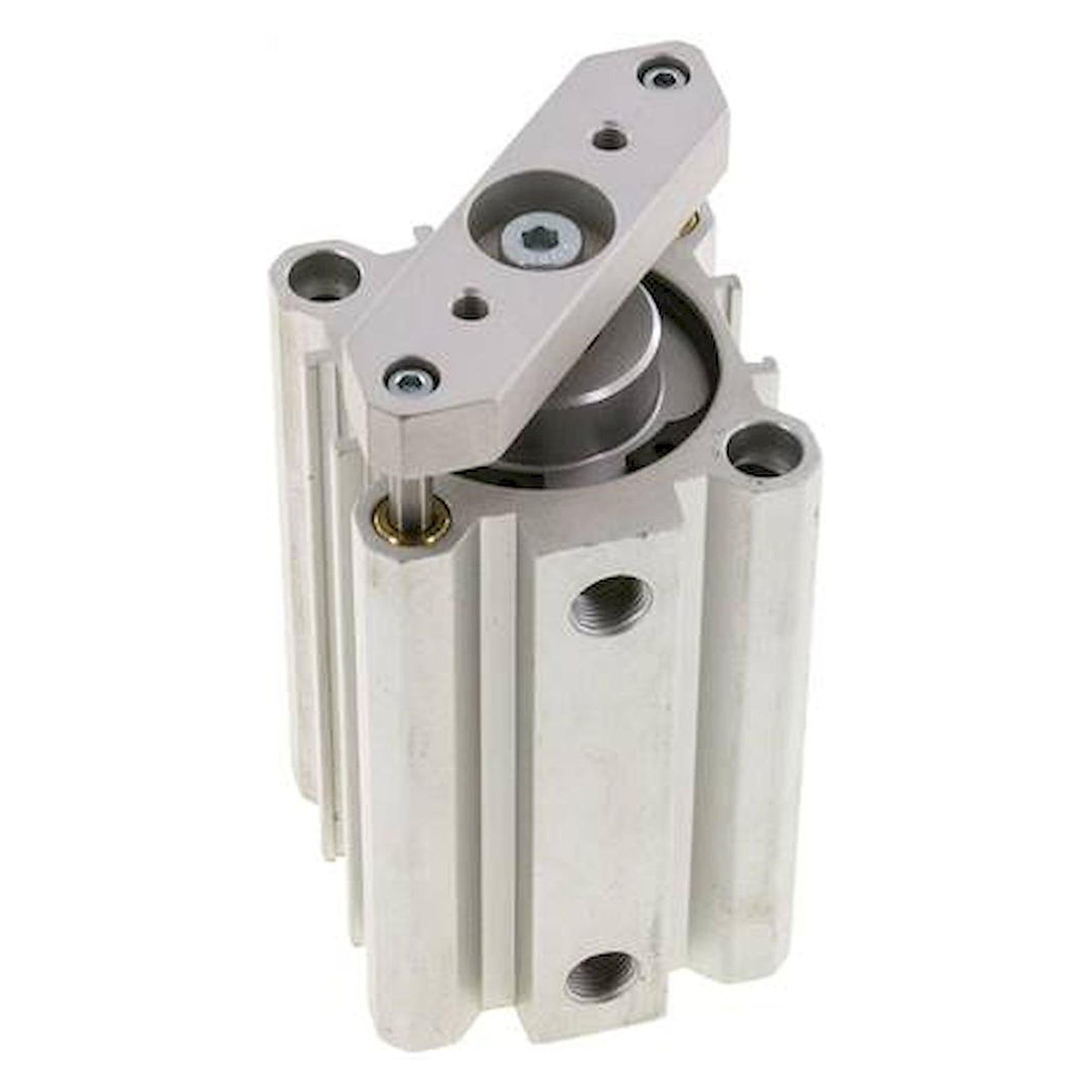

Short stroke cylinder, non-rotating, 40, stroke 50mm
€210.38 €176.79
excl. Shipping Cost
Short stroke cylinder, non-rotating, 100, stroke 25mm
€475.25 €399.37
excl. Shipping Cost

Details

Materials:
Head and base plate: Anodised aluminium / brass, cylinder tube: Anodised aluminium, piston rod: 1.4305 seal: NBR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
G

Piston diameter [mm]	40
Stroke [mm]	80
P (compressed air port)	G 1/8"
A [mm]	58,0
B [mm]	55
C2	M 5
D [mm]	12
E [mm]	28,0
F [mm]	5,8
G [mm]	9,0
H [mm]	30,5
I [mm]	42
J [mm]	11,0
K [mm]	42
L [mm]	39,5
N [mm]	40,0
Q [mm]	5,7
S [mm]	55,0
T [mm]	12
U [mm]	6,0
V [mm]	10
W [mm]	6,0
X [mm]	33
Y [mm]	17
Z [mm]	20
AA [mm]	12,5
AB [mm]	10

Information

More Information
Hersteller-Nr	NDM 40/80 A
Manufacturer	Fluidics equipment
EAN	4050571524623
Weight	7.000000
Zolltarifnummer	84799070
GPSR Herstellerdaten	A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment
Artikel-Authentizität	Originalprodukt
Artikelzustand	Neu
