Short stroke cylinder, non-rotating, 40, stroke 10mm
Datasheet (PDF)
Images are for illustration purposes only and may differ from the actual product. Some images have been generated or edited, in whole or in part, using artificial intelligence systems. The technical specifications in the product description are authoritative.

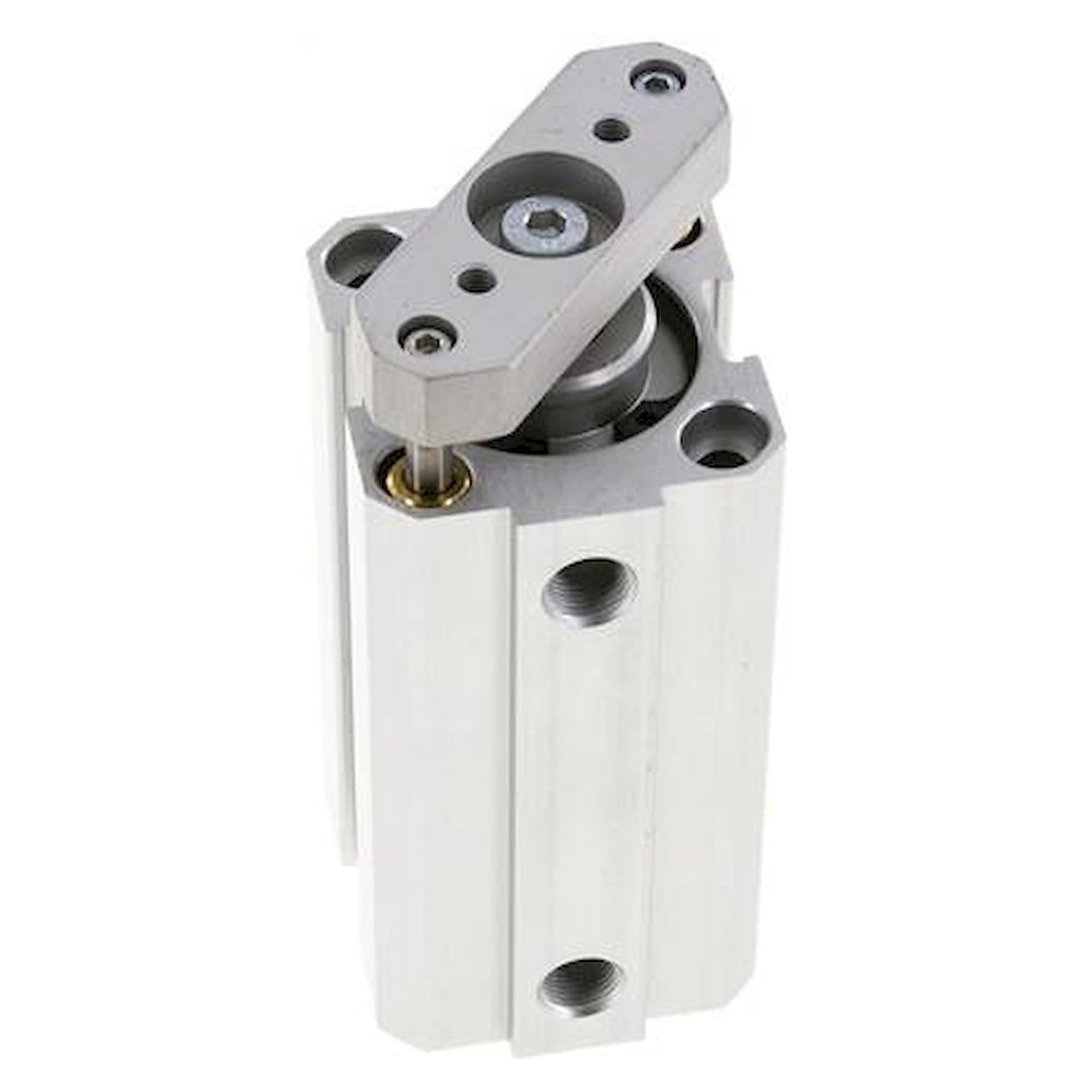

Short stroke cylinder, non-rotating, 40, stroke 10mm

Short stroke cylinder, non-rotating, 40, stroke 10mm

FLUIDICS EQUIPMENT Original product
Net price (excl. VAT)
€174.45 €146.60
Item FL-009818
Manufacturer no. NDM 40/10 A
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.NDM 40/10 A
EAN4050571524470
Customs tariff number84799070
ConditionNew
Add to Wish List Add to Compare
Artikel
FL-009818
Materials:
Head and base plate: Anodised aluminium / brass, cylinder tube: Anodised aluminium, piston rod: 1.4305 seal: NBR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
G

Piston diameter [mm] 40
Stroke [mm] 10
P (compressed air port) G 1/8"
A [mm] 58,0
B [mm] 55
C2 M 5
D [mm] 12
E [mm] 28,0
F [mm] 5,8
G [mm] 9,0
H [mm] 30,5
I [mm] 42
J [mm] 11,0
K [mm] 42
L [mm] 39,5
N [mm] 40,0
Q [mm] 5,7
S [mm] 55,0
T [mm] 12
U [mm] 6,0
V [mm] 10
W [mm] 6,0
X [mm] 33
Y [mm] 17
Z [mm] 20
AA [mm] 12,5
AB [mm] 10
More Information
Hersteller-Nr NDM 40/10 A
Manufacturer Fluidics equipment
EAN 4050571524470
Weight 0.350000
Zolltarifnummer 84799070
GPSR Herstellerdaten A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment
Artikel-Authentizität Original product
Artikelzustand New
Position sensing No
