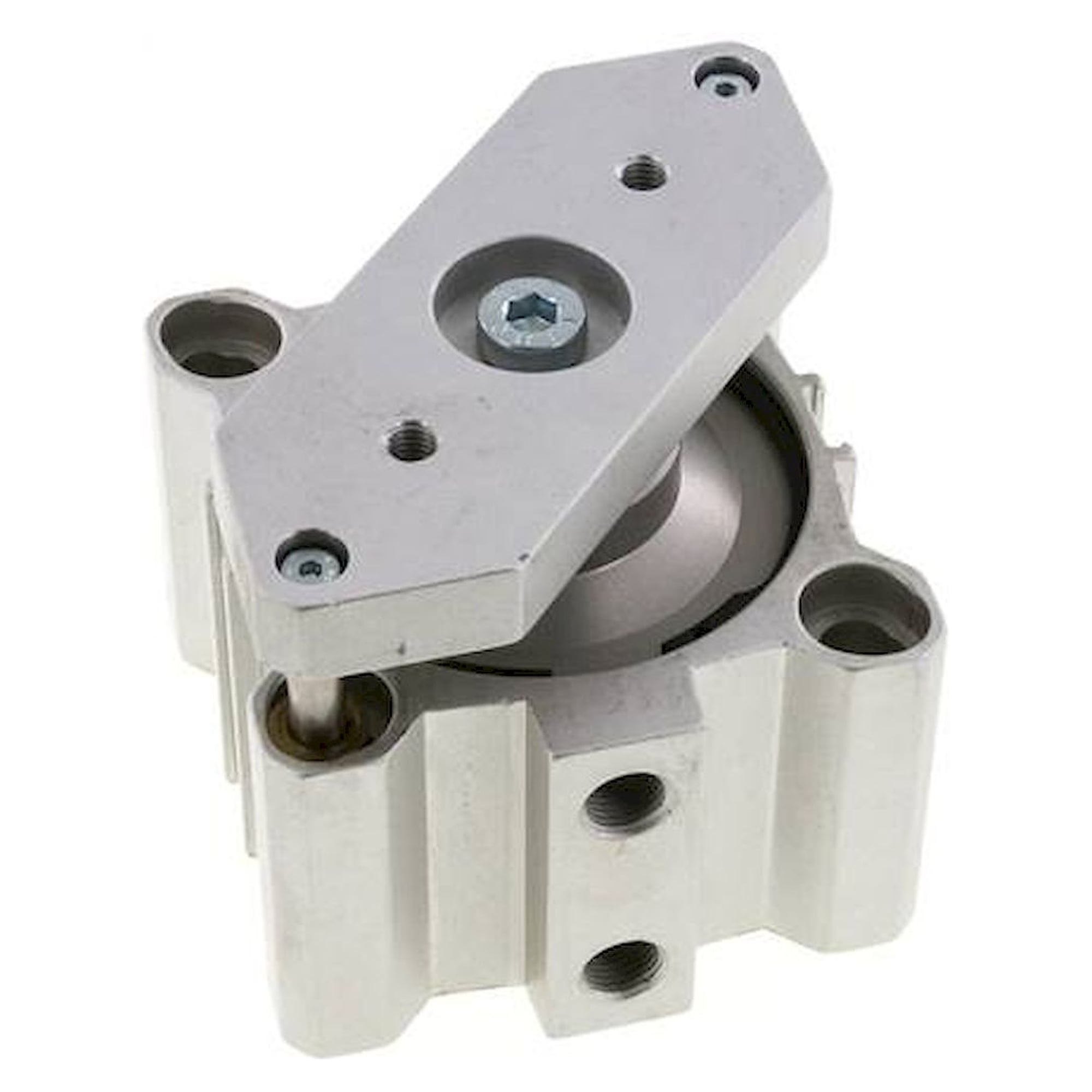

Non-rotating short-stroke cylinder, double-acting, bore 63 mm, stroke 20 mm, magnetic piston, G 1/8 - Fluidics equipment
This non-rotating short-stroke cylinder with 63 mm bore pushes with a calculated 1.9 kN at 6 bar over a 20 mm stroke. Thanks to the magnetic piston, position can be sensed with type G cylinder switches. Operating pressure up to 10 bar, NBR seals for -20 to +80 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
With a 63 mm bore and 20 mm stroke this short-stroke cylinder is built for short, powerful movements. The calculated push force is 1.9 kN at 6 bar and 3.1 kN at the maximum of 10 bar.
Benefits
- Double-acting, calculated push force 1.9 kN at 6 bar
- Non-rotating, C2 thread M 6 for mounting
- Magnetic piston for type G cylinder switches
- NBR seals for -20 to +80 °C
- Operating pressure up to 10 bar, G 1/8 compressed air port
Dimensions
The dimension letters refer to the dimensional drawing of the series.
| Dimension A | 89.0 mm |
|---|---|
| Dimension B | 80 mm |
| Dimension D | 16 mm |
| Dimension E | 38.5 mm |
| Dimension F | 9.0 mm |
| Dimension G | 14.0 mm |
| Dimension H | 46.0 mm |
| Dimension I | 62 mm |
| Dimension J | 11.0 mm |
| Dimension K | 62 mm |
| Dimension L | 42.0 mm |
| Dimension N | 60.0 mm |
| Dimension Q | 8.8 mm |
| Dimension S | 80.0 mm |
| Dimension T | 14 mm |
| Dimension U | 8.0 mm |
| Dimension V | 13 mm |
| Dimension W | 7.0 mm |
| Dimension X | 50 mm |
| Dimension Y | 22 mm |
| Dimension Z | 30 mm |
| Dimension AA | 15.0 mm |
| Dimension AB | 12 mm |
Applications
The short stroke of 20 mm fits clamping, holding and stopping tasks at assembly stations, conveyors and in test fixtures.
Technical data
| Type | short-stroke cylinder, non-rotating |
|---|---|
| Function | double-acting |
| Bore | 63 mm |
| Stroke | 20 mm |
| Version | with magnetic piston |
| Thread C2 | M 6 |
| Compressed air port P | G 1/8 |
| Operating pressure | max. 10 bar |
| Temperature range | -20 to +80 °C |
| Head and base plate | anodised aluminium / brass |
| Cylinder tube | anodised aluminium |
| Piston rod | 1.4305 |
| Seal | NBR |
| Cylinder switch type | G |
| Piston area (calculated) | 31.2 cm² |
| Push force at 6 bar (calculated) | 1.9 kN |
| Push force at 10 bar (calculated) | 3.1 kN |
| Weight | 850 g |
| Customs tariff number | 84799070 |
| Manufacturer | Fluidics equipment |
| Hersteller-Nr | NDM 63/20 A |
| EAN | 4050571524838 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Ausführung | mit Magnetkolben, verdrehgesichert |
| Bauform | Kurzhubzylinder |
| Piston Ø [mm] | 63 |
| Stroke [mm] | 20 |
| Seal material | NBR |
| Housing material | Aluminium, anodised |
| Medium | Compressed air |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | G1/8 |
| Temperaturbereich | -20-80 °C |
| Temperature (max.) | 80 |
