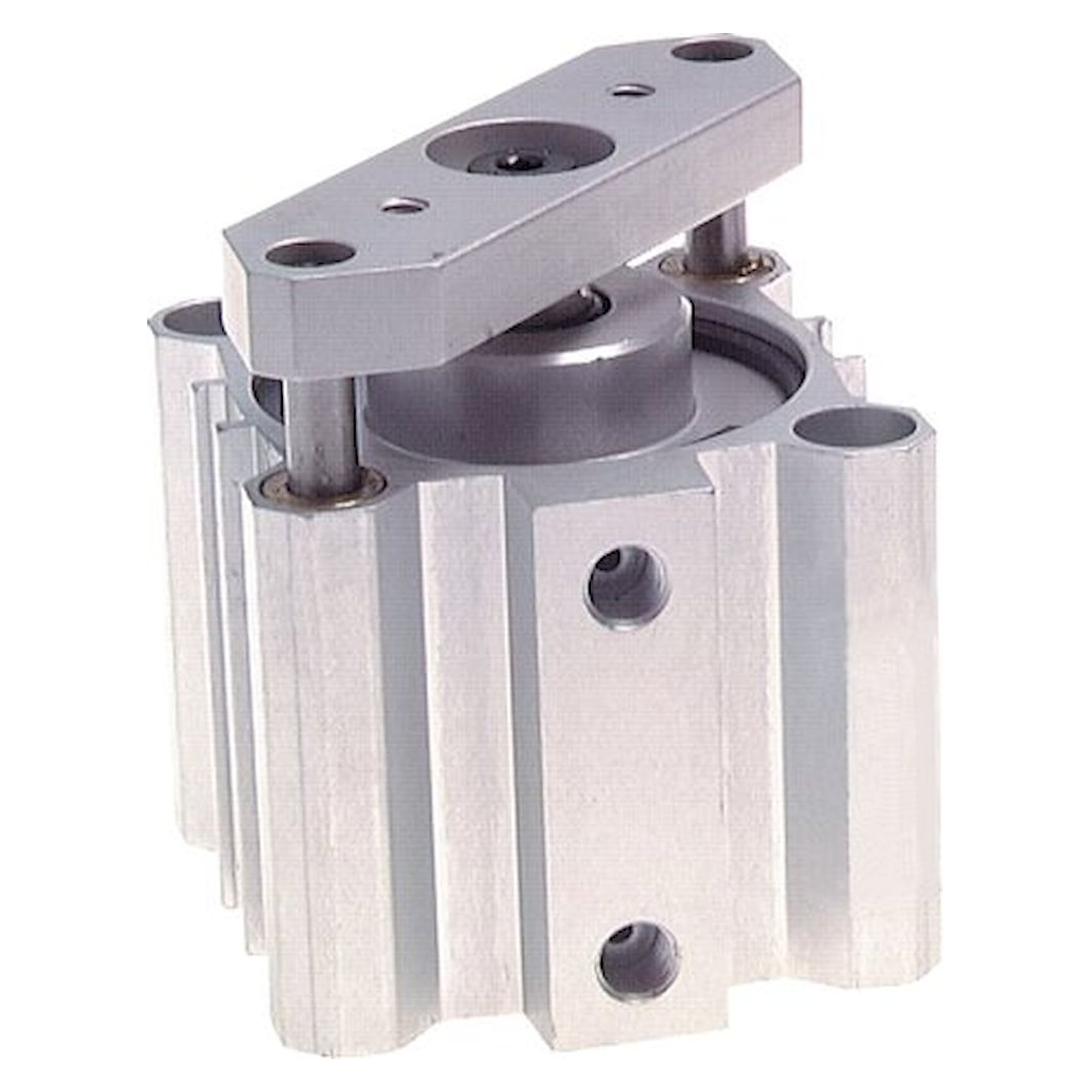

Non-rotating short-stroke cylinder, double-acting, bore 32 mm, stroke 80 mm, magnetic piston, G 1/8 - Fluidics equipment
This non-rotating short-stroke cylinder with 32 mm bore pushes with a calculated 483 N at 6 bar over a 80 mm stroke. A magnetic piston is fitted, matching cylinder switches are type G. Stainless steel 1.4305 piston rod, operating pressure max. 10 bar.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
With a 32 mm bore and 80 mm stroke this short-stroke cylinder is built for short, powerful movements. The calculated push force is 483 N at 6 bar and 804 N at the maximum of 10 bar.
Key benefits
- Double-acting, calculated push force 483 N at 6 bar
- Non-rotating, C2 thread M 5 for mounting
- Magnetic piston for type G cylinder switches
- NBR seals for -20 to +80 °C
- Rated up to 10 bar, G 1/8 port
Dimensions
The dimension letters refer to the dimensional drawing of the series.
| Dimension A | 51.0 mm |
|---|---|
| Dimension B | 46 mm |
| Dimension D | 12 mm |
| Dimension E | 24.5 mm |
| Dimension F | 5.8 mm |
| Dimension G | 9.0 mm |
| Dimension H | 27.0 mm |
| Dimension I | 32 mm |
| Dimension J | 11.5 mm |
| Dimension K | 36 mm |
| Dimension L | 39.5 mm |
| Dimension N | 34.0 mm |
| Dimension Q | 5.7 mm |
| Dimension S | 48.0 mm |
| Dimension T | 12 mm |
| Dimension U | 5.0 mm |
| Dimension V | 10 mm |
| Dimension W | 6.0 mm |
| Dimension X | 28 mm |
| Dimension Y | 17 mm |
| Dimension Z | 20 mm |
| Dimension AA | 11.0 mm |
| Dimension AB | 10 mm |
Applications
The short stroke of 80 mm fits clamping, holding and stopping tasks at assembly stations, conveyors and in test fixtures.
Technical data
| Type | short-stroke cylinder, non-rotating |
|---|---|
| Function | double-acting |
| Bore | 32 mm |
| Stroke | 80 mm |
| Version | with magnetic piston |
| Thread C2 | M 5 |
| Compressed air port P | G 1/8 |
| Operating pressure | max. 10 bar |
| Temperature range | -20 to +80 °C |
| Head and base plate | anodised aluminium / brass |
| Cylinder tube | anodised aluminium |
| Piston rod | 1.4305 |
| Seal | NBR |
| Cylinder switch type | G |
| Piston area (calculated) | 8.0 cm² |
| Push force at 6 bar (calculated) | 483 N |
| Push force at 10 bar (calculated) | 804 N |
| Weight | 600 g |
| Customs tariff number | 84799070 |
| Manufacturer | Fluidics equipment |
| Hersteller-Nr | NDM 32/80 A |
| EAN | 4050571524449 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Ausführung | mit Magnetkolben, verdrehgesichert |
| Bauform | Kurzhubzylinder |
| Piston Ø [mm] | 32 |
| Stroke [mm] | 80 |
| Seal material | NBR |
| Housing material | Aluminium, anodised |
| Medium | Compressed air |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | G1/8 |
| Temperaturbereich | -20-80 °C |
| Temperature (max.) | 80 |
