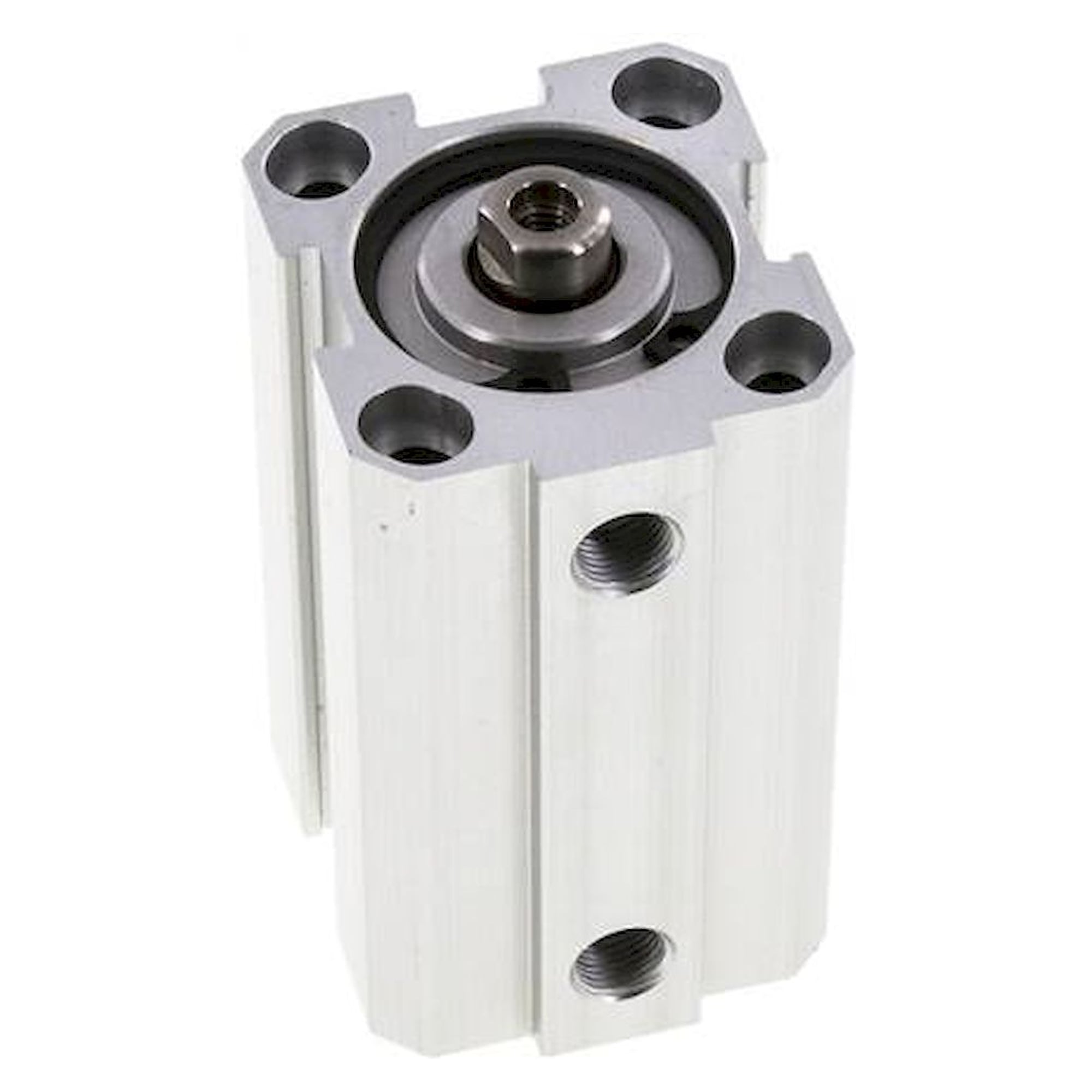

Double-acting short-stroke cylinder, bore 40 mm, stroke 100 mm, with magnetic piston, G 1/8 - Fluidics equipment

Fluidics equipment ✓ Original product Brand new

This short-stroke cylinder with 40 mm bore pushes with a calculated 754 N at 6 bar over a 100 mm stroke. Thanks to the magnetic piston, position can be sensed with type G cylinder switches. Up to 10 bar operating pressure, anodised aluminium cylinder tube, 1.4305 piston rod.

Net
€114.76
excl. VAT
Item FL-253705
Manufacturer no. NDM 40/100
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The double-acting short-stroke cylinder with 40 mm piston delivers a calculated 754 N push force at 6 bar. The 100 mm stroke keeps the overall length short, the port is G 1/8.

Why this cylinder

  • Pneumatic force in both directions, 754 N push force at 6 bar (calculated)
  • Stainless steel 1.4305 piston rod with M 6 thread
  • Position sensing via magnetic piston and type G cylinder switches
  • NBR seals for -20 to +80 °C
  • Rated up to 10 bar, G 1/8 port

Dimensions

The dimension letters refer to the dimensional drawing of the series.

Dimension A58.0 mm
Dimension B55 mm
Dimension D12 mm
Dimension E28.0 mm
Dimension F5.8 mm
Dimension G9.0 mm
Dimension H30.5 mm
Dimension I42 mm
Dimension J11.0 mm
Dimension K42.0 mm
Dimension L39.5 mm
Dimension N40.0 mm
Dimension Q5.7 mm
Dimension S55.0 mm
Dimension T12 mm
Dimension U6.0 mm
Dimension V10 mm
Dimension W6.5 mm
Dimension X33 mm
Dimension Y17 mm
Dimension Z20 mm
Dimension AA12.5 mm
Dimension AB10 mm

Applications

Typical tasks are clamping and positioning workpieces, stoppers on conveyor lines or short pressing operations with 100 mm stroke. Friction is not included in the calculated 754 N at 6 bar.

Technical data

Typeshort-stroke cylinder
Functiondouble-acting
Bore40 mm
Stroke100 mm
Versionwith magnetic piston
Piston rod thread C1M 6
Compressed air port PG 1/8
Operating pressuremax. 10 bar
Temperature range-20 to +80 °C
Head and base plateanodised aluminium / brass
Cylinder tubeanodised aluminium
Piston rod1.4305
SealNBR
Cylinder switch typeG
Piston area (calculated)12.6 cm²
Push force at 6 bar (calculated)754 N
Push force at 10 bar (calculated)1.3 kN
Weight700 g
Customs tariff number84799070
ManufacturerFluidics equipment
Hersteller-NrNDM 40/100
EAN4050571524463
Zolltarifnummer84799070
GPSR HerstellerdatenA1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Ausführungmit Magnetkolben
BauformKurzhubzylinder
Piston Ø [mm]40
Stroke [mm]100
Seal materialNBR
Housing materialAluminium, anodised
MediumCompressed air
Betriebsdruck max [bar]10
Pneumatic connectionG1/8
Temperaturbereich-20-80 °C
Temperature (max.)80
