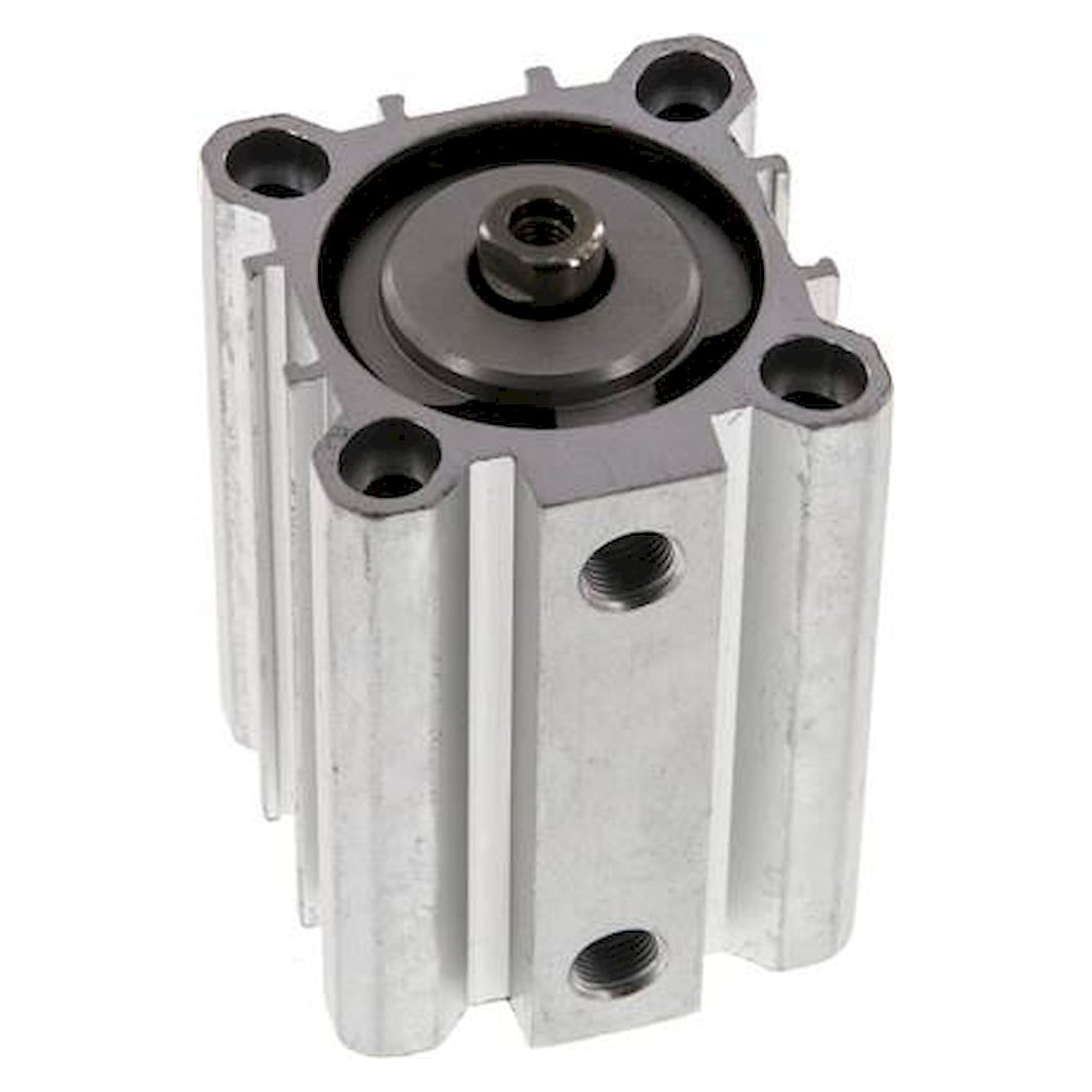

Double-acting short-stroke cylinder, bore 40 mm, stroke 50 mm, with magnetic piston, G 1/8 - Fluidics equipment
A 40 mm bore and 50 mm stroke give a calculated push force of 754 N at 6 bar in a very compact unit. A magnetic piston is fitted, matching cylinder switches are type G. Stainless steel 1.4305 piston rod, operating pressure max. 10 bar.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Piston area 12.6 cm², stroke 50 mm: this short-stroke cylinder produces a calculated 754 N at 6 bar and 1.3 kN at 10 bar operating pressure. The 40 mm piston is double-acting, both extending and retracting are driven by compressed air.
Key benefits
- Double-acting, calculated push force 754 N at 6 bar
- Piston rod thread M 6, rod made of 1.4305
- Position sensing via magnetic piston and type G cylinder switches
- Temperature range -20 to +80 °C with NBR seals
- Operating pressure up to 10 bar, G 1/8 compressed air port
Dimensions
The dimension letters refer to the dimensional drawing of the series.
| Dimension A | 58.0 mm |
|---|---|
| Dimension B | 55 mm |
| Dimension D | 12 mm |
| Dimension E | 28.0 mm |
| Dimension F | 5.8 mm |
| Dimension G | 9.0 mm |
| Dimension H | 30.5 mm |
| Dimension I | 42 mm |
| Dimension J | 11.0 mm |
| Dimension K | 42.0 mm |
| Dimension L | 39.5 mm |
| Dimension N | 40.0 mm |
| Dimension Q | 5.7 mm |
| Dimension S | 55.0 mm |
| Dimension T | 12 mm |
| Dimension U | 6.0 mm |
| Dimension V | 10 mm |
| Dimension W | 6.5 mm |
| Dimension X | 33 mm |
| Dimension Y | 17 mm |
| Dimension Z | 20 mm |
| Dimension AA | 12.5 mm |
| Dimension AB | 10 mm |
Applications
Typical tasks are clamping and positioning workpieces, stoppers on conveyor lines or short pressing operations with 50 mm stroke.
Technical data
| Type | short-stroke cylinder |
|---|---|
| Function | double-acting |
| Bore | 40 mm |
| Stroke | 50 mm |
| Version | with magnetic piston |
| Piston rod thread C1 | M 6 |
| Compressed air port P | G 1/8 |
| Operating pressure | max. 10 bar |
| Temperature range | -20 to +80 °C |
| Head and base plate | anodised aluminium / brass |
| Cylinder tube | anodised aluminium |
| Piston rod | 1.4305 |
| Seal | NBR |
| Cylinder switch type | G |
| Piston area (calculated) | 12.6 cm² |
| Push force at 6 bar (calculated) | 754 N |
| Push force at 10 bar (calculated) | 1.3 kN |
| Weight | 470 g |
| Customs tariff number | 84799070 |
| Manufacturer | Fluidics equipment |
| Hersteller-Nr | NDM 40/50 |
| EAN | 4050571524579 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Ausführung | mit Magnetkolben |
| Bauform | Kurzhubzylinder |
| Piston Ø [mm] | 40 |
| Stroke [mm] | 50 |
| Seal material | NBR |
| Housing material | Aluminium, anodised |
| Medium | Compressed air |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | G1/8 |
| Temperaturbereich | -20-80 °C |
| Temperature (max.) | 80 |
