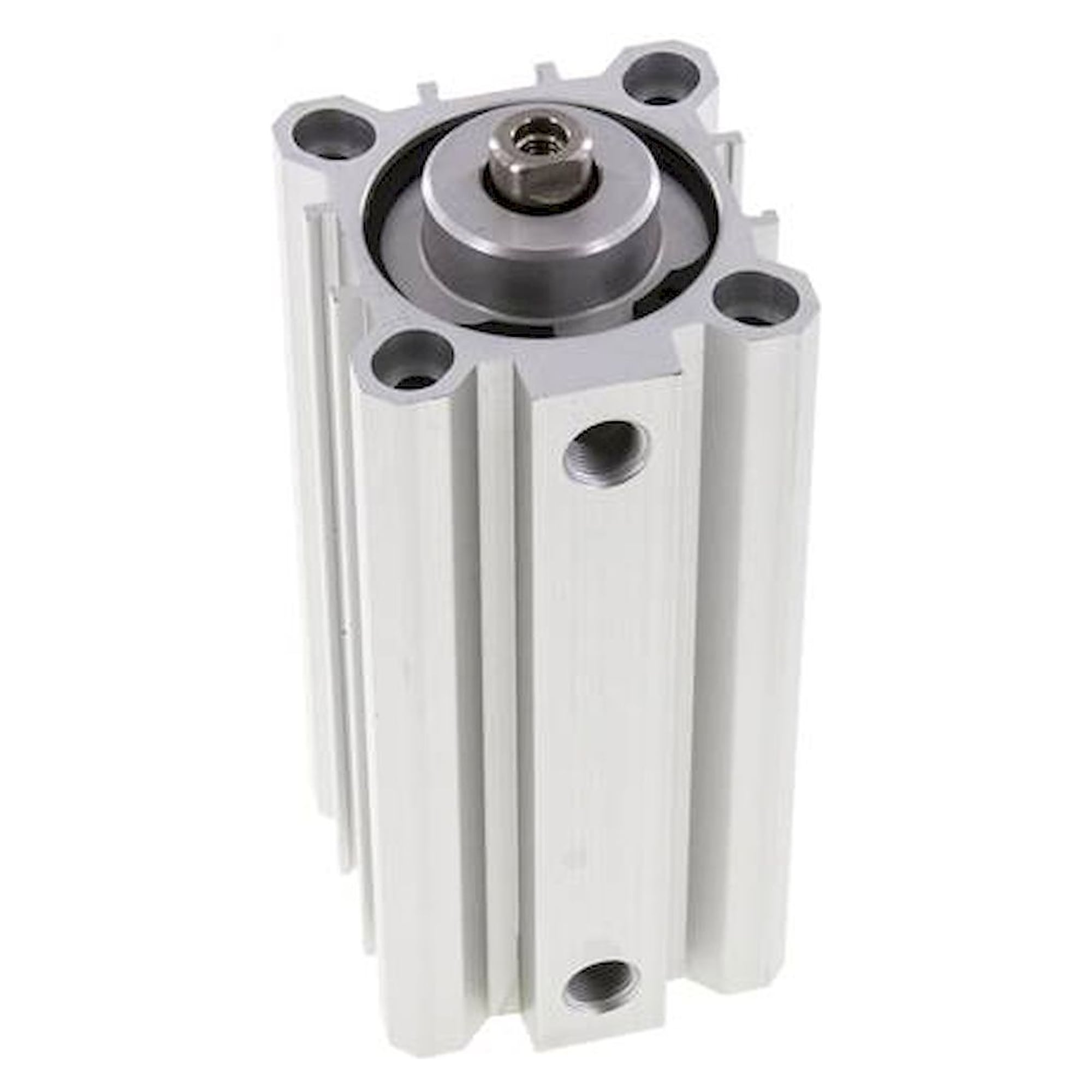

Double-acting short-stroke cylinder, bore 20 mm, stroke 15 mm, without magnetic piston, M 5 - Fluidics equipment

Fluidics equipment ✓ Original product Brand new

This short-stroke cylinder with 20 mm bore pushes with a calculated 188 N at 6 bar over a 15 mm stroke. Version without magnetic piston for tasks without position sensing. Up to 10 bar operating pressure, anodised aluminium cylinder tube, 1.4305 piston rod.

Net
€55.17
excl. VAT
Item FL-248723
Manufacturer no. ND 20/15
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With a 20 mm bore and 15 mm stroke this short-stroke cylinder is built for short, powerful movements. The calculated push force is 188 N at 6 bar and 314 N at the maximum of 10 bar.

Why this cylinder

  • Pneumatic force in both directions, 188 N push force at 6 bar (calculated)
  • Piston rod thread M 5, rod made of 1.4305
  • Temperature range -20 to +80 °C with NBR seals
  • Operating pressure up to 10 bar, M 5 compressed air port

Dimensions

The dimension letters refer to the dimensional drawing of the series.

Dimension A40.0 mm
Dimension B36 mm
Dimension D10 mm
Dimension F5.8 mm
Dimension G9.0 mm
Dimension H22.0 mm
Dimension I20 mm
Dimension J8.0 mm
Dimension L27.0 mm
Dimension M15.0 mm
Dimension N25.5 mm
Dimension O12.7 mm
Dimension Q5.7 mm
Dimension R5.7 mm
Dimension S38.5 mm
Dimension T10 mm
Dimension V8 mm
Dimension W5.0 mm
Dimension X20 mm
Dimension Y11 mm
Dimension Z15 mm
Dimension AA4.5 mm
Dimension AB8 mm

Applications

The short stroke of 15 mm fits clamping, holding and stopping tasks at assembly stations, conveyors and in test fixtures.

Technical data

Typeshort-stroke cylinder
Functiondouble-acting
Bore20 mm
Stroke15 mm
Versionwithout magnetic piston
Piston rod thread C1M 5
Compressed air port PM 5
Operating pressuremax. 10 bar
Temperature range-20 to +80 °C
Head and base plateanodised aluminium / brass
Cylinder tubeanodised aluminium
Piston rod1.4305
SealNBR
Cylinder switch typeG
Piston area (calculated)3.1 cm²
Push force at 6 bar (calculated)188 N
Push force at 10 bar (calculated)314 N
Weight115 g
Customs tariff number84799070
ManufacturerFluidics equipment
Hersteller-NrND 20/15
EAN4050571522940
Zolltarifnummer84799070
GPSR HerstellerdatenA1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Ausführungohne Magnetkolben
BauformKurzhubzylinder
Piston Ø [mm]20
Stroke [mm]15
Seal materialNBR
Housing materialAluminium, anodised
MediumCompressed air
Betriebsdruck max [bar]10
Pneumatic connectionM5
Temperaturbereich-20-80 °C
Temperature (max.)80
