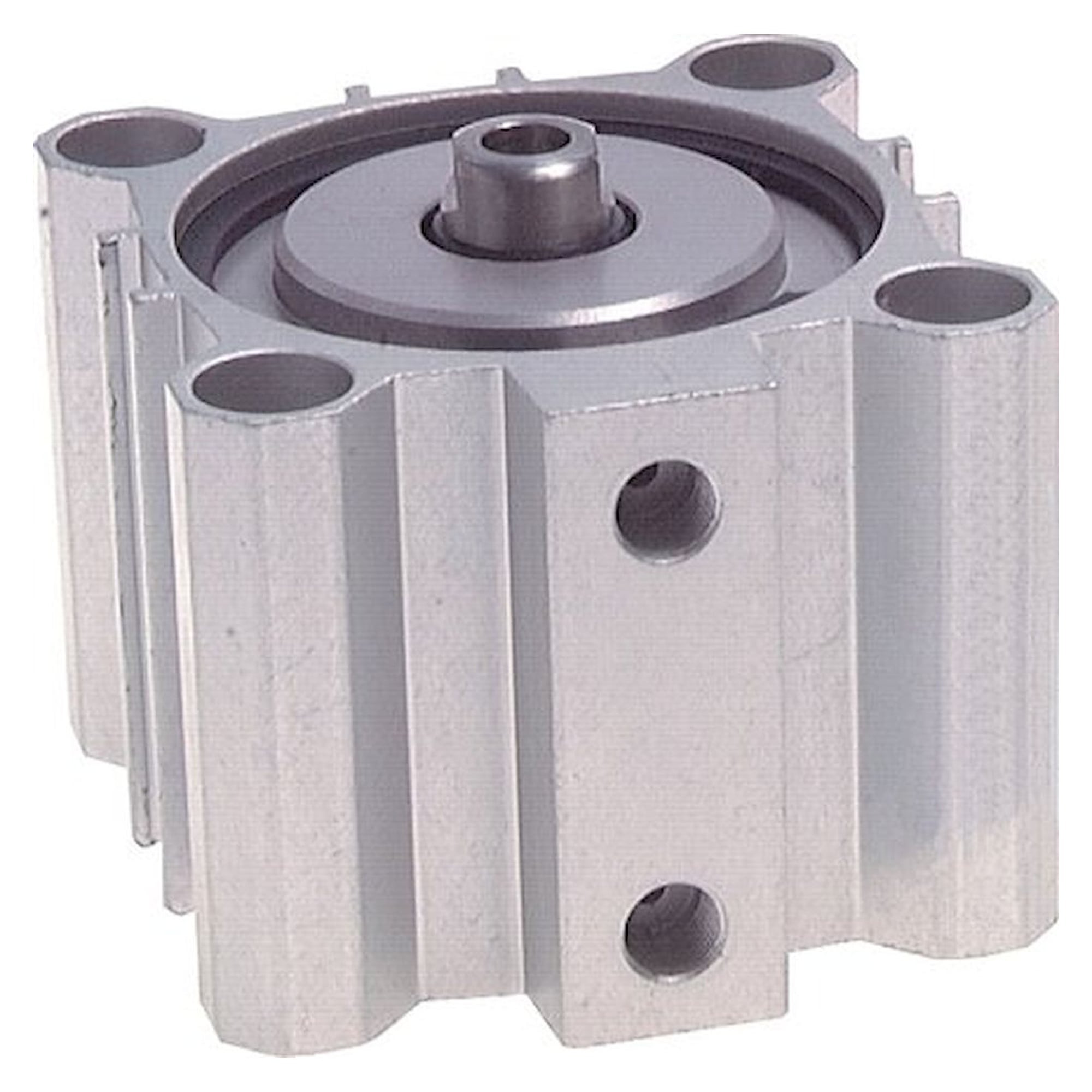

Double-acting short-stroke cylinder, bore 100 mm, stroke 30 mm, with magnetic piston, G 1/4 - Fluidics equipment
With only 30 mm stroke this double-acting short-stroke cylinder with 100 mm bore delivers a calculated 4.7 kN push force at 6 bar. A magnetic piston is fitted, matching cylinder switches are type G. Up to 10 bar operating pressure, anodised aluminium cylinder tube, 1.4305 piston rod.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Piston area 78.5 cm², stroke 30 mm: this short-stroke cylinder produces a calculated 4.7 kN at 6 bar and 7.9 kN at 10 bar operating pressure. The 100 mm piston is double-acting, both extending and retracting are driven by compressed air.
Key benefits
- Double-acting, calculated push force 4.7 kN at 6 bar
- Piston rod thread M 12, rod made of 1.4305
- Position sensing via magnetic piston and type G cylinder switches
- Temperature range -20 to +80 °C with NBR seals
- Rated up to 10 bar, G 1/4 port
Dimensions
The dimension letters refer to the dimensional drawing of the series.
| Dimension A | 131.0 mm |
|---|---|
| Dimension B | 124 mm |
| Dimension D | 25 mm |
| Dimension E | 56.0 mm |
| Dimension F | 11.0 mm |
| Dimension G | 17.2 mm |
| Dimension H | 69.0 mm |
| Dimension I | 103 mm |
| Dimension J | 16.0 mm |
| Dimension K | 103.0 mm |
| Dimension L | 56.0 mm |
| Dimension N | 94.0 mm |
| Dimension Q | 11.0 mm |
| Dimension S | 124.0 mm |
| Dimension T | 20 mm |
| Dimension U | 10.5 mm |
| Dimension V | 22 mm |
| Dimension W | 10.0 mm |
| Dimension X | 80 mm |
| Dimension Y | 30 mm |
| Dimension Z | 50 mm |
| Dimension AA | 20.5 mm |
| Dimension AB | 14 mm |
Applications
Typical tasks are clamping and positioning workpieces, stoppers on conveyor lines or short pressing operations with 30 mm stroke. Friction is not included in the calculated 4.7 kN at 6 bar.
Technical data
| Type | short-stroke cylinder |
|---|---|
| Function | double-acting |
| Bore | 100 mm |
| Stroke | 30 mm |
| Version | with magnetic piston |
| Piston rod thread C1 | M 12 |
| Compressed air port P | G 1/4 |
| Operating pressure | max. 10 bar |
| Temperature range | -20 to +80 °C |
| Head and base plate | anodised aluminium / brass |
| Cylinder tube | anodised aluminium |
| Piston rod | 1.4305 |
| Seal | NBR |
| Cylinder switch type | G |
| Piston area (calculated) | 78.5 cm² |
| Push force at 6 bar (calculated) | 4.7 kN |
| Push force at 10 bar (calculated) | 7.9 kN |
| Weight | 2.2 kg |
| Customs tariff number | 84799070 |
| Manufacturer | Fluidics equipment |
| Hersteller-Nr | NDM 100/30 |
| EAN | 4050571523763 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Ausführung | mit Magnetkolben |
| Bauform | Kurzhubzylinder |
| Piston Ø [mm] | 100 |
| Stroke [mm] | 30 |
| Seal material | NBR |
| Housing material | Aluminium, anodised |
| Medium | Compressed air |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | G1/4 |
| Temperaturbereich | -20-80 °C |
| Temperature (max.) | 80 |
