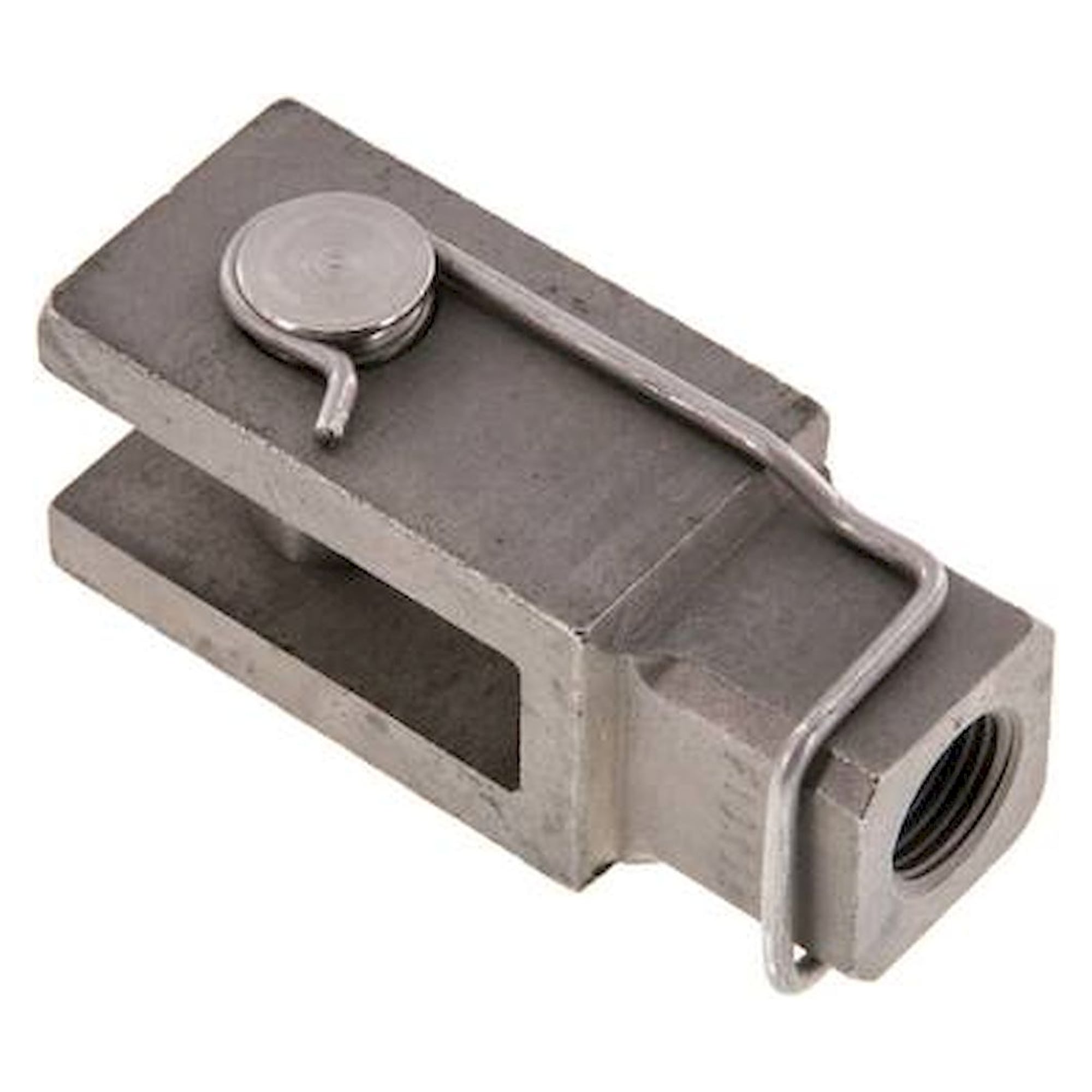

Yoke with bolts M 16, 1.4305
Datasheet (PDF)
Images are for illustration purposes only and may differ from the actual product. Some images have been generated or edited, in whole or in part, using artificial intelligence systems. The technical specifications in the product description are authoritative.
In service the clevis head links the piston rod to the load through clevis and pin. The decisive figure is the piston rod thread M 16. Dimensions 83 x 64 x 43 mm, made of stainless steel 1.4305.

Clevis head with pin, for piston rod thread M 16, 1.4305, dimension D 43 mm

FLUIDICS EQUIPMENT Original product
Net price (excl. VAT)
€76.26
Item FL-044285
Manufacturer no. GAK M16 ES
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.GAK M16 ES
EAN4050571314682
Customs tariff number73269098
ConditionNew
Add to Wish List Add to Compare
Artikel
FL-044285
Frequently Bought Together
Total price

The clevis head links the piston rod to the load through clevis and pin. This version comes with 83 mm for dimension F, 64 mm for dimension C and 43 mm for dimension D.

Benefits

  • Fits the piston rod thread M 16.
  • Material stainless steel 1.4305 for piston rod thread M 16.
  • Dimension F comes to 83 mm.
  • Dimension D comes to 43 mm.
  • Dimension C comes to 64 mm.

Technical data

Material1.4305
For piston rod thread AM 16
Dimension B [mm]32
Dimension C [mm]64
Dimension D [mm]43
Dimension E [mm]16
Dimension F [mm]83
Dimension G [mm]32
Dimension H [mm]16

Applications

On a cylinder with piston rod thread M 16 the clevis head makes the link to the load.

More Information
Hersteller-Nr GAK M16 ES
Manufacturer Fluidics equipment
EAN 4050571314682
Weight 0.340000
Zolltarifnummer 73269098
GPSR Herstellerdaten A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment
Artikel-Authentizität Original product
Artikelzustand New
Position sensing No
