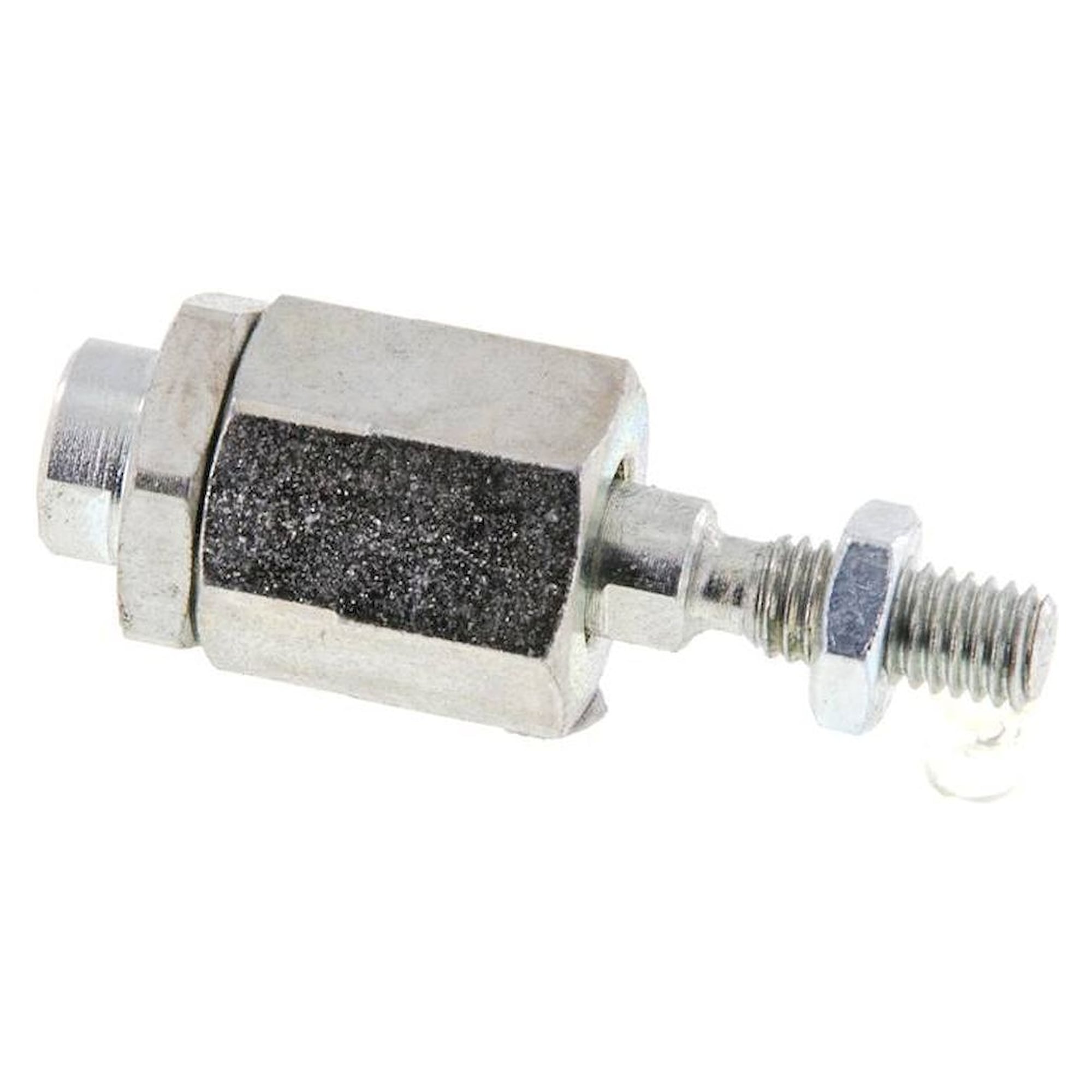

This flexible coupling compensates an offset between piston rod and load. What counts here is the piston rod thread M 5. Material zinc-plated steel, size 38.5 x 13.5 mm.

Flexible coupling, for piston rod thread M 5, zinc-plated steel

Name: Flexible coupling, for piston rod thread M 5, zinc-plated steel
Brand: Fluidics equipment
SKU: FL-069024
Price: 27.81 EUR
Availability: InStock

FLUIDICS EQUIPMENT Original product

Net price (excl. VAT)

€27.81

Item FL-069024

Manufacturer no. FK M5

Personal expert advice

Brand new Specialist dealer since 2009 Original product Worldwide shipping

Product data

Manufacturer no.FK M5

EAN4050571299330

Customs tariff number84129080

ConditionNew

Artikel

FL-069024

Frequently Bought Together

This Item: Flexible coupling, for piston rod thread M 5, zinc-plated steel
€27.81
Rod end, for piston rod thread M 6, zinc-plated steel, dimension D 6 mm
€15.41
Rod end, for piston rod thread M 20, zinc-plated steel, dimension D 20 mm
€34.85

Total price

Details

The flexible coupling compensates an offset between piston rod and load. It is supplied with 38.5 mm for dimension D and 13.5 mm for dimension B. The article is made of zinc-plated steel.

Benefits

Fits the piston rod thread M 5.
Material zinc-plated steel for piston rod thread M 5.
Dimension D comes to 38.5 mm.
Dimension B comes to 13.5 mm.
A radial play of 0.5 mm takes up the offset.

Technical data

Material	zinc-plated steel
For piston rod thread A	M 5
Dimension B [mm]	13.5
Dimension D [mm]	38.5
Width across flats SW1 [mm]	7
Width across flats SW2 [mm]	13
Radial play [mm]	0.5

Applications

In feed and clamping equipment the flexible coupling sits on thread M 5.

Information

More Information
Hersteller-Nr	FK M5
Manufacturer	Fluidics equipment
EAN	4050571299330
Weight	0.020000
Zolltarifnummer	84129080
GPSR Herstellerdaten	A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment
Artikel-Authentizität	Original product
Artikelzustand	New
Position sensing	No
