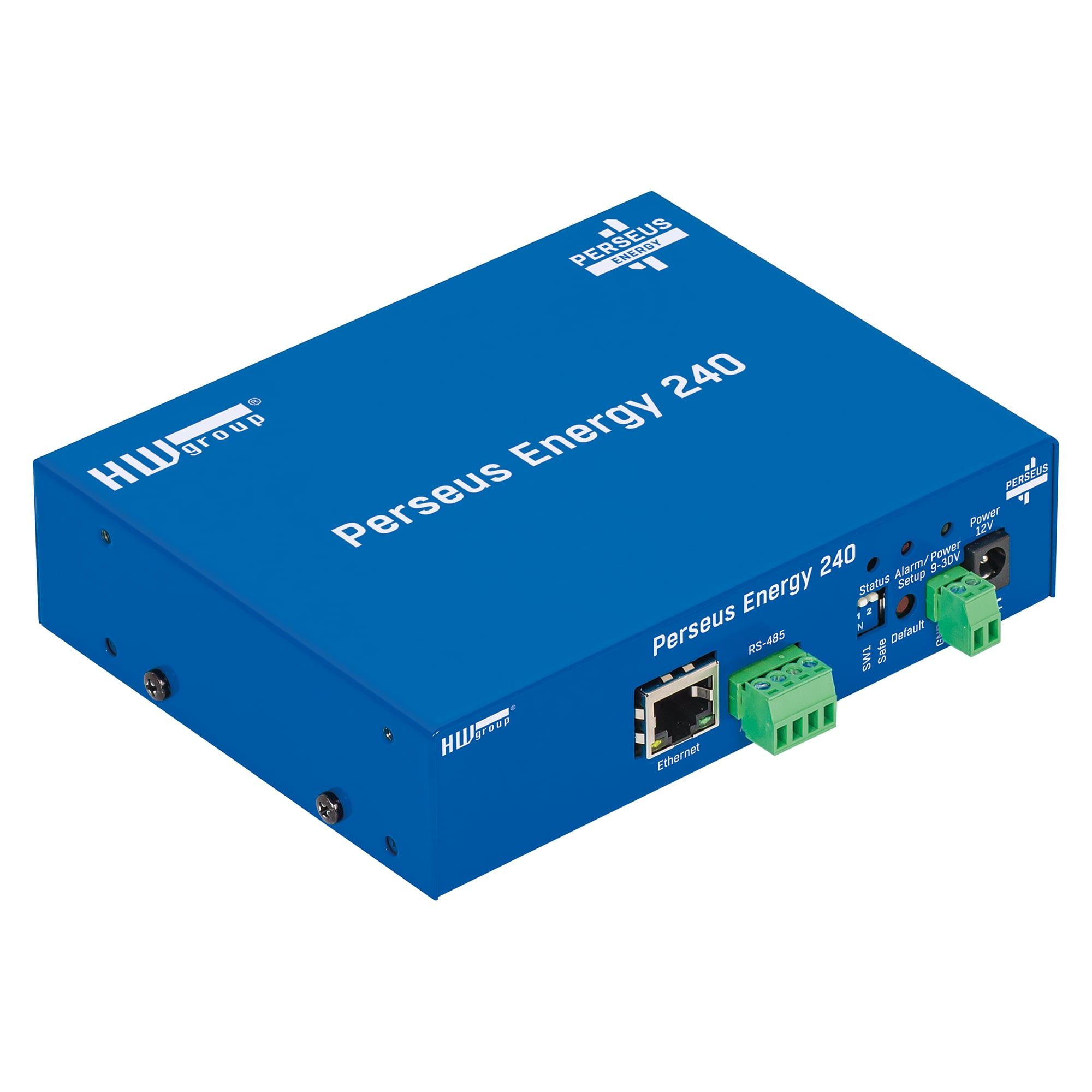

Energy metering gateway Perseus Energy 240 set with 12 V adapter, RS-485 Modbus/RTU to Modbus/TCP - HW group 600870

Plenty of power meters, UPS systems and air conditioning units only speak Modbus/RTU. The Perseus Energy 240 set with its 12 V adapter gets that data onto the network without extra parts, handling up to 100 meters with 1000 variables readable over Modbus/TCP, SNMP, MQTT or XML.

Benefits

• Complete set: gateway plus a 12 V, 1.5 A universal power adapter that fits the 9-30 V DC input range.
• Protocol conversion: works as a Modbus/RTU (RS-485) to Modbus/TCP gateway and as a Modbus/RTU to MQTT or SNMP converter.
• LAN data too: the Meters API also collects values from other network devices via SNMP, Modbus/TCP, MQTT and HWg XML.
• On-device logic: local alarms, conditions and actions, Lua scripts and scheduler, with alerts by email or SNMP Trap.
• Metal housing: gateway operating range -30 to +85 °C, IP40.

Applications

• Modbus gateway in server rooms or technical rooms for power meters and UPS
• Connecting air conditioning and cooling units with a Modbus/RTU interface to NMS or SCADA
• Data concentrator for all meters at a remote site
• Telecom cabinets and base transceiver stations
• Warehouses, pharmaceutical storage and greenhouses

Compatibility

• Modbus/RTU devices from HW group and third parties on RS-485
• Other HW group devices on the LAN via XML, for example STE2 R2
• SensDesk Technology portals, HWg Monitor app
