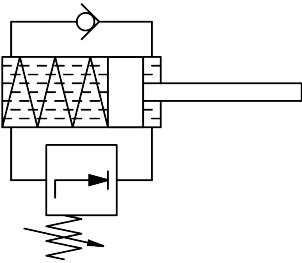

Shock absorber DYSR-8-8-Y5 - Festo 1138641
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Size | 8 |
|---|---|
| Stroke | 8 mm |
| Cushioning | Adjustable |
| Mounting position | Any |
| Position detection | None |
| Max. impact speed | 3 m/s |
| Reset time at room temperature | 0.2 s |
| Reset time at min. ambient temperature | 3 s |
| Mode of operation | Pushing, Single-acting |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10 ... 80 °C |
| Cushioning length | 8 mm |
| Max. stop force | 400 N |
| Max. energy consumption per stroke | 4 J |
| Max. energy consumption per hour | 24000 J |
| Max. residual energy | 0.01 J |
| Reset force | 1.8 N |
| Min. insertion force | 18 N |
| Product weight | 60 g |
| Load range | 40 kg |
| Type of mounting | Via lock nut |
| Note on materials | RoHS compliant |
| Material seals | NBR |
| Material housing | High-alloy steel |
| Material piston rod | High-alloy steel |
| Weight | 0.06 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DYSR-8-8-Y5 |
| EAN | 4052568227319 |
| Zolltarifnummer | 84879059 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
