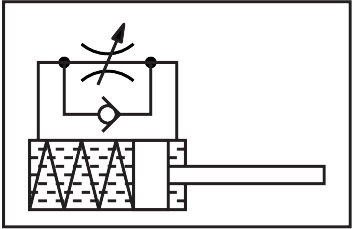

Shock absorber, self-adjusting, size 2, stroke 4 mm, 0.1 J per stroke DYSS-G8-2-4-Y1F - Festo 8073911

Where slides, grippers or workpiece carriers would otherwise run unbraked into the end position, the DYSS-G8-2-4-Y1F converts up to 0.1 J per stroke into heat. No adjustment is needed on the DYSS in size 2 because the cushioning adapts itself to the load.

Benefits

• Energy absorption up to 0.1 J per stroke and 270 J per hour
• Impact speed up to 0.5 m/s, mass range up to 0.8 kg
• Stop force up to 60 N, residual energy max. 0.003 J
• Return time 0.5 s, return force 0.7 N
• Housing in high-alloy steel, CRC 2

Applications

The absorber sits at end stops of linear and swivel motions and protects both the mechanism and the workpiece. The DYSS-G8-2-4-Y1F is rated for -10 to 70 °C ambient temperature, any mounting position.
