Shock absorber, adjustable, size 16, stroke 20 mm, 32 J per stroke DYSR-16-20-Y5 - Festo 1138644

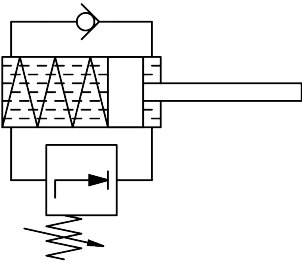

Where slides, grippers or workpiece carriers would otherwise run unbraked into the end position, the DYSR-16-20-Y5 converts up to 32 J per stroke into heat. The cushioning of the DYSR-16-20-Y5 is adjustable and is matched to the mass and impact speed of the application.

Benefits

• Energy absorption up to 32 J per stroke and 100000 J per hour
• Impact speed up to 3 m/s, mass range up to 160 kg
• Stop force up to 1600 N, residual energy max. 0.16 J
• Return time 0.3 s, return force 5.4 N
• Mounting with lock nut, size 16
• Housing in galvanised steel, CRC 1

Applications

Typical locations are end positions of slides, cylinders and handling axes as well as stops in conveyor systems. The DYSR-16-20-Y5 is rated for -10 to 80 °C ambient temperature, any mounting position.
