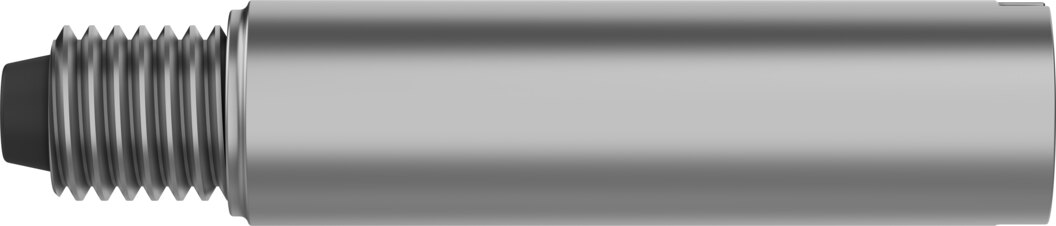

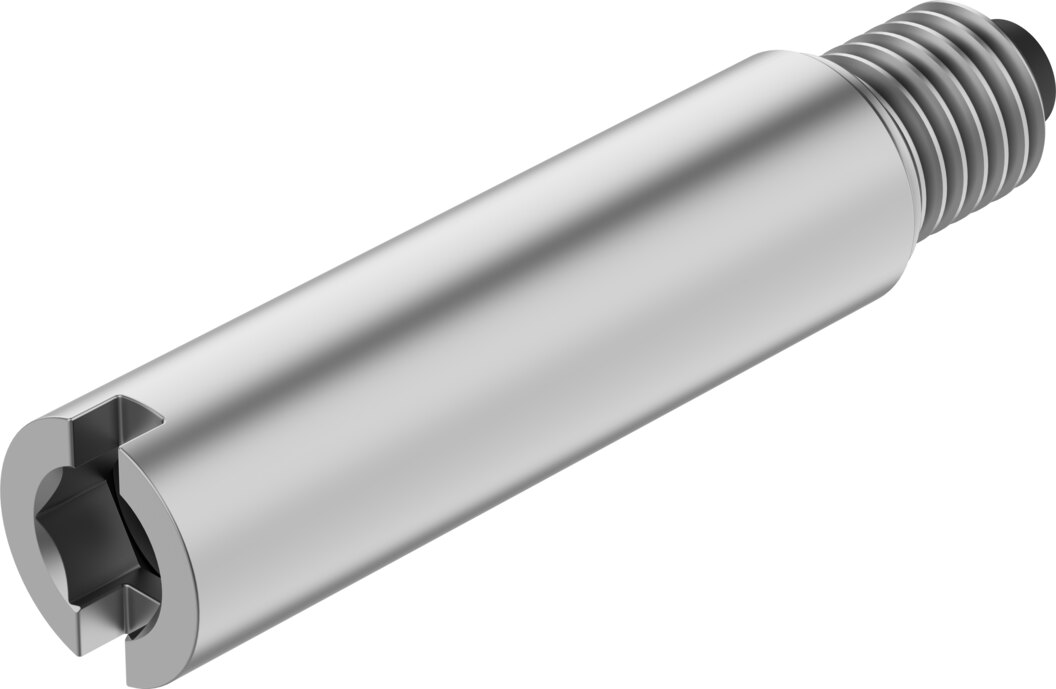

Shock absorber, elastic, without fixed stop, thread M14, stroke 1.2 mm, 0.45 J per stroke DYEF-G8-M14-Y1-F1A - Festo 8132356

With 0.45 J energy absorption per stroke, the DYEF in thread M14 catches moving masses at the end of stroke, impact speed up to 0.8 m/s. Without a metal fixed stop, the elastomer of the DYEF-G8-M14-Y1-F1A cushions the impact over 1.2 mm.

Benefits

• Energy absorption up to 0.45 J per stroke
• Impact speed up to 0.8 m/s
• Mounting via thread M14, tightening torque max. 8 Nm
• Housing in high-alloy steel, CRC 2

Applications

The DYEF is used on linear axes, rotary actuators, grippers and stops where masses should come to rest at the end of stroke without rebound. The DYEF-G8-M14-Y1-F1A is rated for -10 to 60 °C ambient temperature, any mounting position.
