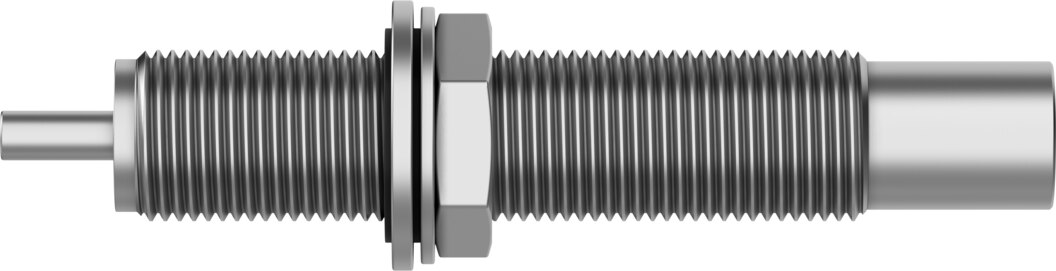

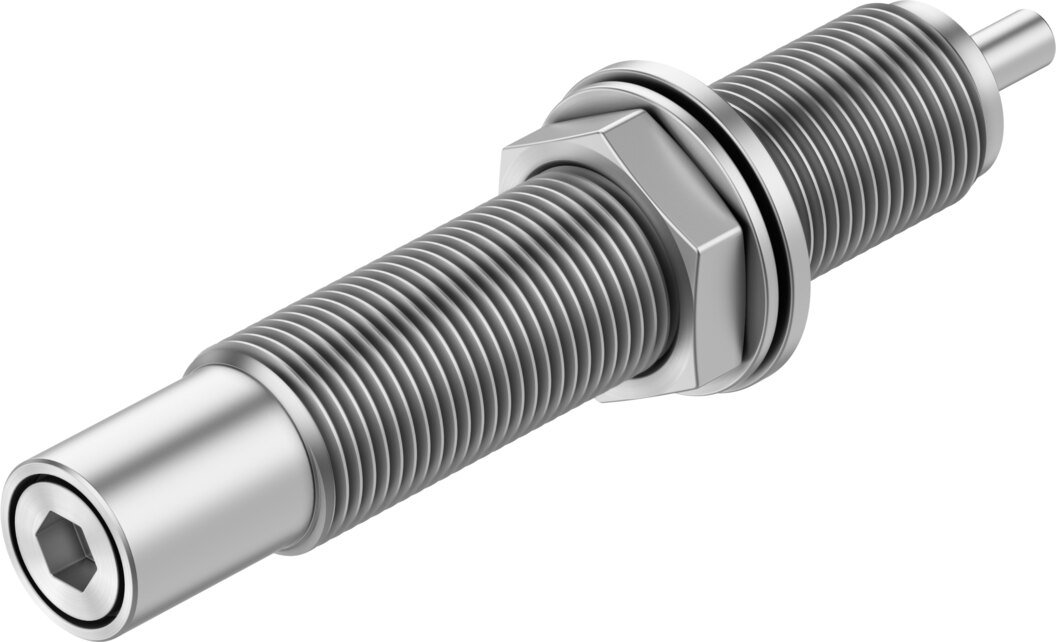

Shock absorber, self-adjusting, size 8, stroke 8 mm, 4.8 J per stroke DYSD-Q13-8-8-Y1F-Y9 - Festo 8199041

Where slides, grippers or workpiece carriers would otherwise run unbraked into the end position, the DYSD-Q13-8-8-Y1F-Y9 converts up to 4.8 J per stroke into heat. The self-adjusting cushioning of the DYSD-Q13-8-8-Y1F-Y9 adapts to changing masses and speeds without readjustment.

Benefits

• Energy absorption up to 4.8 J per stroke and 11520 J per hour
• Impact speed up to 0.5 m/s, mass range up to 38.4 kg
• Stop force up to 420 N
• Return time 0.2 s, return force 9 N
• Mounting with lock nut, tightening torque max. 5 Nm
• Suitable for battery production with reduced Cu/Zn/Ni content (F1a), CRC 2

Applications

The absorber sits at end stops of linear and swivel motions and protects both the mechanism and the workpiece. The DYSD-Q13-8-8-Y1F-Y9 is rated for -10 to 60 °C ambient temperature, any mounting position.
