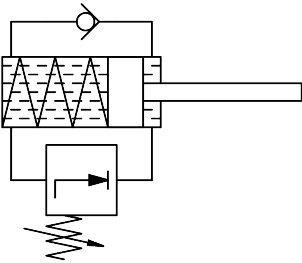

Shock absorber DYSR-12-12-Y5 - Festo 1138642
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Size | 12 |
|---|---|
| Stroke | 12 mm |
| Cushioning | Adjustable |
| Mounting position | Any |
| Position detection | None |
| Max. impact speed | 3 m/s |
| Reset time at room temperature | 0.2 s |
| Reset time at min. ambient temperature | 1 s |
| Mode of operation | Pushing, Single-acting |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10 ... 80 °C |
| Cushioning length | 12 mm |
| Max. stop force | 900 N |
| Max. energy consumption per stroke | 10.8 J |
| Max. energy consumption per hour | 60000 J |
| Max. residual energy | 0.05 J |
| Reset force | 4.5 N |
| Min. insertion force | 38 N |
| Product weight | 105 g |
| Load range | 90 kg |
| Type of mounting | Via lock nut |
| Note on materials | RoHS compliant |
| Material seals | NBR |
| Material housing | Galvanised steel |
| Material piston rod | High-alloy steel |
| Weight | 0.1 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DYSR-12-12-Y5 |
| EAN | 4052568227326 |
| Zolltarifnummer | 84879059 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
