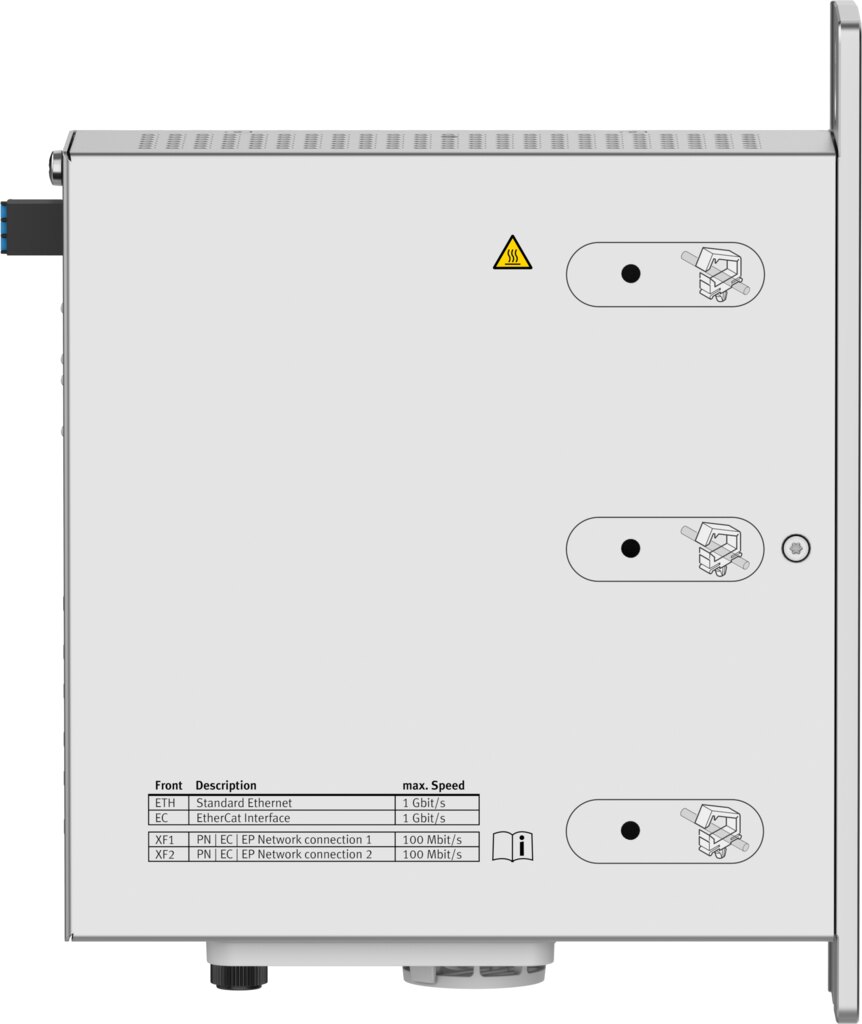

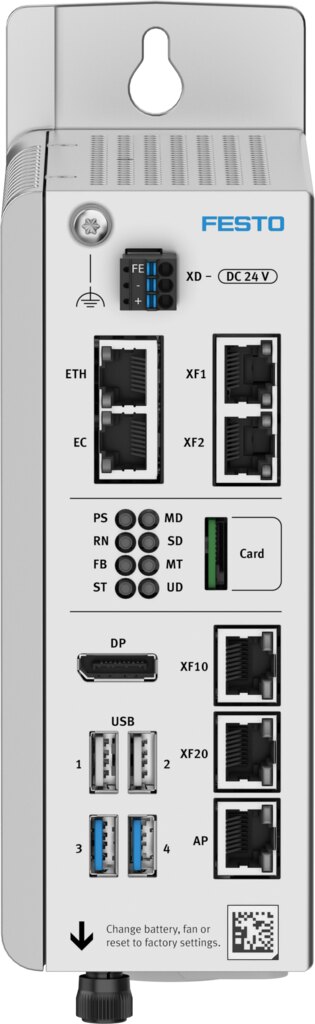

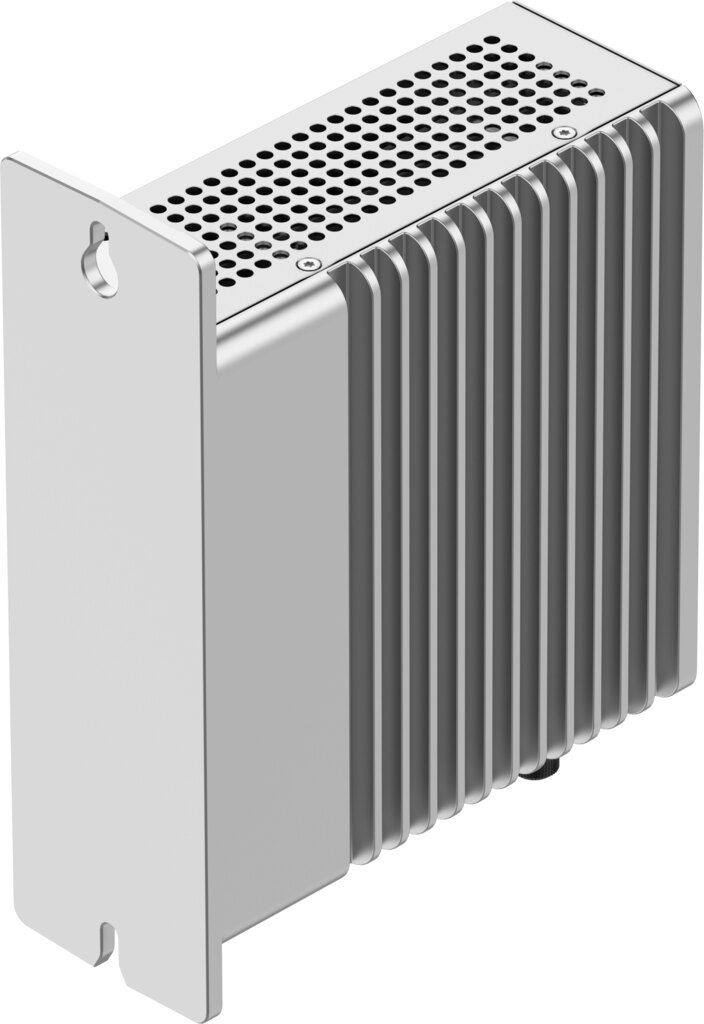

Control unit EtherCAT IP20 CEPE-H8GB-128GB-C1 - Festo 8165400
Key data of the Festo CEPE-H8GB-128GB-C1 (control unit): fieldbus EtherCAT, CPU Dual core 2.2 GHz, operating voltage 20.4 to 30 V DC. The control unit handles sequence and communication in machines and systems.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The CEPE-H8GB-128GB-C1 belongs to the Festo CEPE series. The control unit handles sequence and communication in machines and systems.
Benefits
- Fieldbus EtherCAT
- CPU Dual core 2.2 GHz
- Operating voltage 20.4 to 30 V DC
- Degree of protection IP20
- Ambient temperature 0 to 50 °C
- Dimensions 69 mm x 174 mm x 222 mm
Applications
Used in automation solutions based on the Festo CEPE series. Ambient temperature 0 to 50 °C, protection IP20.
Technical data
| Feature | Value |
|---|---|
| Type | CEPE-H8GB-128GB-C1 |
| Festo part number | 8165400 |
| Dimensions (W x L x H) | 69 mm x 174 mm x 222 mm |
| Type of mounting | Screw-clamped |
| Mounting position | Vertical |
| Ambient temperature | 0 to 50 °C |
| Note on ambient temperature | Note ambient temperature derating to IEC 61131-2:2018 |
| Storage temperature | -20 to 70 °C |
| Relative air humidity | 95%, Non-condensing |
| Nominal altitude of use | ≤ 2000 m ASL (above 79.5 kPa) |
| Maximum installation height | 3000 m |
| Note on max installation height | below 3000 m ASL (above 70 kPa) |
| Degree of protection | IP20 |
| Corrosion resistance class CRC | 0 - no corrosion stress |
| Vibration resistance | Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 |
| Protection against direct and indirect contact | PELV |
| LABS (PWIS) conformity | VDMA24364 zone III |
| CE mark (see declaration of conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| KC mark | KC-EMV |
| Approval | RCM |
| Note on materials | RoHS compliant |
| Material housing | Die-cast aluminium, Makrolon, High-alloy stainless steel |
| Material screws | Nickel-plated steel |
| IP address setting | DHCP, Static via web server |
| Field bus, protocol | EtherCAT |
| Fieldbus interface, function | EtherCAT master |
| Field bus, connection type | Socket |
| Field bus, connection system | RJ45 |
| Fieldbus interface, connection pattern | 00995789 |
| Field bus interface, transmission rate | 100 Mbit/s |
| Ethernet interface, connection type | Socket |
| Ethernet interface, protocol | TCP/IP |
| Ethernet interface, function | Cloud connection, Network |
| Ethernet interface, connection system | RJ45 |
| Ethernet interface, connection pattern | 00995789 |
| Ethernet interface, number of pins/wires | 8 |
| Ethernet, data transmission rate | 1 Gbit/s |
| Ethernet interface, transmission rate | 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s, 1 Gbit/s |
| Additional functions | IO-Link, OPC-UA, MQTT, Licences included:, Festo AX Controls CODESYS PLC Basic |
| CPU data | Dual core 2.2 GHz |
| Storage medium | SSD 128 GB |
| Operational voltage range DC | 20.4 to 30 V |
| Nominal operating voltage DC | 24 V |
| Maximum power supply | 4 A |
| Power failure bridging | 10 ms |
| Reverse polarity protection | Yes |
| Buffering time real-time clock | 520 Wochen |
| Flag | 128 kB remanent data, CODESYS variable concept |
| Weight (price list) | 2.1 kg |
| Weight | 2.1 kg |
| Manufacturer | Festo |
| Hersteller-Nr | CEPE-H8GB-128GB-C1 |
| EAN | 4052568774899 |
| Zolltarifnummer | 85371091 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Operating voltage | 24 V DC |
| Protection rating | IP20 |
| Temperaturbereich | 0-50 °C |
